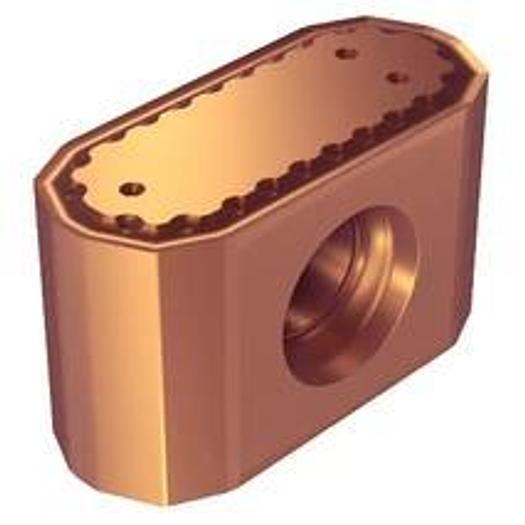

CoroMill 425 indexable inserts

CoroMill® 425 insert for milling

• Application Area: MU
• Coating Process Type: PVD
• Corner chamfer width (CHW): 0.39 mm
• Corner chamfer angle (KCH): 14 deg
• Setting angle, main cutting edge (KRINS): 25 deg
• fz max: 0.28000000000000003 mm
• fz min: 0.02 mm
• fz rec: 0.19 mm
• Manufacturer item number: 425N-1707E-KLW12 1020
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• face cutting radius (BSR): 1250 mm
• Cutting edge width (BS): 10.43 mm
• Cutting length, limited (LE): 2.12 mm
• Cutting length, max. (APMX): 0.92 mm
• Cutting edge height (S): 10 mm
• Cutting plate width (W1): 7.5 mm
• Cutting insert shape (SC): L
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroMill 425 -1707
• Cutting direction (HAND): N
• Grade: 1020
• Chip breaker, manufacturer designation (CBMD): KLW
• Substrate Type: WC
• TMC Order: 1
• vc max: 215 m/min
• vc min: 205 m/min
• vc rec: 210 m/min
• Material classification level 1 (TMC1): K
• Cutting plate width W: 7.5 mm
• Grade: 1020
• All ISO application areas: K
