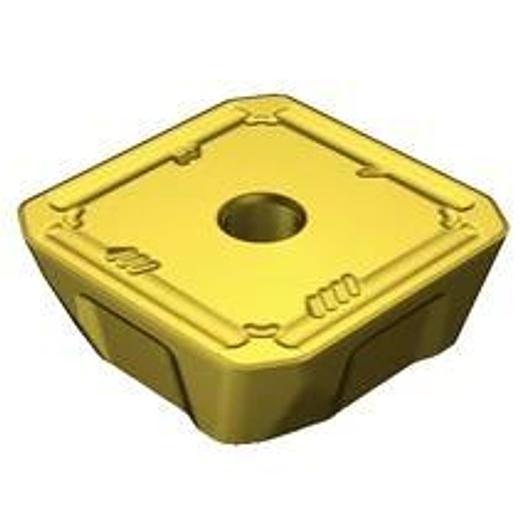

CoroMill 360 indexable inserts

CoroMill® 360 insert for milling

• Application Area: MU
• Coating Process Type: CVD
• Corner radius (RE): 1.7 mm
• Inscribed Circle (IC): 28.47 mm
• Setting angle, main cutting edge (KRINS): 60 deg
• fz max: 0.68999999999999995 mm
• fz min: 0.29999999999999999 mm
• fz rec: 0.46000000000000002 mm
• Manufacturer's ArtNo: 360R-28 07M-MH 2040
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• face cutting radius (BSR): 200 mm
• Cutting edge width (BS): 4.6 mm
• Cutting length, limited (LE): 20 mm
• Cutting length, max. (APMX): 18 mm
• Cutting edge height (S): 7.94 mm
• Cutting insert shape (SC): S
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroMill 360 -2807
• Cutting direction (HAND): R
• Grade: 2040
• Chip breaker, manufacturer's designation (CBMD): MH
• Substrate Type: WC
• TMC Order: 1
• vc max: 140 m/min
• vc min: 65 m/min
• vc rec: 105 m/min
• Material classification level 1 (TMC1): M
• Corner radius R: 1.7 mm
• Grade: 2040
• All ISO application areas: M|K
