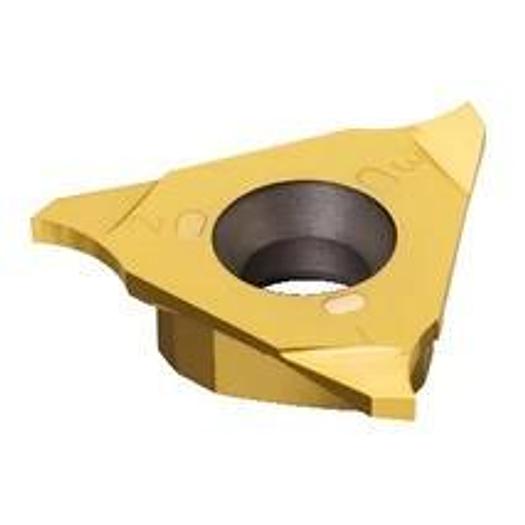

CoroMill 328 indexable insert for retaining ring grooves

CoroMill® 328 insert for slot milling

• Application Area: MU
• Coating Process Type: PVD
• Corner radius, left (REL): 0.15 mm
• Corner radius, right (RER): 0.15 mm
• fz max: 0.14000000000000001 mm
• fz min: 5.0000000000000003E-2 mm
• fz rec: 0.11 mm
• Main clearance angle (AN): 6 deg
• Manufacturer's ArtNo: 328R13-265 02-GM 1025
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Upper corner radius tolerance (RETOLU): 0.05 mm
• Upper cutting width tolerance (CWTOLU): 0.11 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroMill 328 -13
• Cutting direction (HAND): R
• Cutting depth, max.(CDX): 5 mm
• Grade: 1025
• Chipbreaker, manufacturer designation (CBMD): GM
• Grooving width, nominal dimension (CW): 2.65 mm
• Substrate Type: WC
• TMC Order: 1~2~3
• Lower corner radius tolerance (RETOLL): -0.05 mm
• Lower cutting width tolerance (CWTOLL): 0.09 mm
• vc max: 260~270~275 m/min
• vc min: 245~255~260 m/min
• vc rec: 250~260~265 m/min
• Material classification level 1(TMC1): K~M~P
• Grooving width nominal dimension C: 2.65 mm
• Corner radius right RE: 0.15 °
• Grade: 1025
• All ISO application areas: P|M|K|N|S
