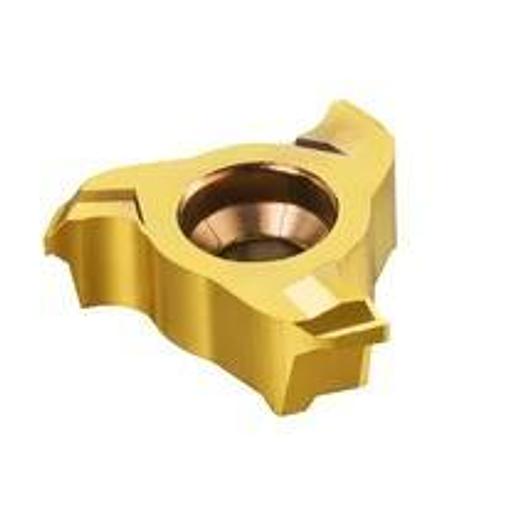

CoroMill 327 indexable insert for retaining ring grooves with chamfer

CoroMill® 327 solid carbide head for grooving

• Adapter interface machine direction (ADINTMS): CoroMill 327 -size 12
• Number of effective cutting edges, circumferential (ZEFP): 3
• Application: M
• Application Area: MS
• Basic Classification (BSG): DIN 471/472
• Coating Process Type: PVD
• DCONMS: 12 mm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 50000 1/min
• Corner radius (RE1): 0.2 mm
• Corner radius (RE2): 0.2 mm
• Functional length (LF): 5.34 mm
• fz max: 0.10000000000000001 mm
• fz min: 4.0000000000000001E-2 mm
• fz rec: 7.0000000000000007E-2 mm
• Manufacturer item number: 327R12-22 41545-GC 1025
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Upper cutting width tolerance (CWTOLU): 0.11 mm
• Cutting diameter (DC): 21.7 mm
• Cutting depth, max.(CDX): 2 mm
• Side rake angle (GAMF): 1.5 deg
• Grade: 1025
• Grooving width, nominal dimension (CW): 4.15 mm
• Substrate Type: WC
• TMC Order: 1~2~3
• Lower cutting width tolerance (CWTOLL): 0.09 mm
• vc max: 250~265~295 m/min
• vc min: 245~255~290 m/min
• vc rec: 250~260~295 m/min
• Material classification level 1(TMC1): K~M~P
• Grooving width nominal dimension C: 4.15 mm
• Cutting depth max CD: 2 mm
• Functional length L: 5.34 mm
• Cutting diameter: 21.7 mm
• All ISO application areas: P|M|K|N|S
