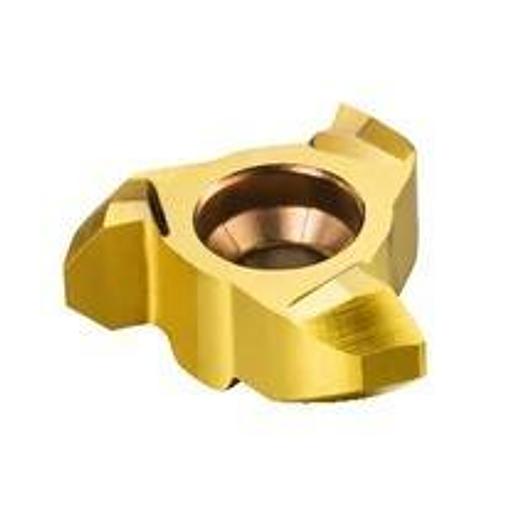

CoroMill 327 indexable insert for chamfer milling

CoroMill® 327 solid carbide head for chamfering

• Adapter interface machine direction (ADINTMS): CoroMill 327 -size 06
• Number of effective cutting edges, circumferential (ZEFP): 3
• APMXPCF: 0.8 mm
• Application: M
• Application Area: MS
• Coating Process Type: PVD
• DCONMS: 6 mm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 80000 1/min
• Setting angle (KAPR): 45 deg
• Functional length (LF): 3.6 mm
• fz max: 7.0000000000000007E-2 mm
• fz min: 0.02 mm
• fz rec: 4.0000000000000001E-2 mm
• Manufacturer's ArtNo: 327R06-12 12045-CH 1025
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Coolant inlet (CNSC): 0: without coolant
• Life Cycle Status (LCS): 20
• Cutting diameter (DC): 10.1 mm
• Cutting diameter, max. (DCX): 11.7 mm
• Cutting length, max. (APMX2): 0.8 mm
• Grade: 1025
• Substrate Type: WC
• TMC Order: 1~2~3
• vc max: 255~265~300 m/min
• vc min: 250~260~295 m/min
• vc rec: 250~265~300 m/min
• Material classification level 1(TMC1): K~M~P
• Cutting diameter max: 11.7 mm
• Mounting diameter: 6 mm
• Functional length L: 3.6 mm
• All ISO application areas: P|M|K|N|S
