CoroMill 326

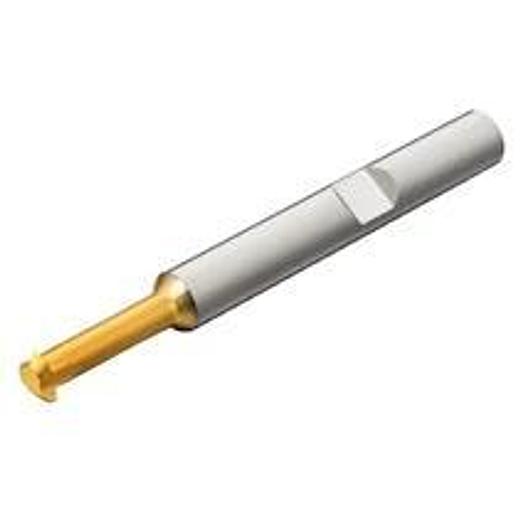

CoroMill® 326 solid carbide end mills for thread milling

• Adapter interface machine direction (ADINTMS): Weldon (DIN6535-HB) -metric: 8
• Number of effective cutting edges, circumferential (ZEFP): 3
• Basic Classification (BSG): COROMANT
• Coating Process Type: PVD
• DCONMS: 8 mm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 80000 1/min
• Functional length (LF): 68 mm
• Number of gears per inch, max. (TPIX): 24
• Number of gears per inch, min. (TPIN): 12
• Thread type (THFT): VP60

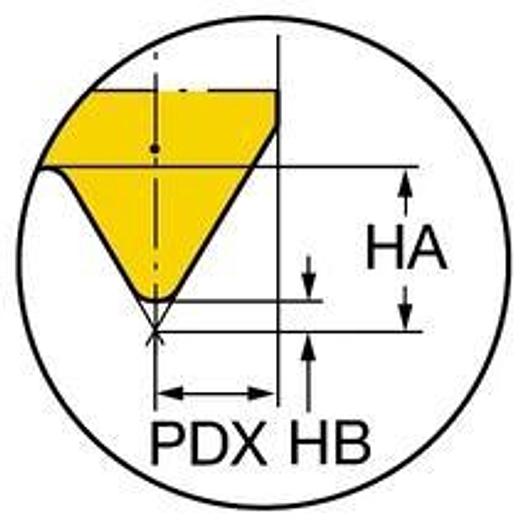

• Thread height, theoretical (HA): 1.31 mm
• Thread height difference (HB): 0.12 mm

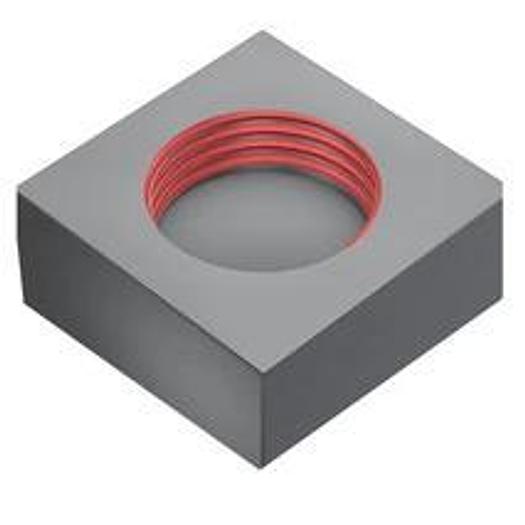

• Thread cutting part, application (TTP): INT
• Thread pitch, min.(TPN): 1 mm
• Neck diameter (DN): 5 mm
• Manufacturer item number: 326R08-B25100VM-TH 1025
• Manufacturer: SANDVIK COROMANT
• IC Code: 10050
• ISO Cutting Tool Material: HC
• Body diameter (BD): 5 mm
• cantilever length (LPR): 68 mm
• Coolant inlet (CNSC): 0: without coolant
• Length Body Diameter 1(LB): 32 mm
• Life Cycle Status (LCS): 20
• Usable length (LU): 25 mm
• Cutting diameter (DC): 7.8 mm
• Cutting length, max. (APMX): 2.62 mm
• Grade: 1025
• Substrate Type: WC
• Tolerance shaft diameter (TCDCON): h6
• Usable length: 25 mm
• Body diameter B: 5 mm
• Cutting length: 2.62 mm
• Cutting diameter: 7.8 mm
