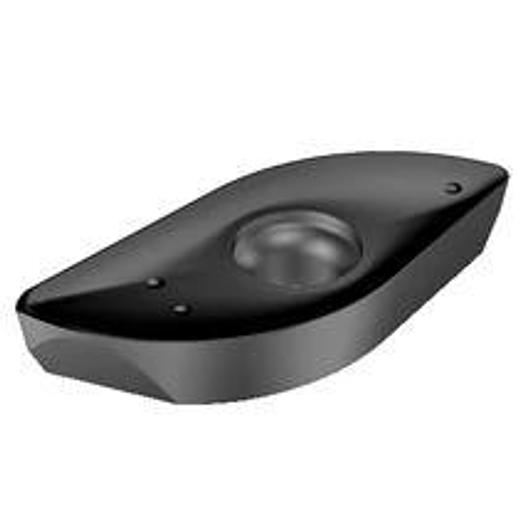

CoroMill 216 milling insert - inch

CoroMill® 216 indexable insert for ball nose end mills

• Application Area: MU
• Coating Process Type: PVD
• fz max: 0.28000000000000003 mm
• fz min: 8.0000000000000002E-2 mm
• fz rec: 0.20999999999999999 mm
• Main cutting edge radius (CEMR): 15.875 mm
• Manufacturer's ArtNo: RA216-32 06 MM 1010
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• Cutting length, limited (LE): 28.2956 mm
• Cutting edge height (S): 6.35 mm
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroMill 216 inch -3206
• Cutting direction (HAND): R
• Grade: 1010
• Chip breaker, manufacturer designation (CBMD): MM
• Substrate Type: WC
• TMC Order: 1
• vc max: 125 m/min
• vc min: 115 m/min
• vc rec: 120 m/min
• Material classification level 1 (TMC1): H
• Grade: 1010
• All ISO application areas: S|H
