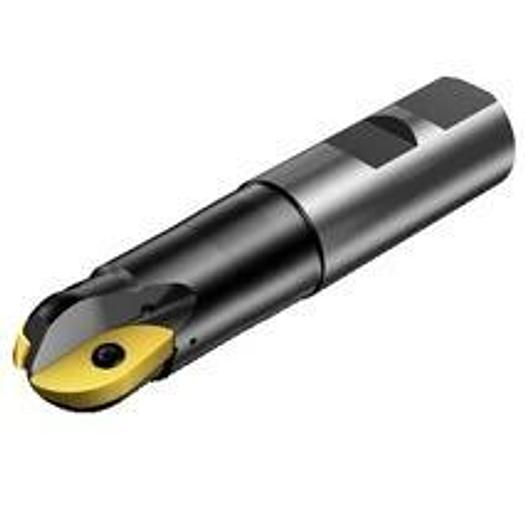

CoroMill 216 Ball Nose End Mills - Metric Version

CoroMill® 216 ball nose end mills

• Adapter interface machine direction (ADINTMS): Weldon (DIN6535-HB) -metric: 50
• Number of cutting parts (CICT): 2
• Number of effective cutting edges, circumferential (ZEFP): 2
• DCONMS: 50 mm
• Torque (TQ): 10 Nm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 7000 1/min
• Immersion depth, max.(AZ): 25 mm
• Immersion angle, max.(RMPX): 85 deg
• Functional length (LF): 206 mm
• Manufacturer's ArtNo: R216-50B50-125
• Manufacturer: SANDVIK COROMANT
• IC Code: 10000
• Body diameter (BD): 46.4 mm
• Coolant pressure (CP): 10 bar
• Coolant inlet (CNSC): 1: axial concentric entry
• Length Body Diameter 1(LB): 95 mm
• Life Cycle Status (LCS): 20
• Usable length (LU): 125 mm
• Cutting diameter (DC): 50 mm
• Cutting length, max. (APMXEFW): 25 mm
• Cutting length, max. (APMXFFW): 44.6 mm
• Cutting direction (HAND): R
• Part 2 of the cutting part interface identifiers (CUTIN: CoroMill 216 (R216-5007)
• Tool design (BMC): Steel
• Cutting diameter: 50 mm
• Usable length: 125 mm
• Mounting diameter: 50 mm
• Number of effective cutting edges on the circumference: 2
