CoroMill 210 face and plunge milling cutters - metric version

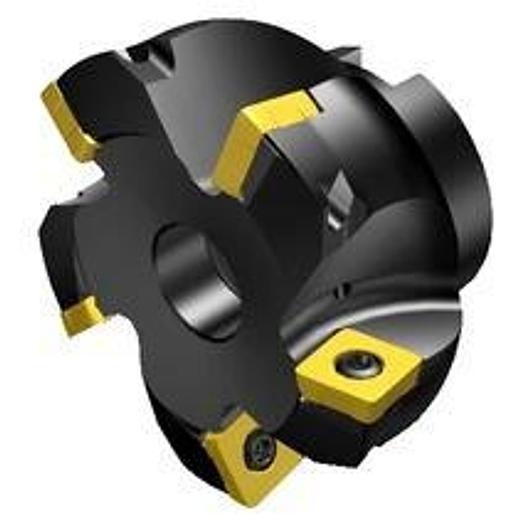

CoroMill® 210 face milling cutter

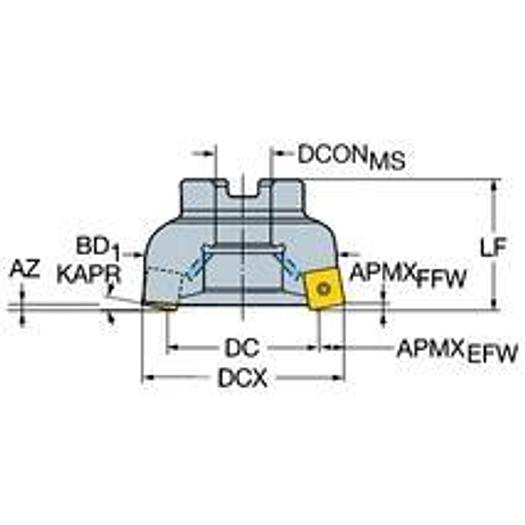

• Adapter interface machine direction (ADINTMS): Arbor -ISO 6462 -B (cutter retaining screw) -metric: 40
• Number of cutting parts (CICT): 8
• Number of effective cutting edges, circumferential (ZEFP): 8
• DCONMS: 40 mm
• Differential division (CPDF): 1
• Torque (TQ): 5 Nm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 10400 1/min
• Setting angle (KAPR): 10 deg
• Immersion depth, max.(AZ): 2 mm
• Immersion angle, max.(RMPX): 1 deg
• Functional length (LF): 63 mm
• Manufacturer's ArtNo: R210-160Q40-14M
• Manufacturer: SANDVIK COROMANT
• IC Code: 10000
• Body diameter (BD): 155.65 mm
• Coolant pressure (CP): 10 bar
• Coolant inlet (CNSC): 1: axial concentric entry
• Life Cycle Status (LCS): 20
• Cutting diameter (DC): 136 mm
• Cutting diameter, max. (DCX): 160 mm
• Cutting length, max. (APMXEFW): 13 mm
• Cutting length, max. (APMXFFW): 2 mm
• Cutting direction (HAND): R
• Standard Document (STDLET): B
• Standard Number (STDNO): ISO6462
• Part 2 of the cutting part interface identifiers (CUTIN: CoroMill 210 -size 14 (R210-140512M/E-)
• Tool design (BMC): Steel
• Cutting diameter: 136 mm
• Cutting diameter max: 160 mm
• Mounting diameter: 40 mm
• Functional length L: 63 mm
• Number of effective cutting edges on the circumference: 8
