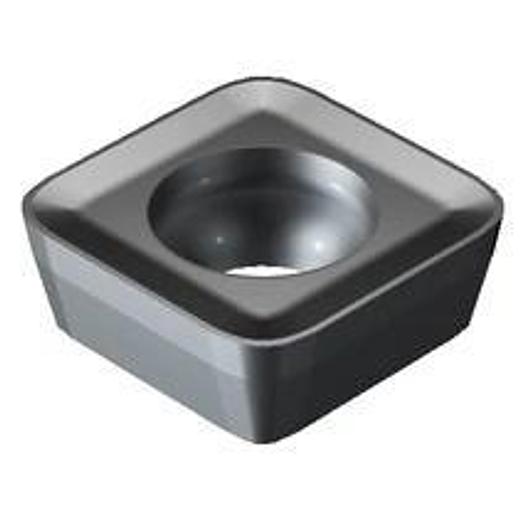

CoroMill 210 milling insert

CoroMill® 210 insert for milling

• Coating Process Type: PVD
• Corner Radius Equivalent (REEQ): 3.5 mm
• Corner radius (RE): 1.4 mm
• Inscribed Circle (IC): 14.6 mm
• Setting angle, main cutting edge (KRINS): 10 deg
• Manufacturer's ArtNo: R210-14 05 14E-PM 1010
• Manufacturer: SANDVIK COROMANT
• IC Code: 18000
• ISO Cutting Tool Material: HC
• Life Cycle Status (LCS): 20
• face radius (BSR): 50 mm
• Cutting edge width (BS): 0.71 mm
• Cutting length, limited (LE): 10.83 mm
• Cutting length, max. (APMX): 2 mm
• Cutting edge height (S): 5.26 mm
• Cutting insert shape (SC): S
• Cutting insert size and shape (CUTINT_SIZESHAPE): CoroMill 210 -1405 s=5.26
• Cutting direction (HAND): N
• Grade: 1010
• Chip breaker, manufacturer designation (CBMD): PM
• Substrate Type: WC
• Corner radius R: 1.4 mm
• Grade: 1010
• All ISO application areas: P|K
