Silent Tools

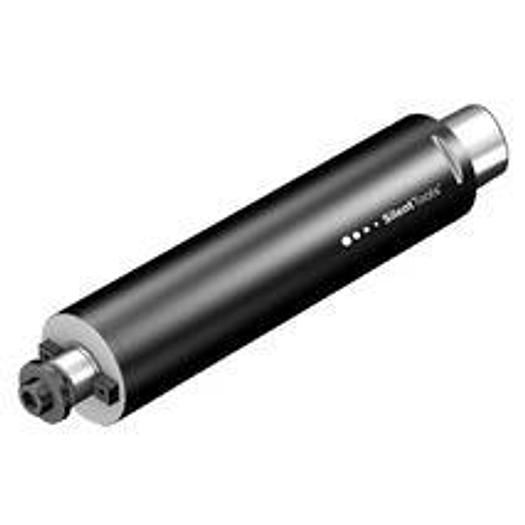

Coromant Capto® vibration-damped adapter on milling arbor

• Adapter interface machine direction (ADINTMS): Coromant Capto (bolt and segment clamping) -size C6
• DCONMS: 63 mm
• DCONWS: 27 mm
• DFC: 44 mm
• Torque (TQ): 45 Nm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 5000 1/min
• Functional length (LF): 310 mm
• Manufacturer's ArtNo: C6-Q27D-063-310
• Manufacturer: SANDVIK COROMANT
• IC Code: 19000
• Body diameter (BD): 63 mm
• Coolant pressure (CP): 70 bar
• Coolant outlet (CXSC): 4: axial concentric on circle
• Coolant inlet (CNSC): 3: axial concentric and radial entry
• Length Body Diameter 1(LB): 310 mm
• Life Cycle Status (LCS): 20
• Axial runout adjustment (ADINTWS): Arbor -ISO 6462 -A/B (center bolt/washer) -metric: 27
• Standard number(STDNO): ISO26623-1
• Vibration damping (DPC): 1
• Tool design (BMC): Steel
• Adapter interface machine direction ADINTM: Coromant Capto (bolt and segment clamping) -size C6
• Mounting diameter: 63 mm
• Functional length L: 310 mm
• Mounting diameter DCONWS: 27 mm
• Axial runout adjustment ADINTW: Arbor -ISO 6462 -A/B (center bolt/washer) -metric: 27
