clamping units

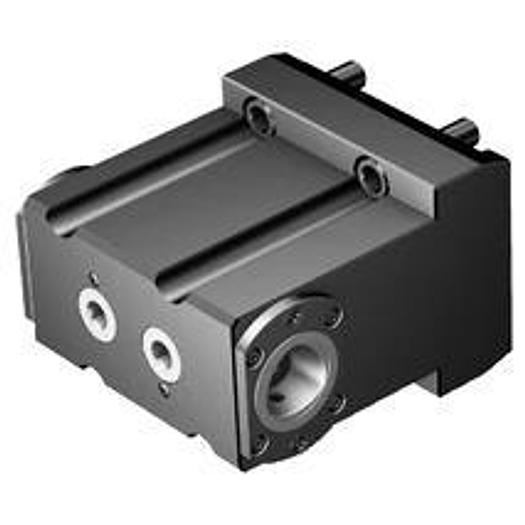

Manual clamping unit for Okuma machines

• Adapter interface machine direction(ADINTMS): Okuma non-driven turret interface -size OK60A
• DCONWS: 40 mm
• DFC: 28 mm
• Torque (TQ): 50 Nm
• Functional width (WF): 17.5 mm
• Functional length (LF): 90 mm
• Overall width (OAW): 135.5 mm
• Total height (OAH): 95 mm
• Manufacturer's ArtNo: C4-TLI-OK60A-DT
• Manufacturer: SANDVIK COROMANT
• IC Code: 19000
• Body angle, workpiece side (BAWS): 90 deg
• cantilever length (LPR): 119 mm
• Coolant pressure (CP): 80 bar
• Coolant outlet (CXSC): 2: radial exit
• Coolant inlet (CNSC): 7: decentral over flange and axial
• Life Cycle Status (LCS): 20
• Facing adjustment (ADINTWS): Coromant Capto (segment clamping) -size C4
• Cutting direction (HAND): L
• Adapter interface machine direction ADINTM: Okuma non-driven turret interface -size OK60A
• Total width OA: 135.5 mm
• Total height OA: 95 mm
