clamping units

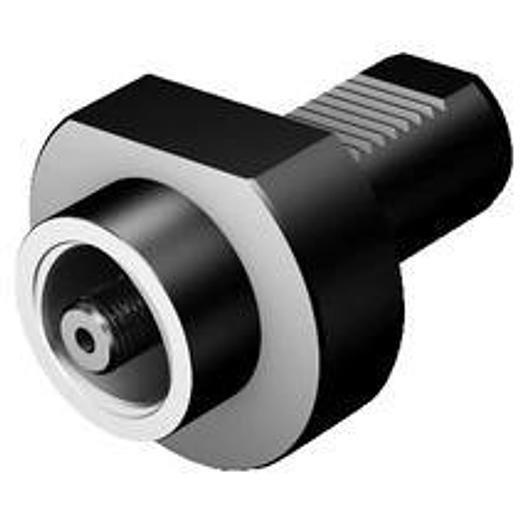

VDI on Coromant Capto® clamping unit

• Adapter interface machine direction (ADINTMS): VDI machine interface -size 40
• DCONMS: 40 mm
• DCONWS: 50 mm
• DFC: 35 mm
• Torque (TQ): 70 Nm
• Functional length (LF): 45 mm
• Overall width (OAW): 83 mm
• Total height (OAH): 74 mm
• Manufacturer's ArtNo: C5-NC3000-V40-045
• Manufacturer: SANDVIK COROMANT
• IC Code: 19000
• Body diameter (BD): 50 mm
• Coolant pressure (CP): 80 bar
• Coolant outlet (CXSC): 1: axial concentric exit
• Coolant inlet (CNSC): 7: decentral over flange and axial
• Length Body Diameter 1(LB): 20 mm
• Life Cycle Status (LCS): 20
• Maximum cantilever length (OHX): 45 mm
• Facing adjustment (ADINTWS): Coromant Capto (bolt clamping) -size C5
• Cutting direction (HAND): R
• Tool design (BMC): Steel
• Axial runout setting ADINTW: Coromant Capto (bolt clamping) -size C5
• Adapter interface machine direction ADINTM: VDI machine interface -size 40
• Functional length L: 45 mm
• Length Body Diameter 1 LB: 20 ​​mm
