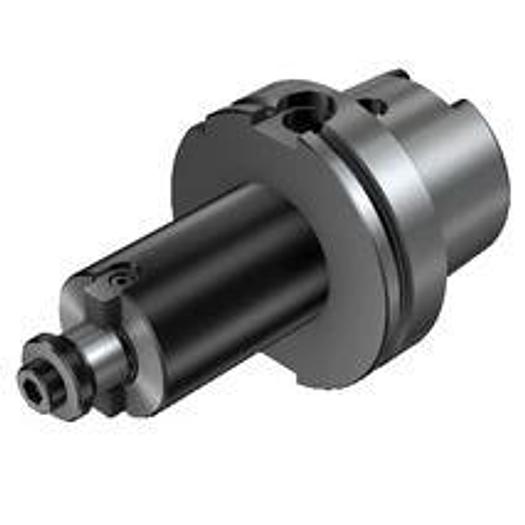

HSK tool holder for face and end mills - metric version

SANDVIK one-piece HSK milling arbor

• Adapter interface machine direction (ADINTMS): HSK -A -size 100
• Balanced version (BBD): 1
• DCONMS: 100 mm
• DCONWS: 40 mm
• DFC: 75,013 mm
• Torque (TQ): 300 Nm
• Functional length (LF): 100 mm
• Manufacturer item number: 392.41005-100 40 100M
• Manufacturer: SANDVIK COROMANT
• IC Code: 19000
• Body diameter (BD1): 87 mm
• Body diameter (BD2): 100 mm
• Coolant outlet (CXSC): 1: axial concentric exit
• Coolant inlet (CNSC): 1: axial concentric entry
• Length Body Diameter 1(LB1): 71 mm
• Length Body Diameter 1(LB2): 100 mm
• Life Cycle Status (LCS): 20
• Facing adjustment (ADINTWS): Arbor -ISO 6462 -A/B/C (4 bolts) -metric: 40S
• Standard Document (STDLET): A
• Standard number(STDNO): ISO12164-1
• Tool design (BMC): Steel
• Axial runout setting ADINTW: Arbor -ISO 6462 -A/B/C (4 bolts) -metric: 40S
• Adapter interface machine direction ADINTM: HSK -A -size 100
• Functional length L: 100 mm
