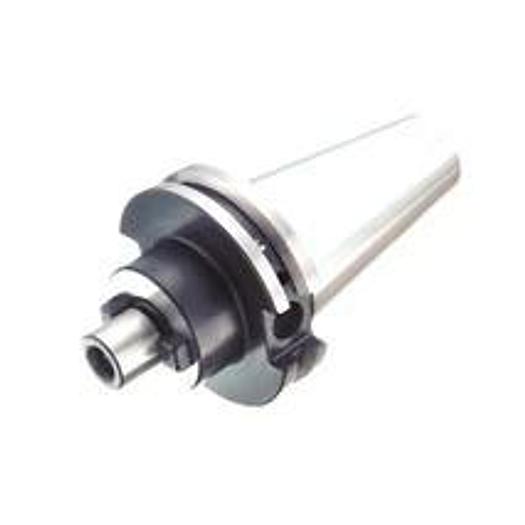

inch version

CAT-V for milling cutter arbor holder

• Adapter interface machine direction (ADINTMS): CAT-V -AD/B central/flange coolant - CAT-V40
• Retaining bolt thread size (CRKS): 5/8"-11
• Balanced version (BBD): 1
• DCONWS: 25.4 mm
• DFC: 44.45 mm
• Torque (TQ): 65 Nm
• Speed, max. (-81, -82: Maximum speed)(RPMX): 18000 1/min
• Functional length (LF): 50.8 mm
• Manufacturer's ArtNo: AA3B05-40 25 051
• Manufacturer: SANDVIK COROMANT
• IC Code: 19000
• Body diameter (BD1): 57.15 mm
• Body diameter (BD2): 63.55 mm
• Coolant pressure (CP): 80 bar
• Coolant outlet (CXSC): 1: axial concentric exit
• Coolant inlet (CNSC): 7: decentral over flange and axial
• Length Body Diameter 1(LB1): 31.75 mm
• Length Body Diameter 1(LB2): 50.8 mm
• Life Cycle Status (LCS): 20
• Axial runout adjustment (ADINTWS): Arbor -ISO 6462 -A/B (center bolt/washer) -inch: 1
• Tool design (BMC): Steel
• Axial runout adjustment ADINTW: Arbor -ISO 6462 -A/B (center bolt/washer) -inch: 1
• Adapter interface machine direction ADINTM: CAT-V -AD/B central/flange coolant - CAT-V40
• Functional length L: 50.8 mm
