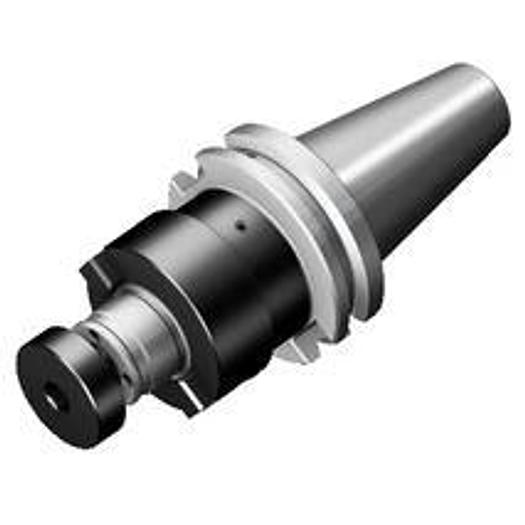

inch version

Adapter BIG-PLUS CAT-V - milling mandrel

• Adapter interface machine direction (ADINTMS): BIG+/CAT-V -AD/B central/flange coolant - CAT-V40
• Retaining bolt thread size (CRKS): 5/8"-11
• Balanced version (BBD): 1
• DCONWS: 25.4 mm
• DFC: 44.45 mm
• Torque (TQ): 65 Nm
• Functional length (LF): 55 mm
• Manufacturer item number: A392.54505C4025055
• Manufacturer: SANDVIK COROMANT
• IC Code: 19000
• Body diameter (BD1): 50 mm
• Body diameter (BD2): 63.5 mm
• Coolant pressure (CP): 80 bar
• Coolant outlet (CXSC): 4: axial concentric on circle
• Coolant inlet (CNSC): 7: decentral over flange and axial
• Length Body Diameter 1(LB1): 35.9 mm
• Length Body Diameter 1(LB2): 55 mm
• Life Cycle Status (LCS): 20
• Axial runout adjustment (ADINTWS): Arbor -ISO 6462 -A/B (center bolt/washer) -inch: 1
• Tool design (BMC): Steel
• Axial runout adjustment ADINTW: Arbor -ISO 6462 -A/B (center bolt/washer) -inch: 1
• Adapter interface machine direction ADINTM: BIG+/CAT-V -AD/B central/flange coolant - CAT-V40
• Functional length L: 55 mm
