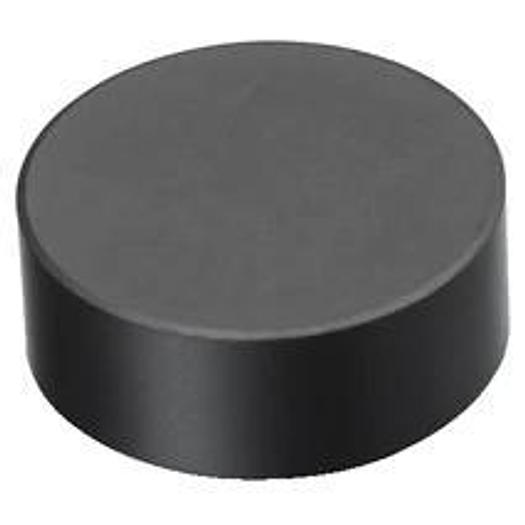

Round Plate

T-Max® insert for turning

• ap max: 3.7999999999999998 mm
• ap min: 1 mm
• ap rec: 1.3999999999999999 mm
• Application Area: TU
• Corner radius (RE): 4.7625 mm
• Inscribed circle (IC): 9,525 mm
• fn max: 0.65000000000000002mm/r
• fn min: 7.0000000000000007E-2 mm/r
• fn rec: 0.46999999999999997 mm/r
• Manufacturer item number: RNGN090300S02520M 7925
• Manufacturer: SANDVIK COROMANT
• IC Code: 18200
• ISO Cutting Tool Material: BH
• Life Cycle Status (LCS): 20
• Cutting edge height (S): 3.175 mm
• Cutting insert shape (SC): R
• Cutting insert size and shape (CUTINT_SIZESHAPE): RN0903
• Cutting direction (HAND): N
• Grade: 7925
• Chipping face width (BN): 0.25 mm
• Chipping face chamfer angle (GB): 20 deg
• Substrate Type: CBN
• TMC Order: 1
• vc max: 1200 m/min
• vc min: 780 m/min
• vc rec: 890 m/min
• Material classification level 1 (TMC1): K
• Corner radius R: 4.7625 mm
• Grade: 7925
• All ISO application areas: K|H
