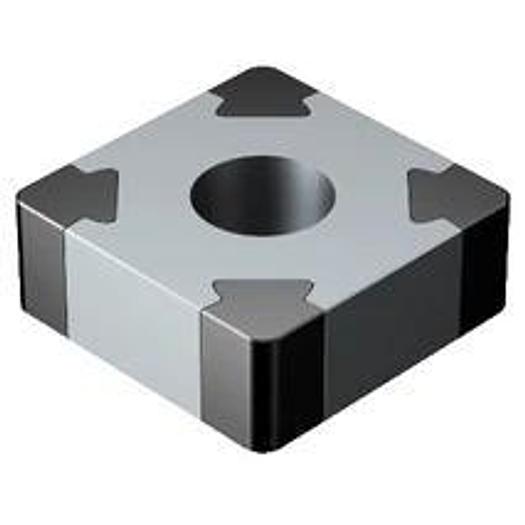

CBN plates with negative basic shape

T-Max® P insert for turning

• ap max: 0.40000000000000002mm
• ap min: 7.0000000000000007E-2mm
• ap rec: 0.20000000000000001mm
• Application Area: TU
• Corner radius (RE): 0.7938 mm
• Inscribed circle (IC): 9,525 mm
• fn max: 0.26000000000000001mm/r
• fn min: 5.0000000000000003E-2 mm/r
• fn rec: 0.16 mm/r
• Manufacturer item number: SNGA090308S01030A 7025
• Manufacturer: SANDVIK COROMANT
• IC Code: 18200
• ISO Cutting Tool Material: BL
• Life Cycle Status (LCS): 20
• Cutting length, limited (LE): 2.2 mm
• Cutting edge height (S): 3.175 mm
• Cutting insert shape (SC): S
• Cutting insert size and shape (CUTINT_SIZESHAPE): SN0903
• Cutting direction (HAND): N
• Grade: 7025
• Chipping face width (BN): 0.1 mm
• Chipping face chamfer angle (GB): 30 deg
• Substrate Type: CBN
• TMC Order: 1
• vc max: 180 m/min
• vc min: 135 m/min
• vc rec: 150 m/min
• Material classification level 1 (TMC1): H
• Corner radius R: 0.7938 mm
• Grade: 7025
• All ISO application areas: K|H
