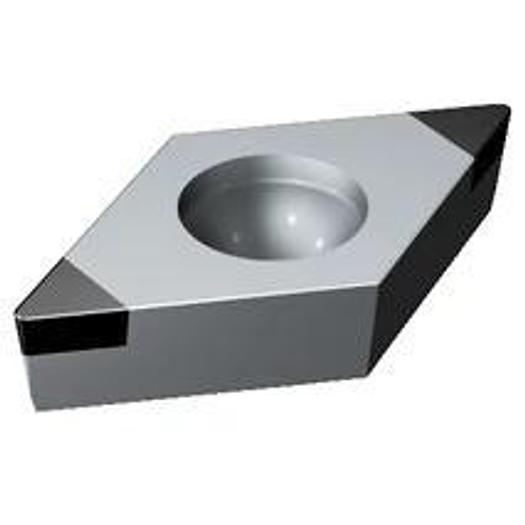

CBN WIPER plates with positive basic shape

SANDVIK T-MAX boron nitride turning plates

• ap max: 0.40000000000000002mm
• ap min: 5.0000000000000003E-2mm
• ap rec: 0.10000000000000001mm
• Application Area: TU
• Corner radius (RE): 0.4 mm
• Inscribed circle (IC): 9,525 mm
• Setting angle, main cutting edge (KRINS): 93 deg
• fn max: 0.25 mm/r
• fn min: 5.0000000000000003E-2 mm/r
• fn rec: 0.14999999999999999 mm/r
• Main clearance angle (AN): 7 deg
• Manufacturer item number: DCGW11T304S01020FWH 7025
• Manufacturer: SANDVIK COROMANT
• IC Code: 18200
• ISO Cutting Tool Material: BL
• Life Cycle Status (LCS): 20
• Plan cutting control element (WEP): 1
• Cutting length, limited (LE): 1.8 mm
• Cutting edge height (S): 3.96875 mm
• Cutting insert shape (SC): D
• Cutting insert size and shape (CUTINT_SIZESHAPE): DC11T3
• Cutting direction (HAND): N
• Grade: 7025
• Chip breaker, manufacturer designation (CBMD): WH
• Chipping face width (BN): 0.1 mm
• Chipping face chamfer angle (GB): 20 deg
• Substrate Type: CBN
• TMC Order: 1
• vc max: 180 m/min
• vc min: 135 m/min
• vc rec: 150 m/min
• Material classification level 1 (TMC1): H
• Corner radius R: 0.4 mm
• Cutting length limited L: 1.8
• Grade: 7025
• Cutting edge height: 3.96875 mm
• All ISO application areas: H
