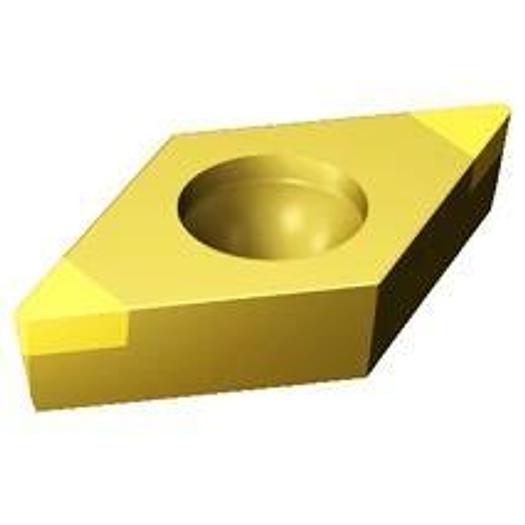

CBN plates with positive basic shape

CoroTurn® 107 turning insert

• ap max: 0.80000000000000004~1.6000000000000001mm
• ap min: 0.14999999999999999~7.0000000000000007E-2mm
• ap rec: 0.20000000000000001~0.40000000000000002 mm
• Application Area: TU
• Coating Process Type: PVD
• Corner radius (RE): 0.7938 mm
• Inscribed circle (IC): 9,525 mm
• fn max: 0.38~0.76000000000000001mm/r
• fn min: 0.13~5.99999999999999998E-2mm/r
• fn rec: 0.19~0.38 mm/r
• Main clearance angle (AN): 7 deg
• Manufacturer item number: DCGW11T308T01020F 7525
• Manufacturer: SANDVIK COROMANT
• IC Code: 18200
• ISO Cutting Tool Material: BC
• Life Cycle Status (LCS): 20
• Cutting length, limited (LE): 3.1 mm
• Cutting edge height (S): 3.96875 mm
• Cutting insert shape (SC): D
• Cutting insert size and shape (CUTINT_SIZESHAPE): DC11T3
• Cutting direction (HAND): N
• Grade: 7525
• Chipping face width (BN): 0.1 mm
• Chipping face chamfer angle (GB): 20 deg
• Substrate Type: CBN
• TMC Order: 1~2
• vc max: 1350~145 m/min
• vc min: 110~820 m/min
• vc rec: 1100~140 m/min
• Material classification level 1(TMC1): H~K
• Corner radius R: 0.7938 mm
• Cutting length limited L: 3.1
• Grade: 7525
• Cutting edge height: 3.96875 mm
• All ISO application areas: K|H
