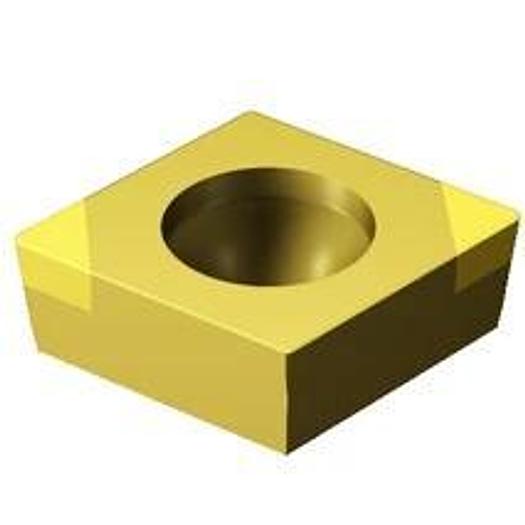

CBN WIPER plates with positive basic shape,

SANDVIK T-Max boron nitride turning plates

ap max: 0.80000000000000004~1.5mm

ap min: 0.14999999999999999~7.0000000000000007E-2mm

ap rec: 0.20000000000000001~0.40000000000000002 mm

Application Area: TU

Coating Process Type: PVD

Corner radius (RE): 0.7938 mm

Inscribed circle (IC): 9,525 mm

fn max: 0.29999999999999999~0.599999999999999998mm/r

fn min: 0.10000000000000001~5.0000000000000003E-2mm/r

fn rec: 0.14999999999999999~0.299999999999999999 mm/r

Main clearance angle (AN): 7 deg

Manufacturer item number: CCGW09T308T01020F 7525

Manufacturer: SANDVIK COROMANT

IC Code: 18200

ISO Cutting Tool Material: BC

Life Cycle Status (LCS): 20

Cutting length, limited (LE): 3 mm

Cutting edge height (S): 3.96875 mm

Cutting insert shape (SC): C

Cutting insert size and shape (CUTINT_SIZESHAPE): CC09T3

Cutting direction (HAND): N

Grade: 7525

Chipping face width (BN): 0.1 mm

Chipping face chamfer angle (GB): 20 deg

Substrate Type: CBN

TMC Order: 1~2

vc max: 1350~145 m/min

vc min: 110~820 m/min

vc rec: 1100~140 m/min

Material classification level 1(TMC1): H~K

Corner radius R: 0.7938 mm

Cutting length limited L: 3

Grade: 7525

Cutting edge height: 3.96875 mm

All ISO application areas: K|H
