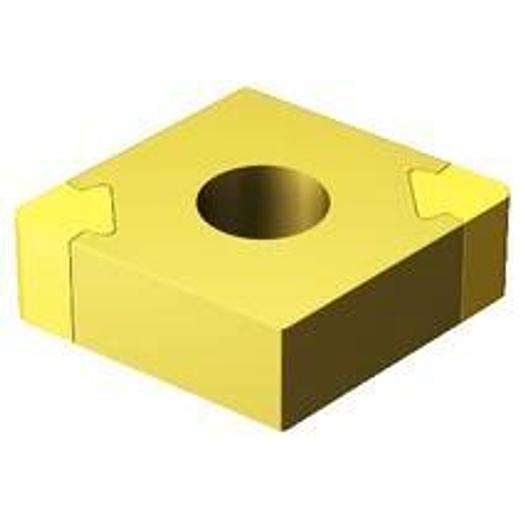

CBN WIPER plates with negative basic shape

T-Max® P insert for turning

ap max: 0.80000000000000004mm

ap min: 7.0000000000000007E-2mm

ap rec: 0.20000000000000001mm

Application Area: TU

Coating Process Type: PVD

Corner radius (RE): 1.1906 mm

Inscribed Circle (IC): 12.7 mm

Setting angle, main cutting edge (KRINS): 95 deg

fn max: 0.40000000000000002mm/r

fn min: 5.0000000000000003E-2 mm/r

fn rec: 0.32000000000000001 mm/r

Manufacturer item number: CNGA120412S01030AWG 7015

Manufacturer: SANDVIK COROMANT

IC Code: 18200

ISO Cutting Tool Material: BC

Life Cycle Status (LCS): 20

Plan cutting control element (WEP): 1

Cutting length, limited (LE): 2.8 mm

Cutting edge height (S): 4.7625 mm

Cutting insert shape (SC): C

Cutting insert size and shape (CUTINT_SIZESHAPE): CN1204

Cutting direction (HAND): N

Grade: 7015

Chip breaker, manufacturer designation (CBMD): WG

Chipping face width (BN): 0.1 mm

Chipping face chamfer angle (GB): 30 deg

Substrate Type: CBN

TMC Order: 1

vc max: 250 m/min

vc min: 130 m/min

vc rec: 145 m/min

Material classification level 1 (TMC1): H

Corner radius R: 1.1906 mm

Cutting length limited L: 2.8

Grade: 7015

Cutting edge height: 4.7625 mm

All ISO application areas: K|H
