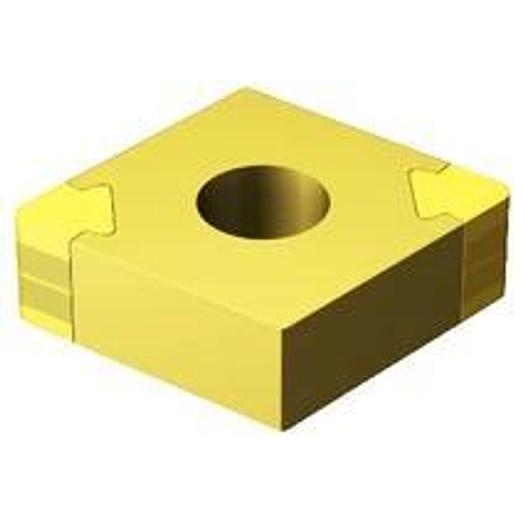

CBN WIPER plates with negative basic shape

T-Max® P insert for turning

• ap max: 0.59999999999999998mm
• ap min: 7.0000000000000007E-2mm
• ap rec: 0.20000000000000001mm
• Application Area: TU
• Coating Process Type: PVD
• Corner radius (RE): 1.2 mm
• Inscribed Circle (IC): 12.7 mm
• Setting angle, main cutting edge (KRINS): 95 deg
• fn max: 0.40000000000000002mm/r
• fn min: 5.0000000000000003E-2 mm/r
• fn rec: 0.32000000000000001 mm/r
• Manufacturer item number: CNGA120412S01520HWH 7115
• Manufacturer: SANDVIK COROMANT
• IC Code: 18200
• ISO Cutting Tool Material: BC
• Life Cycle Status (LCS): 20
• Plan cutting control element (WEP): 1
• Cutting length, limited (LE): 2.4 mm
• Cutting edge height (S): 4.7625 mm
• Cutting insert shape (SC): C
• Cutting insert size and shape (CUTINT_SIZESHAPE): CN1204
• Cutting direction (HAND): N
• Grade: 7115
• Chip breaker, manufacturer designation (CBMD): WH
• Chipping face width (BN): 0.15 mm
• Chipping face chamfer angle (GB): 20 deg
• Substrate Type: CBN
• TMC Order: 1
• vc max: 250 m/min
• vc min: 130 m/min
• vc rec: 145 m/min
• Material classification level 1 (TMC1): H
• Corner radius R: 1.2 mm
• Cutting length limited L: 2.4
• Grade: 7115
• Cutting edge height: 4.7625 mm
• All ISO application areas: H
