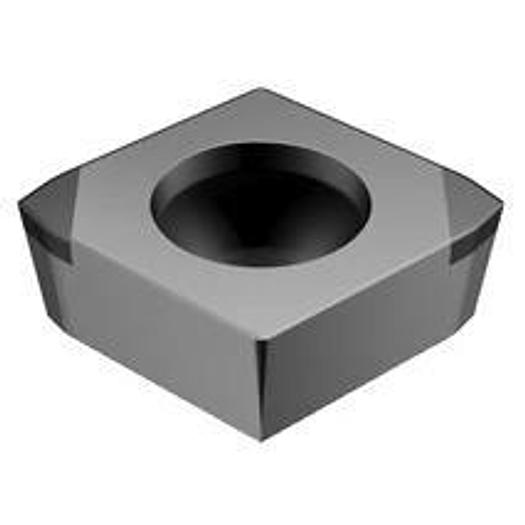

CBN plates with positive basic shape

CoroTurn® 107 turning insert

• ap max: 0.20000000000000001mm
• ap min: 5.0000000000000003E-2mm
• ap rec: 0.12 mm
• Application Area: TU
• Corner chamfer angle (KCH): 14 deg
• Corner Radius Equivalent (REEQ): 1.9 mm
• Inscribed circle (IC): 9,525 mm
• Setting angle, main cutting edge (KRINS): 95 deg
• fn max: 0.40000000000000002mm/r
• fn min: 0.20000000000000001 mm/r
• fn rec: 0.29999999999999999 mm/r
• Main clearance angle (AN): 7 deg
• Manufacturer item number: CCGX09T3L020-15FXA 7025
• Manufacturer: SANDVIK COROMANT
• IC Code: 18200
• ISO Cutting Tool Material: BL
• Life Cycle Status (LCS): 20
• Plan cutting control element (WEP): 1
• Number of cutting edges (CEDC): 2
• Cutting length, limited (LE): 2.3 mm
• Cutting length, max. (APMX): 0.2 mm
• Cutting edge height (S): 3.96875 mm
• Cutting insert shape (SC): C
• Cutting insert size and shape (CUTINT_SIZESHAPE): CC09T3
• Cutting direction (HAND): N
• Grade: 7025
• Chipbreaker, manufacturer designation (CBMD): XA
• Chipping face width (BN): 0.15 mm
• Chipping face chamfer angle (GB): 15 deg
• SSC: 3/8
• Substrate Type: CBN
• TMC Order: 1
• vc max: 140 m/min
• vc min: 115 m/min
• vc rec: 125 m/min
• Material classification level 1 (TMC1): H
• Cutting length limited L: 2.3
• Grade: 7025
• Cutting edge height: 3.96875 mm
• All ISO application areas: H
