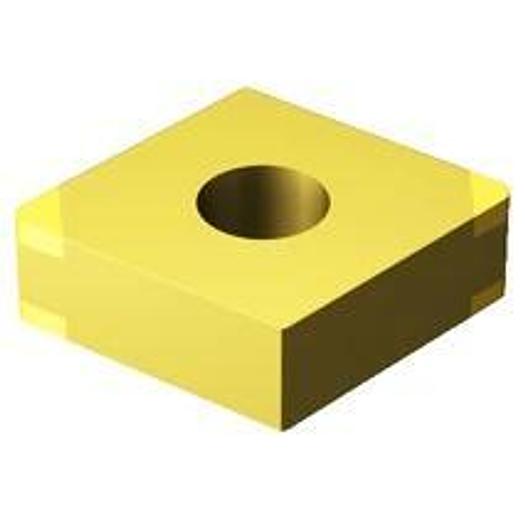

CBN plates with negative basic shape

T-Max® P insert for turning

T-Max® P insert for turning

Technical characteristics:

ap max: 0.80000000000000004mm

ap min: 7.0000000000000007E-2mm

ap rec: 0.20000000000000001mm

Application Area: TU

Coating Process Type: PVD

Corner radius (RE): 0.8 mm

Inscribed Circle (IC): 12.7 mm

Setting angle, main cutting edge (KRINS): 95 deg

fn max: 0.25 mm/r

fn min: 5.0000000000000003E-2 mm/r

fn rec: 0.14999999999999999 mm/r

Manufacturer item number: CNGA120408S02030H 7115

Manufacturer: SANDVIK COROMANT

IC Code: 18200

ISO Cutting Tool Material: BC

Life Cycle Status (LCS): 20

Cutting length, limited (LE): 2.5 mm

Cutting edge height (S): 4.7625 mm

Cutting insert shape (SC): C

Cutting insert size and shape (CUTINT_SIZESHAPE): CN1204

Cutting direction (HAND): N

Grade: 7115

Chipping face width (BN): 0.2 mm

Chipping face chamfer angle (GB): 30 deg

Substrate Type: CBN

TMC Order: 1

vc max: 250 m/min

vc min: 160 m/min

vc rec: 190 m/min

Material classification level 1 (TMC1): H

Corner radius R: 0.8 mm

Cutting length limited L: 2.5

Grade: 7115

Cutting edge height: 4.7625 mm

All ISO application areas: H
