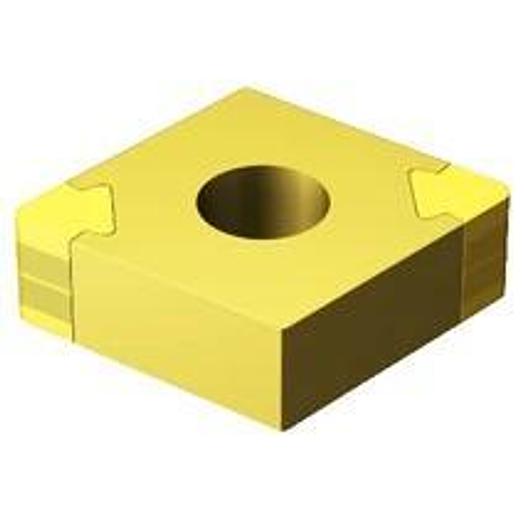

CBN plates with negative basic shape

T-Max® P insert for turning

T-Max® P insert for turning

Technical characteristics:

• ap max: 0.40000000000000002~1.5mm
• ap min: 7.0000000000000007E-2mm
• ap rec: 0.14999999999999999~0.40000000000000002 mm
• Application Area: TU
• Coating Process Type: PVD
• Corner radius (RE): 0.7938 mm
• Inscribed Circle (IC): 12.7 mm
• fn max: 0.23000000000000001~0.51000000000000001 mm/r
• fn min: 5.0000000000000003E-2 mm/r
• fn rec: 0.13~0.29999999999999999mm/r
• Manufacturer item number: CNGA120408T01020B 7525
• Manufacturer: SANDVIK COROMANT
• IC Code: 18200
• ISO Cutting Tool Material: BC
• Life Cycle Status (LCS): 20
• Cutting length, limited (LE): 2.1 mm
• Cutting edge height (S): 4.7625 mm
• Cutting insert shape (SC): C
• Cutting insert size and shape (CUTINT_SIZESHAPE): CN1204
• Cutting direction (HAND): N
• Grade: 7525
• Chipping face width (BN): 0.1 mm
• Chipping face chamfer angle (GB): 20 deg
• Substrate Type: CBN
• TMC Order: 1~2
• vc max: 1400~145 m/min
• vc min: 120~890 m/min
• vc rec: 1100~140 m/min
• Material classification level 1(TMC1): H~K
• Corner radius R: 0.7938 mm
• Cutting length limited L: 2.1
• Grade: 7525
• Cutting edge height: 4.7625 mm
• All ISO application areas: K|H
