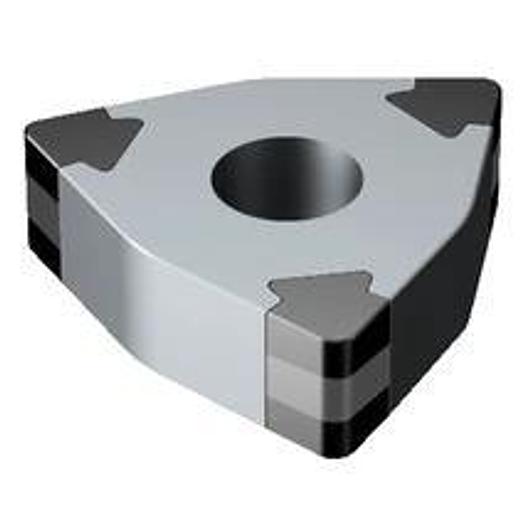

CBN plates with negative basic shape

T-Max® P insert for turning

T-Max® P insert for turning

Technical characteristics:

ap max: 0.40000000000000002mm

ap min: 7.0000000000000007E-2mm

ap rec: 0.20000000000000001mm

Application Area: TU

Corner radius (RE): 0.7938 mm

Inscribed Circle (IC): 12.7 mm

fn max: 0.25 mm/r

fn min: 5.0000000000000003E-2 mm/r

fn rec: 0.14999999999999999 mm/r

Manufacturer item number: WNGA080408S02035A 7025

Manufacturer: SANDVIK COROMANT

IC Code: 18200

ISO Cutting Tool Material: BL

Life Cycle Status (LCS): 20

Cutting length, limited (LE): 2 mm

Cutting edge height (S): 4.7625 mm

Cutting insert shape (SC): W

Cutting insert size and shape (CUTINT_SIZESHAPE): WN0804

Cutting direction (HAND): N

Grade: 7025

Chipping face width (BN): 0.2 mm

Chipping face chamfer angle (GB): 35 deg

Substrate Type: CBN

TMC Order: 1

vc max: 180 m/min

vc min: 135 m/min

vc rec: 150 m/min

Material classification level 1 (TMC1): H

Corner radius R: 0.7938 mm

Cutting edge height: 4.7625 mm

Cutting insert size and shape_CUTINT_SIZESHAP: WN0804

Grade: 7025

All ISO application areas: H
