188001 adjustable

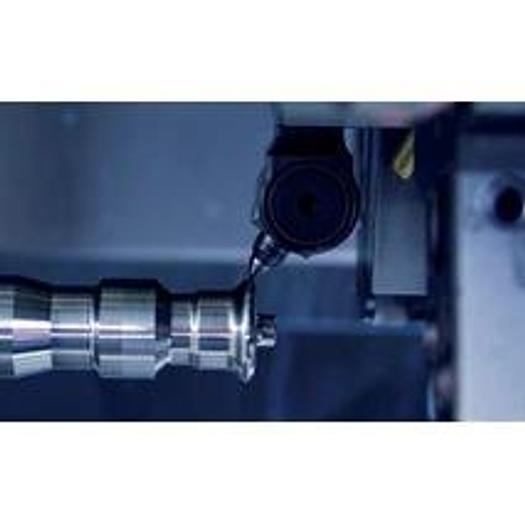

ZEUS smoothing tool, adjustable

- Tool head variably adjustable

- Tool can be used universally

- Swivel range ±90°

- Application up to a collar

- Long service life of the diamond smoothing tip due to eight-fold position change of the tip

Use:

- Smoothing speed up to 200 m/min and 0.2 mm/rev feed

- As an allowance on the workpiece we recommend 0.01 mm (approx. Rz 10) or 0.02 mm (approx. Rz 20)

- the use of cooling lubricant is recommended

Note:

The sets are supplied without a diamond smoothing tip.

Technical characteristics:

• a mm: 10
• b mm: 10
• c mm: 118.5
• d mm: 20
• and mm: 37.5
• f mm: 25
• g mm: 17.5
• Base shaft mm: 10 × 10
• incl. shaft adapter mm: 12 × 12 | 16 × 16
• Tool holder: 520-10
• Shop °+w: 90
• Shop °-w: 90
• x mm: 9.5
