114300 BILZ, countersink HSS type TU

Reverse countersinking system BILZ, countersink HSS type TU

- Flat bayonet for quick and safe manual changing

- Large cutting widths

- Numerous diameter combinations of different countersinks and holders with the same C3 mounting diameter

- Good chip removal

- Guide in the workpiece bore ensures safe machining of difficult workpiece contours

Use:

Manual reverse machining, countersinking, countersinking in depth and drilling.

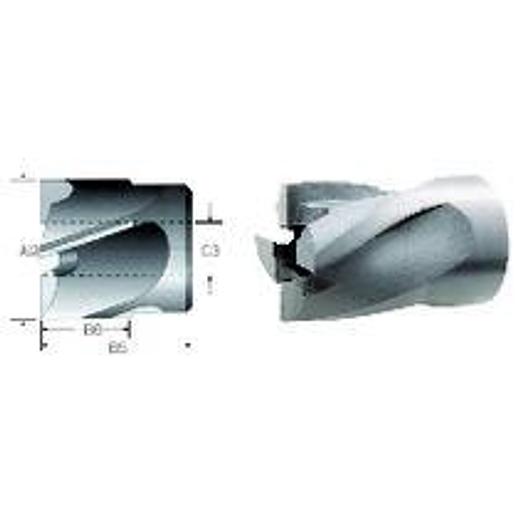

Technical characteristics:

• [A12] Cutting diameter, max. mm: 10
• [B3/B4/B5] Total length mm: 28
• [B6] Chip flute length mm: 15
• [C3] Mounting diameter, machine side mm: 5
• f mm/rev: 0.090-0.200
• Material: HSS
• Countersink angle: 180
