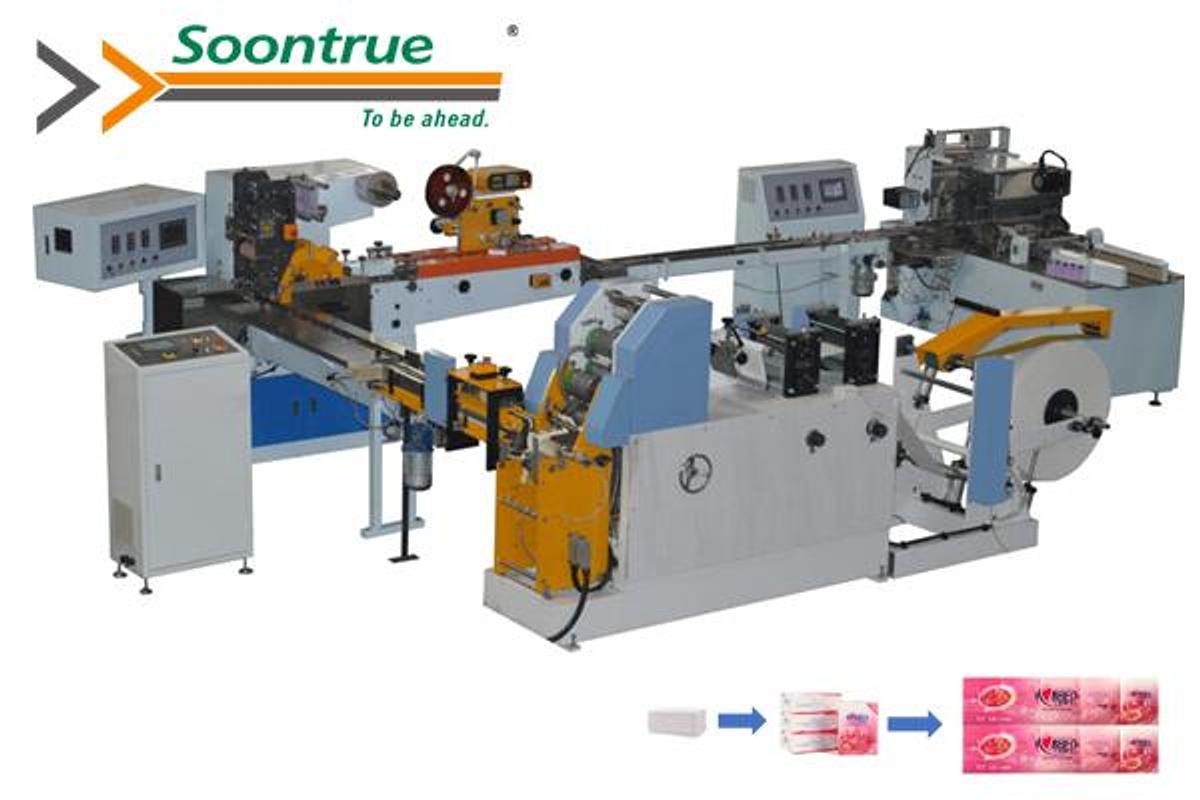

ZB280 Handkerchief Paper Packing Machine

ZB280 Handkerchief Paper Packing Machine

The ZB280 Handkerchief Paper Packing Machine is a complete automatic solution designed for folding, counting, single-bag packing, and bundle packing of pocket tissues and handkerchief paper products. This system ensures high production efficiency, precise folding quality, and reliable packaging performance for modern tissue converting operations.

The production line integrates a folding and counting machine, an automatic single-bag packing unit, and a bundle packing machine, providing a streamlined and fully automated workflow.

Main performance and structural features

Handkerchief Folding and Counting Unit

• Finished tissue size: 75 × 53 × 24 mm

• Jumbo roll width: 180–210 mm

• Jumbo roll max diameter: 1.2 m

• Core diameter: 3 inches (76.2 mm)

• Mechanical N-fold forming with vacuum suction

• Steel-to-rubber embossing system

• Inverter-controlled speed adjustment

• Gear, chain, and belt transmission system

• Pneumatic roll uploading (optional centering device)

• Production speed: up to 75 packs/min

• Main motor power: 1.5 kW

• Fan power: 5.5 kW

Automatic Single Bag Packing Unit

• Tissue size range:

L 80–110 mm × W 75–100 mm × H 30–50 mm

• Packing speed: 25–90 bags/min

• Packing material: CPP film

• Working air pressure: ≥ 0.5 Mpa

• Power supply: 380V, 50Hz

• Machine weight: approx. 1,600 kg

• Dimensions: 2,940 × 2,650 × 1,720 mm

Automatic Bundle Packing Unit

• Average packing speed: 20 bundles/min

• Tissue size range:

L 75–105 mm × W 25 ± 2 mm × H 50 ± 2 mm

• Bag arrangement options:

2×3; 2×4; 2×5; 2×6; 3×3; 3×4; 3×5; 3×6

• Total power: 2.5 kW

• Main motor power: 0.25 kW

• Working pressure: > 0.6 Mpa

• Dimensions: 2,300 × 1,250 × 1,450 mm

• Machine weight: approx. 1,000 kg

Typical applications

• Pocket tissue production

• Handkerchief paper converting

• Automatic retail packaging

• Multi-pack bundle production

• Industrial tissue manufacturing plants
