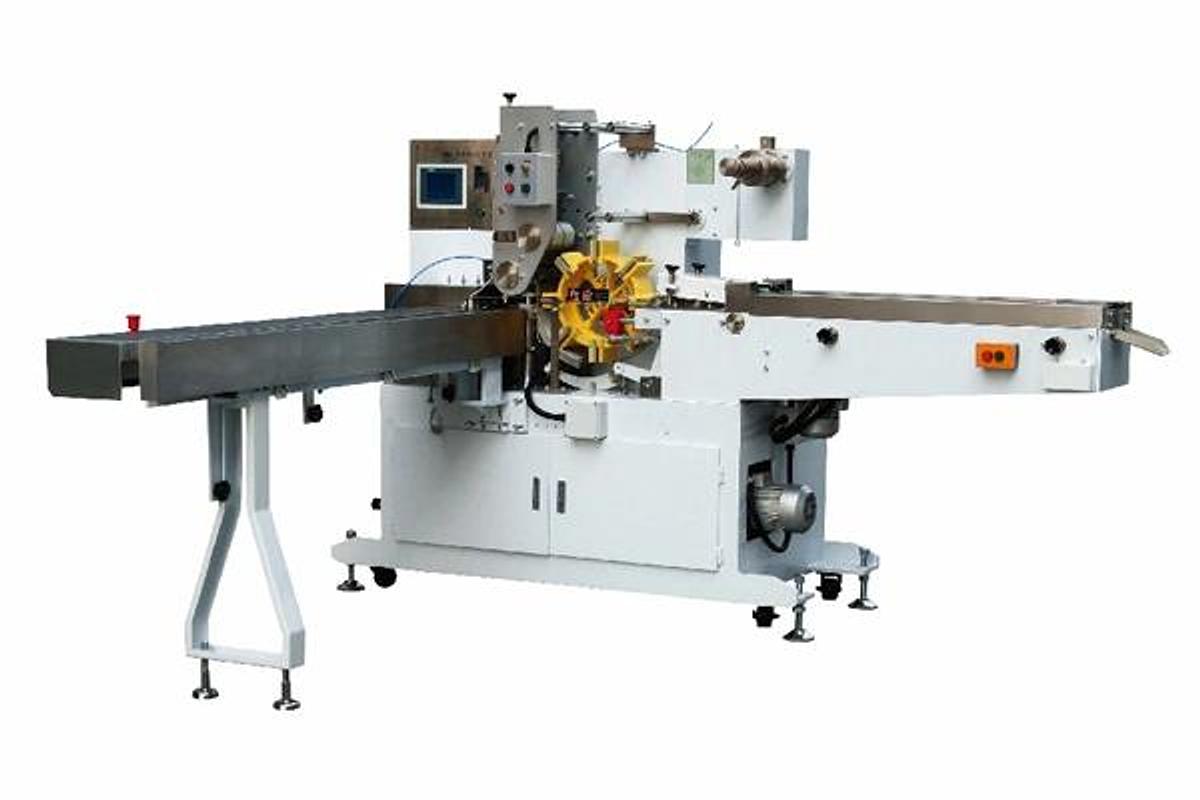

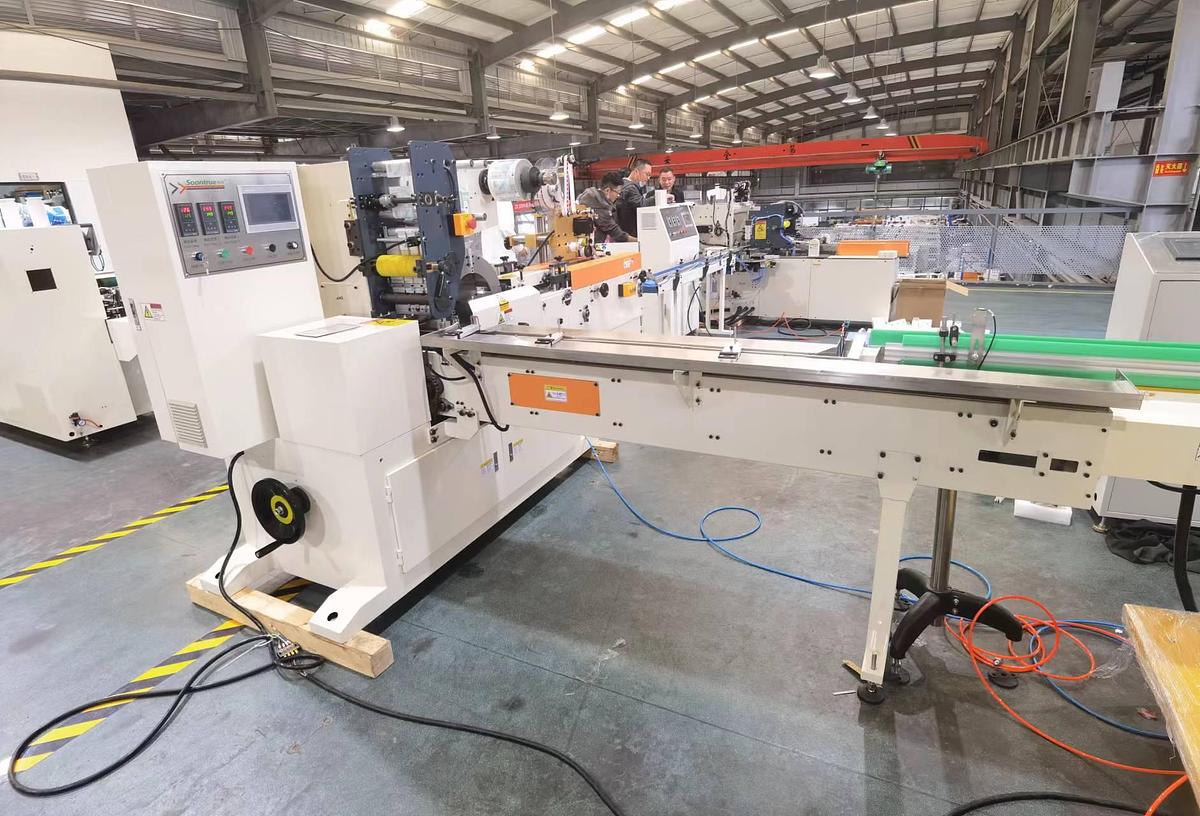

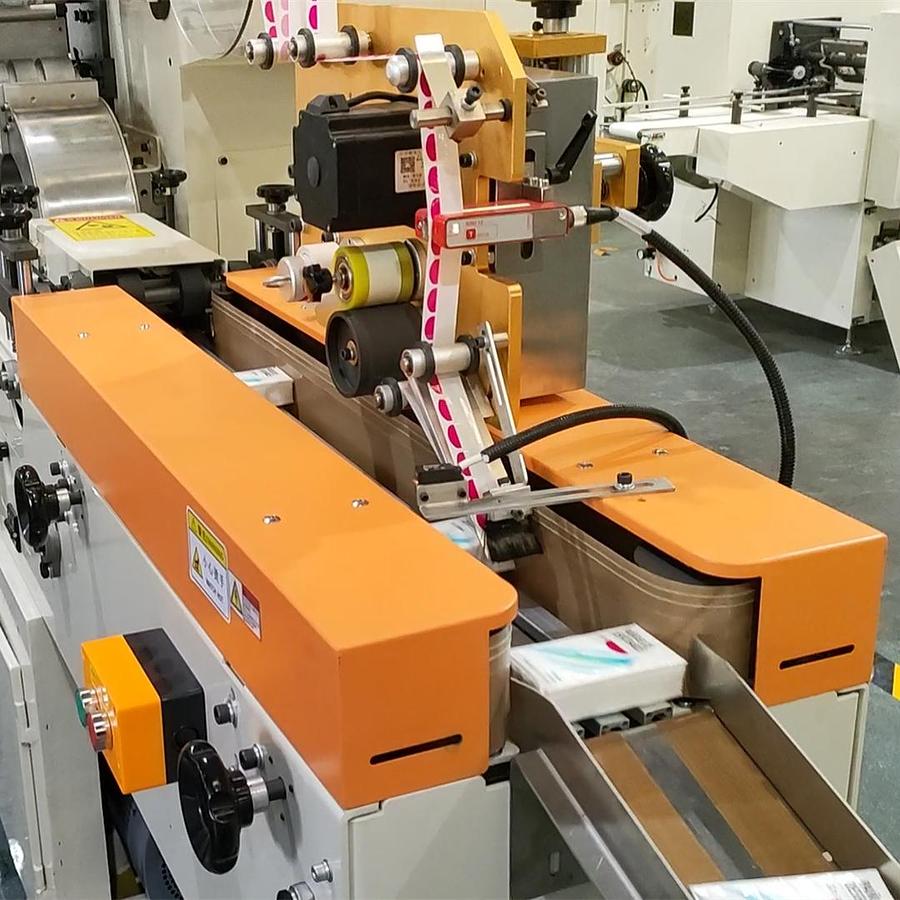

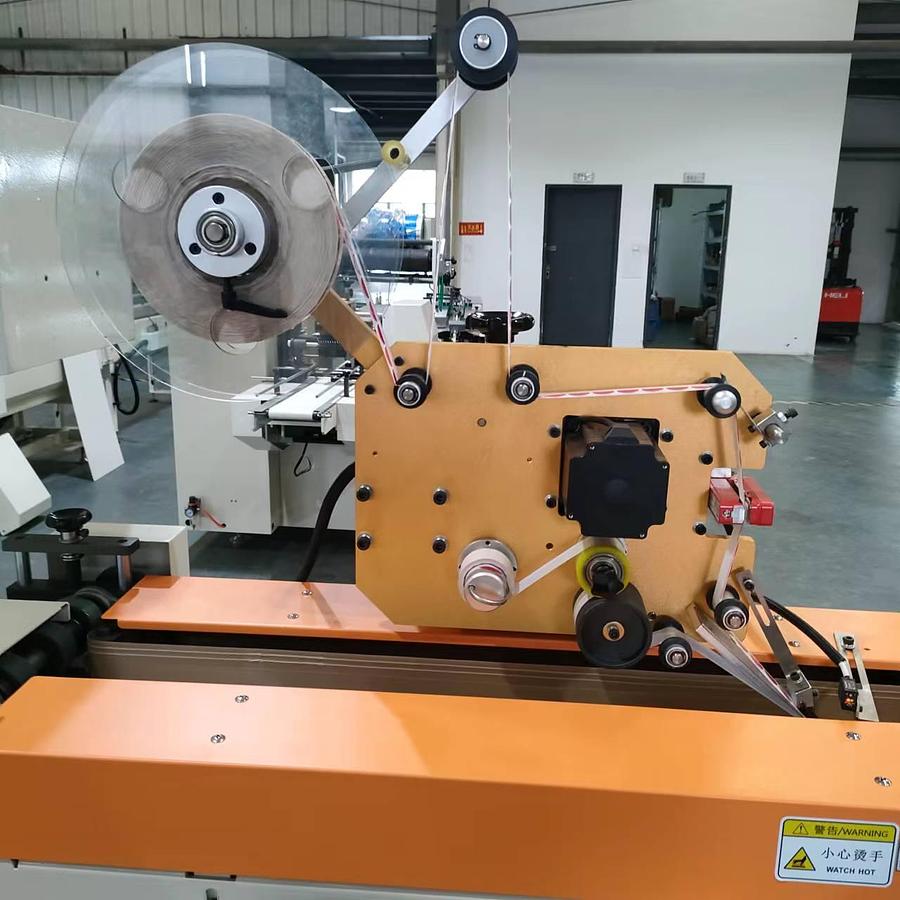

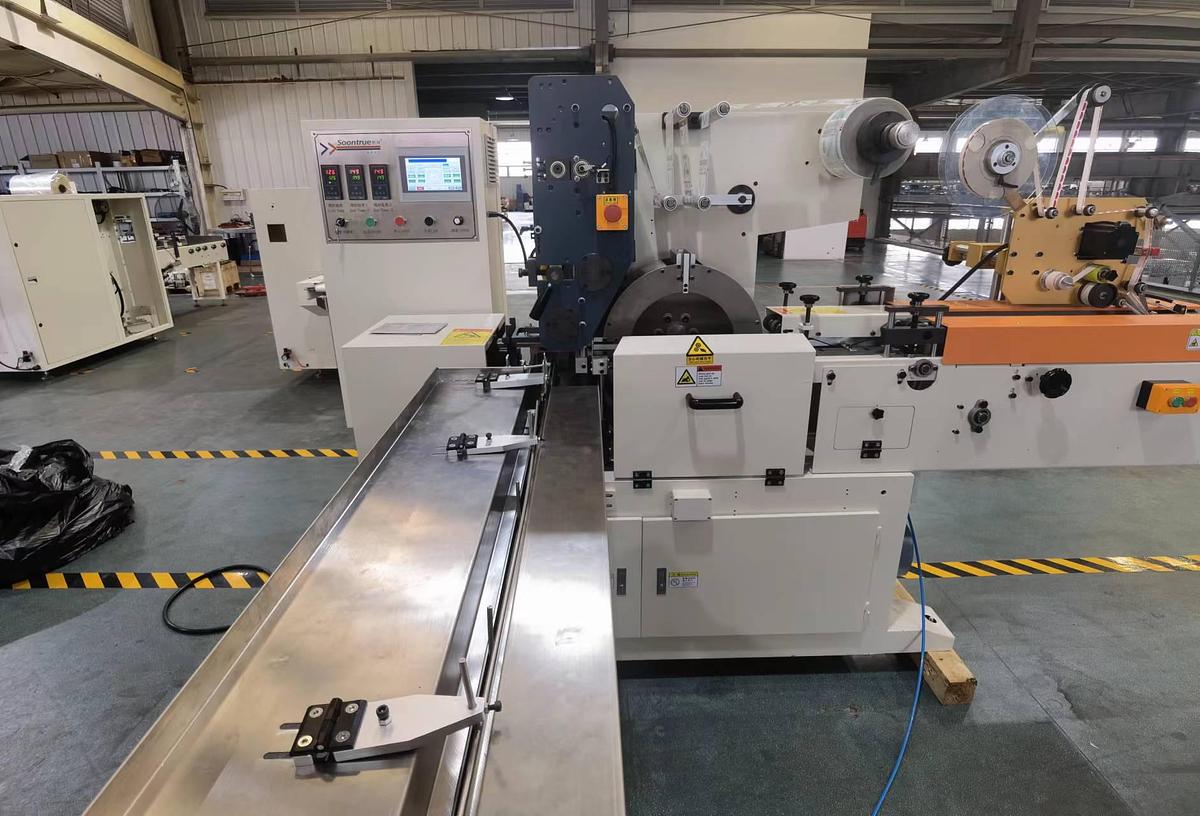

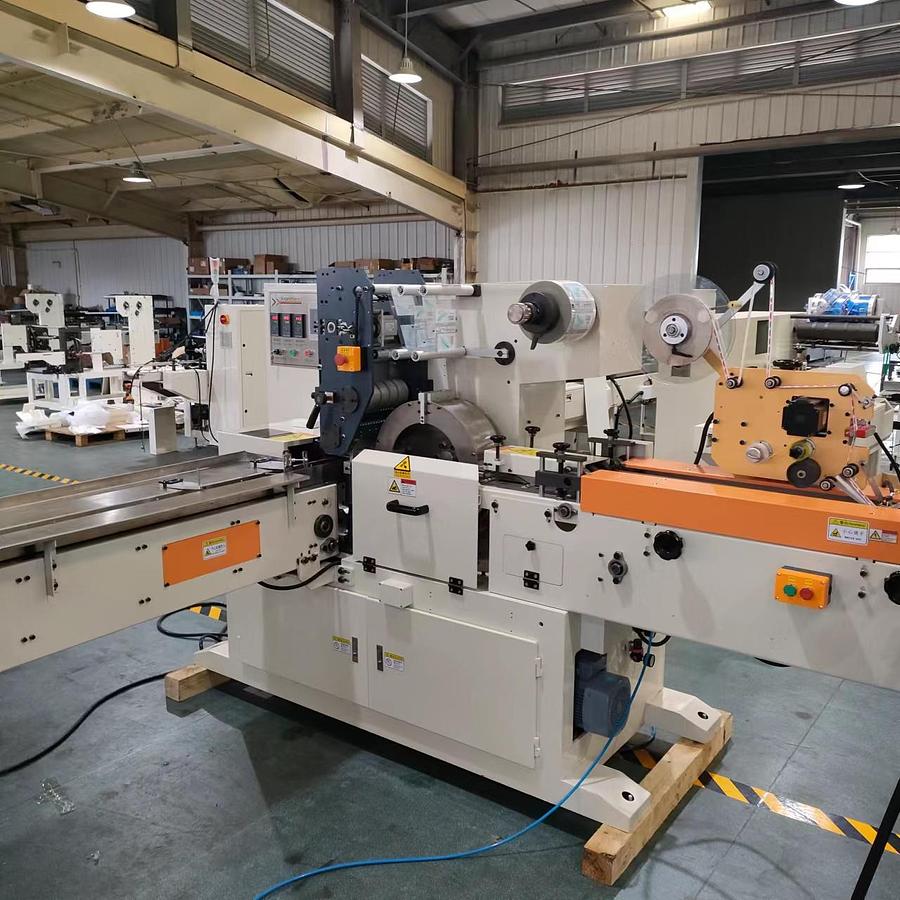

ZB201 Handkerchief Paper Single Packing Machine

ZB201 Handkerchief Paper Single Packing Machine

The ZB201 Handkerchief Paper Single Packing Machine is a high-efficiency automatic solution designed for individual packaging of handkerchief and pocket tissue products. Featuring a 3D turntable packaging mode and stable high-speed performance, this machine is ideal for tissue converting plants requiring reliable and consistent single-pack production.

Designed for manual product feeding and automatic film wrapping, the ZB201 ensures precise sealing, stable operation, and quick product size adjustments, making it suitable for flexible production environments.

Main performance and structural features

• Standard and mini handkerchief packaging capability

• Manual product feeding system

• 3D turntable packaging mode

• Design speed: 100 RPM

• Maximum stable production speed: 90 packs/min

• Product size changeover time: approx. 40 minutes

• Film changeover time: approx. 20 minutes

• Longitudinal print positioning accuracy: ±2 mm

• Transverse print positioning accuracy: ±2 mm

Product and film specifications

• Packing material: CPP double-sided hot sealing film

• Film thickness: 0.035–0.05 mm

• Maximum film diameter: 420 mm

• Paper core diameter: 76 mm

• Maximum film width: 150 mm

Machine dimensions and technical data

• Overall dimensions: 3,800 × 2,300 × 1,950 mm

• Machine weight: ≥ 1,300 kg

• Machine color: Gray

• Cabinet power supply: 380 V

• Total driving power: 3.5 kW

• Total heating power: 3 kW

• Voltage variation tolerance: ±10%

• Air supply pressure: 5–6 kg/cm²

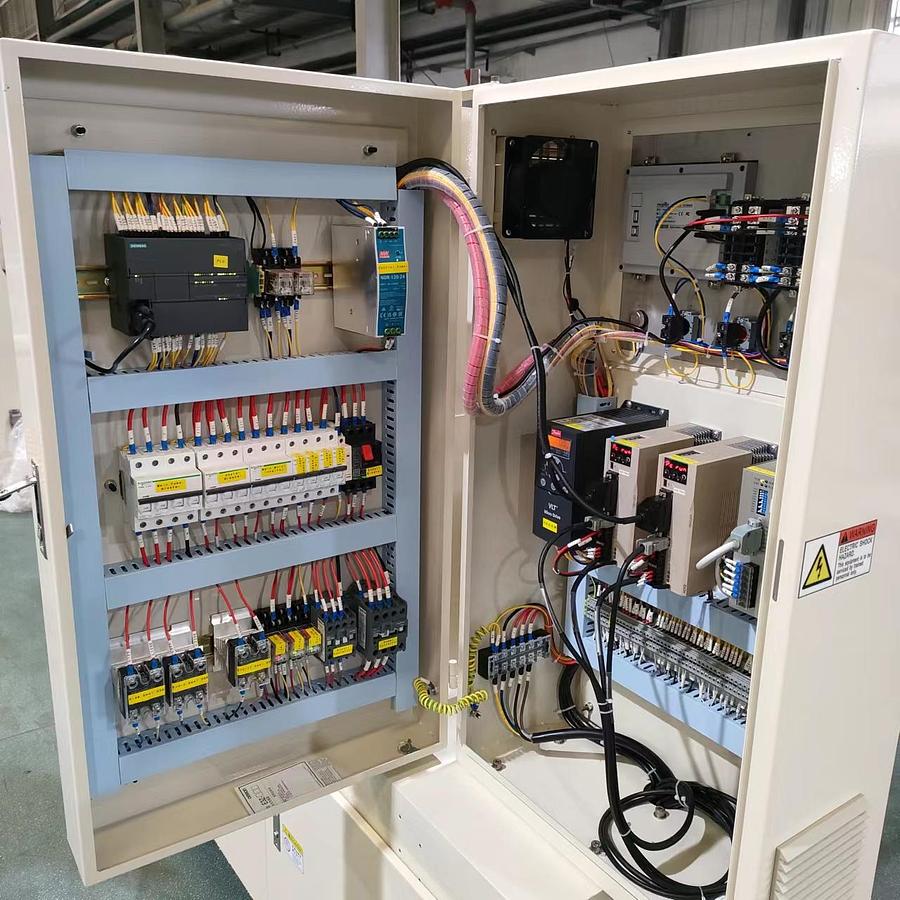

• Electrical system with PELV protection

Typical applications

• Pocket tissue packaging

• Handkerchief paper production lines

• Single retail pack tissue manufacturing

• Tissue converting plants
