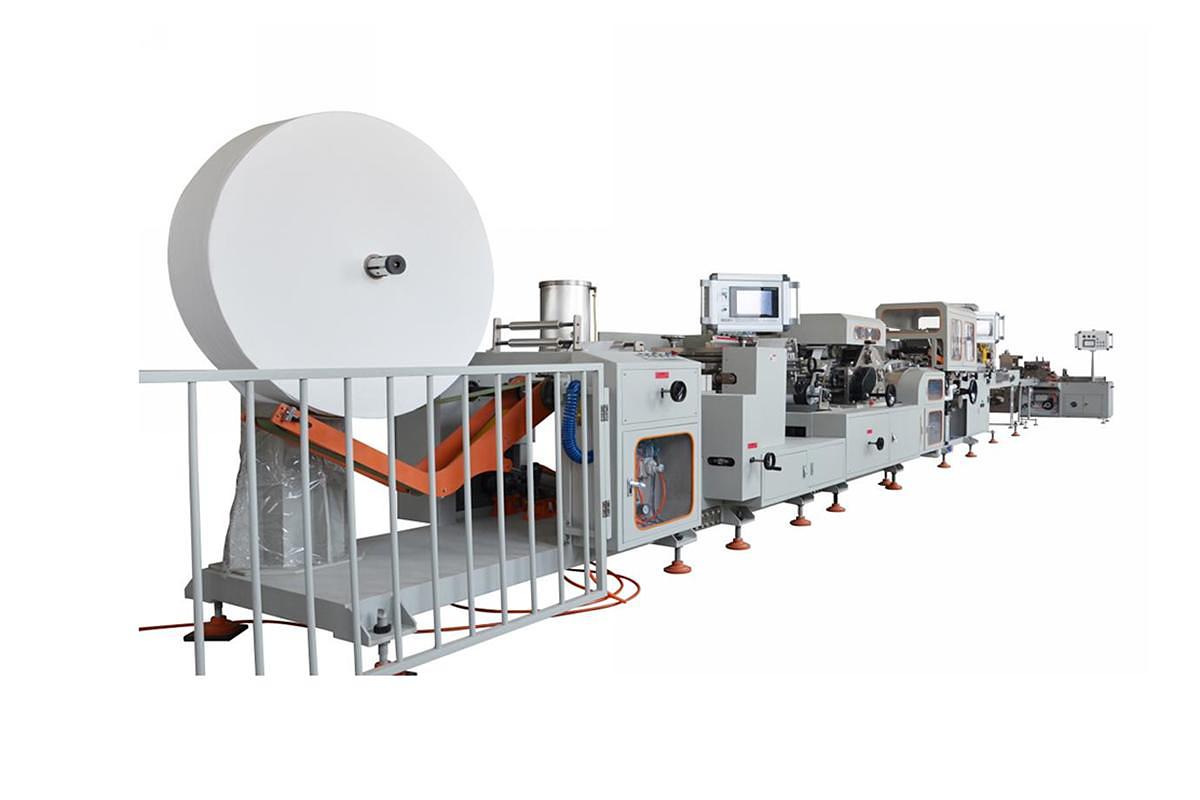

SP-S-220 Handketchief Pocket Tissue High Speed Folding Machine

General Information

• Model: -220A
• Equipment Type: Full automatic folding and packaging production line for handkerchief/pocket tissue
• Parent Roll Stands: Two
• Parent Roll Width: 420 mm ± 3 mm
• Parent Roll Diameter: ≤Φ1500 mm
• Core Diameter: Φ76 mm
• Applicable Parent Roll Paper:
• Three-layer: 13–16 g/m²
• Four-layer: 12–15 g/m²

Finished Product

• Finished Product Size: 210 mm ± 2 mm × 210 mm ± 2 mm
• Finished Product Specifications (Small Pack): 72(105) ± 2 mm × 53 ± 2 mm × 24 mm ± 2 mm
• Small Pack Super Mini Size: 62 × 48 × 19 mm
• Packaging Count: 6–10 sheets per pack (adjustable with molds)
• Packaging Form:
• Main packaging: 3×2×1, 3×3×1, 4×2×1 (columns × layers × rows)
• Customizable

Film Specifications

• Film Diameter: ≤Φ350 mm
• Core Inner Diameter: Φ76 mm
• Width: ≤145 mm
• Material: PE film
• Thickness: 0.040–0.05 mm
• Label Interval: 146–152 mm
• Film Positioning: Electric control
• Film Sealing: Heat-sealing with 220V, 1000W heating wire

Paper Handling & Feeder

• Paper Feeder: 10 sets, connecting rod type
• Paper Guide System: Correction system, infrared automatic correction
• Embossing Equipment: 1 set
• Calendering Equipment: 1 set
• Recycling System: Vacuum pump connected to recycling bin

Performance

• Design Speed: 220 packs/min (10 sheets)
• Operation Speed: 180 packs/min (10 sheets)
• Middle Packaging Speed: 16 packs/min
• Acceptance Rate: >98%
• Effective Operation Rate: >95%

Power & Utilities

• Rated Total Power: 33.5 kW (including 18.5 kW vacuum pump)
• Middle Packaging Machine Power: 4.8 kW
• Input Voltage: 380V, 50 Hz
• Compressed Air: 0.6 MPa

Equipment Dimensions

• Main Production Line: L 16 m × W 4.6 m × H 2.2 m
• Middle Packaging Machine: 2400 × 1600 × 1400 mm
• Weight of Middle Packaging Machine: 1000 kg
• Conveyor Line Length: 2.2 m

Control & Automation

• PLC, Touch Screen, VFD: Siemens (Germany)
• Sensors: SICK (Photoelectric & Label)
• Power Components: Schneider (France)
• Bearings: NSK (Japan), LK
• Linear Guide Rails & Pneumatic Components: Yadeke
• Servo Motor for Middle Packaging: Siemens

Main Components Supplied

1. Folding Unit
2. Small Pack Unit
3. Labeling Machine
4. Embossing System (customized)
5. Vacuum Pump Negative Pressure Unit
6. Middle Packaging Machine
7. Waste Collection Unit

Random Spare Parts & Tools Provided

• Special Tools: Imported stubby wrenches, Allen wrenches, screwdrivers, pliers, hammers, gauges, tape measures, hook wrenches, toolbox
• Vulnerable Parts: Folding knives, cutting knives, heating rods, thermocouples, belts, springs, linear bearings, etc. (for small and medium packaging machines)
• Documentation: User manuals, electrical schematics, spare parts catalogs
