Multi Bags Facial Tissue Packing Machine TD300ANS

The TD300ANS is a high-speed, fully automatic facial tissue single/bundle wrapping machine. It is suitable for packing:

• V-fold hand towels
• Facial tissues
• Square tissues
• Pocket tissues
• Cotton tissues
• Napkins

It supports single and bundle packaging using prefabricated M-shaped bags with exhaust holes.

Packing Specifications

Bundle Size:

• Max bundle length: 550 mm
• Bundle width: 120–420 mm
• Bundle height: 90–250 mm

Packaging Form:

• Single row: 3, 4, 5, or 6 packs
• Double row: 6, 8, 10, or 12 packs

Packing Speed:

• Up to 30 bags/min (for double row of 6 packages)

Bag Material:

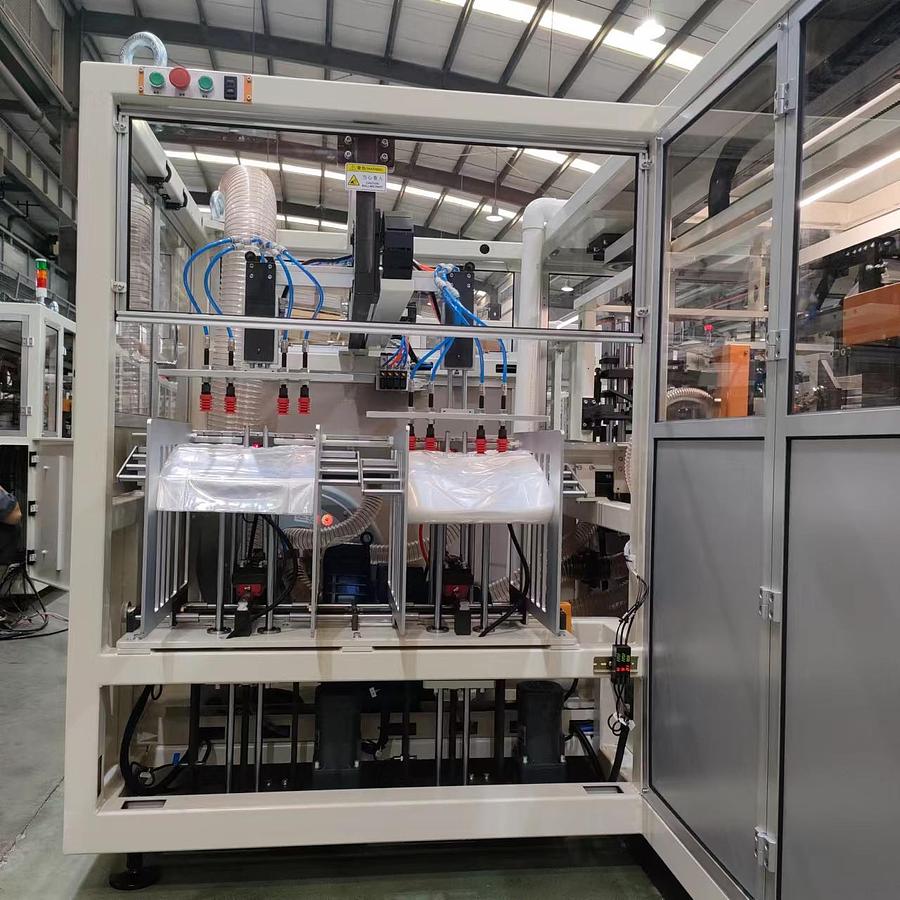

• M-shaped pre-made bag with exhaust hole

Power & Air Requirements

• Power supply: 380V ± 5%, 50Hz, 3-phase, 4-wire (control voltage: DC 24V)
• Installed power: 18 kW
• Operating power: 15 kW
• Air pressure: 0.6–0.7 MPa (air source provided by customer)

Safety & Waste Management

• CE-compliant safety marks

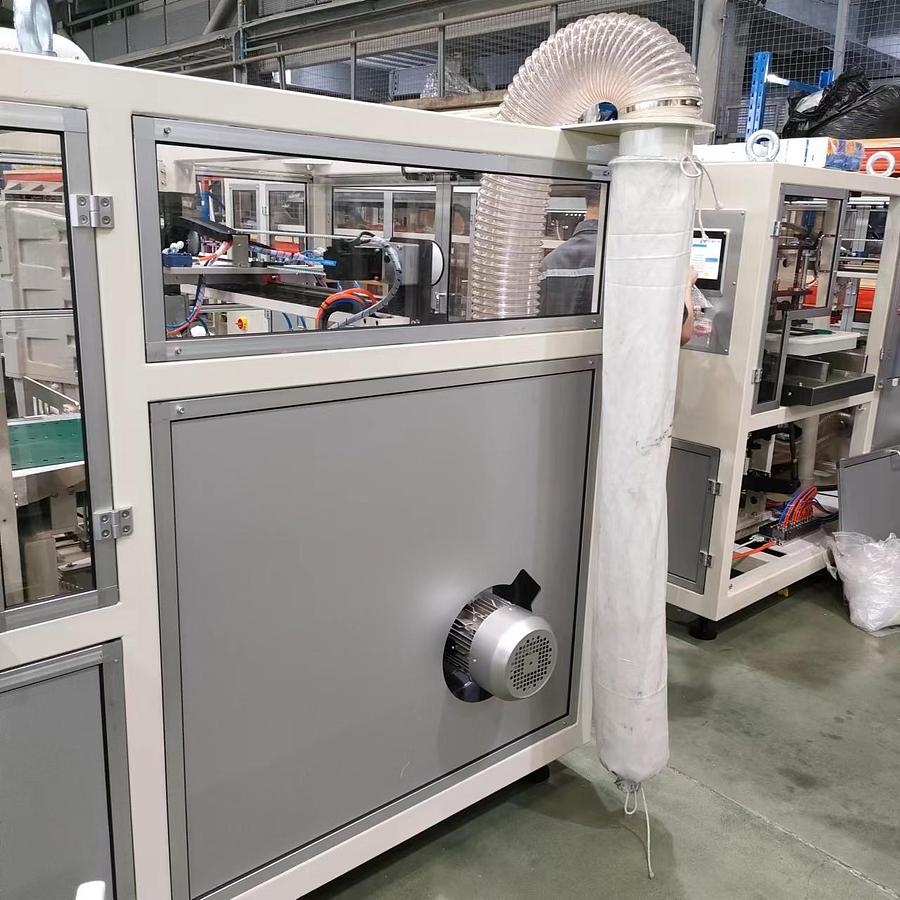

• Bag residue: 25–30 mm of waste film is automatically collected in the waste film box

Key Features

• Supports single and bundle packaging with flexible row configurations
• Higher speed and power than TD300AN (30 bags/min vs 25 bags/min; 15 kW vs 10 kW operating power)
• Uses prefabricated M-shaped bags for neat, efficient packaging
• Automatic waste film collection reduces material loss
• CE-compliant safe operation
• Suitable for medium-to-large bundle tissue production
