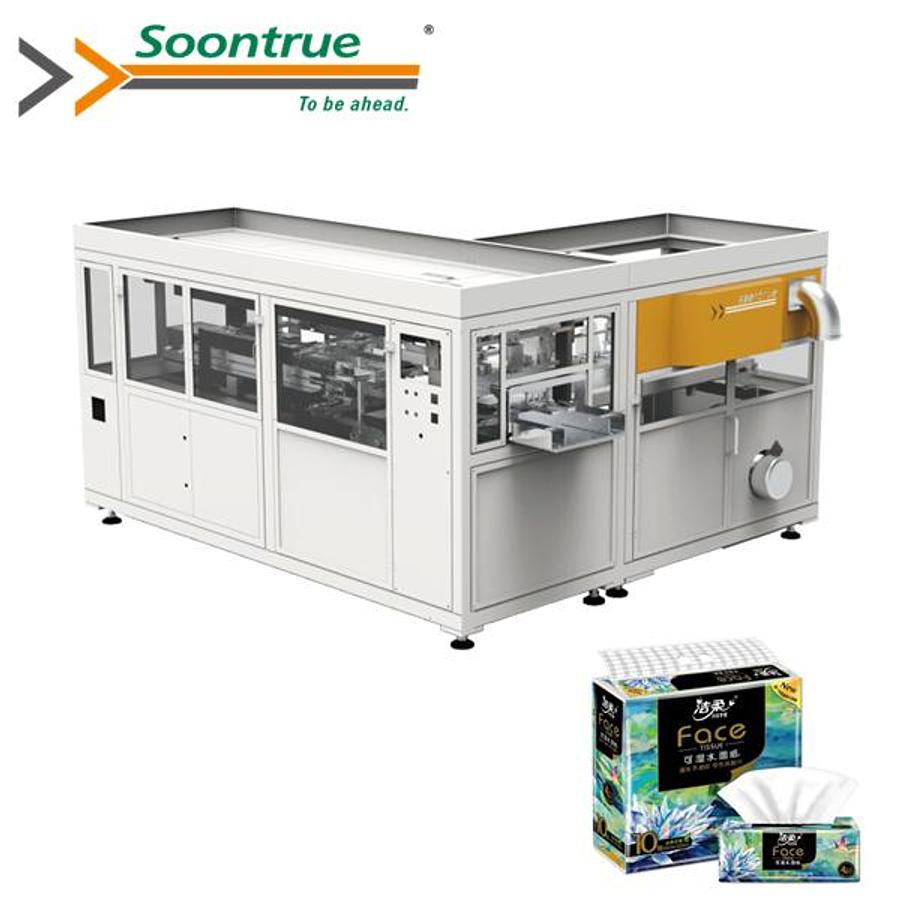

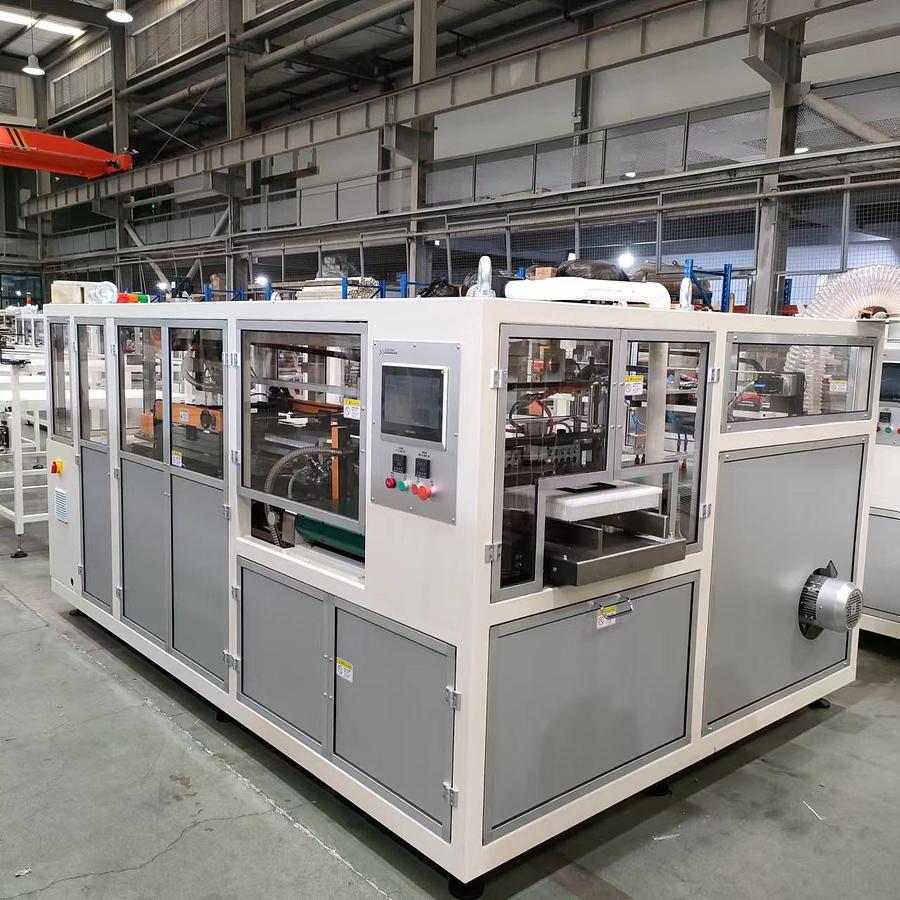

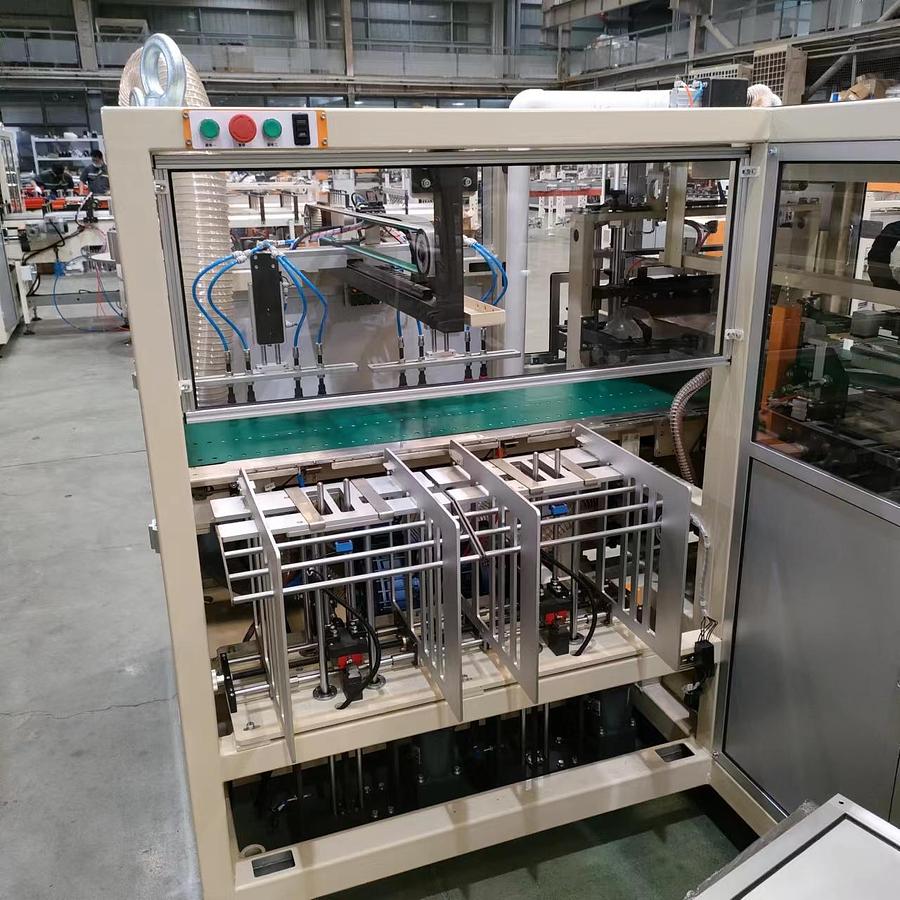

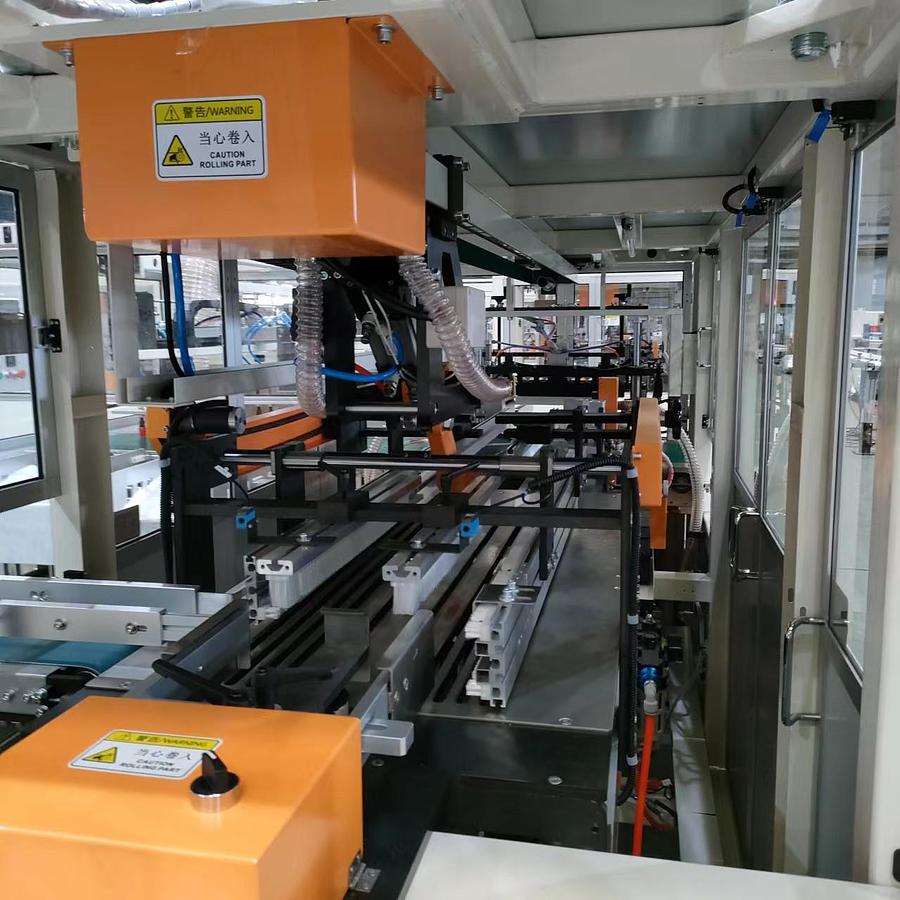

Facial Tissue Paper Bundling Packing Machine TD300AN

Machine Overview

The TD300AN is a high-speed, fully automatic facial tissue single/bundle wrapping machine, suitable for:

• V-fold hand towels
• Facial tissues
• Square tissues
• Pocket tissues
• Cotton tissues
• Napkins

It supports single and bundle packaging using prefabricated M-shaped bags with exhaust holes.

Packing Specifications

Bundle Size:

• Max bundle length: 550 mm
• Bundle width: 120–420 mm
• Bundle height: 90–250 mm

Packaging Form:

• Single row: 3, 4, 5, or 6 packs
• Double row: 6, 8, 10, or 12 packs

Packing Speed:

• Up to 25 bags/min (for double row of 6 packages)

Bag Material:

• M-shaped prefabricated bag with exhaust hole

Power & Air Requirements

• Power supply: 380V ± 5%, 50Hz, 3-phase, 4-wire (control voltage: DC 24V)
• Installed power: 15 kW
• Operating power: 10 kW
• Air pressure: 0.6–0.7 MPa (air source provided by customer)

Safety & Waste Management

• CE-compliant safety marks
• Bag residue: 25–30 mm of waste film is automatically collected in the waste film box
