Fully Automatic Box Tissue Packing Machine ZB500

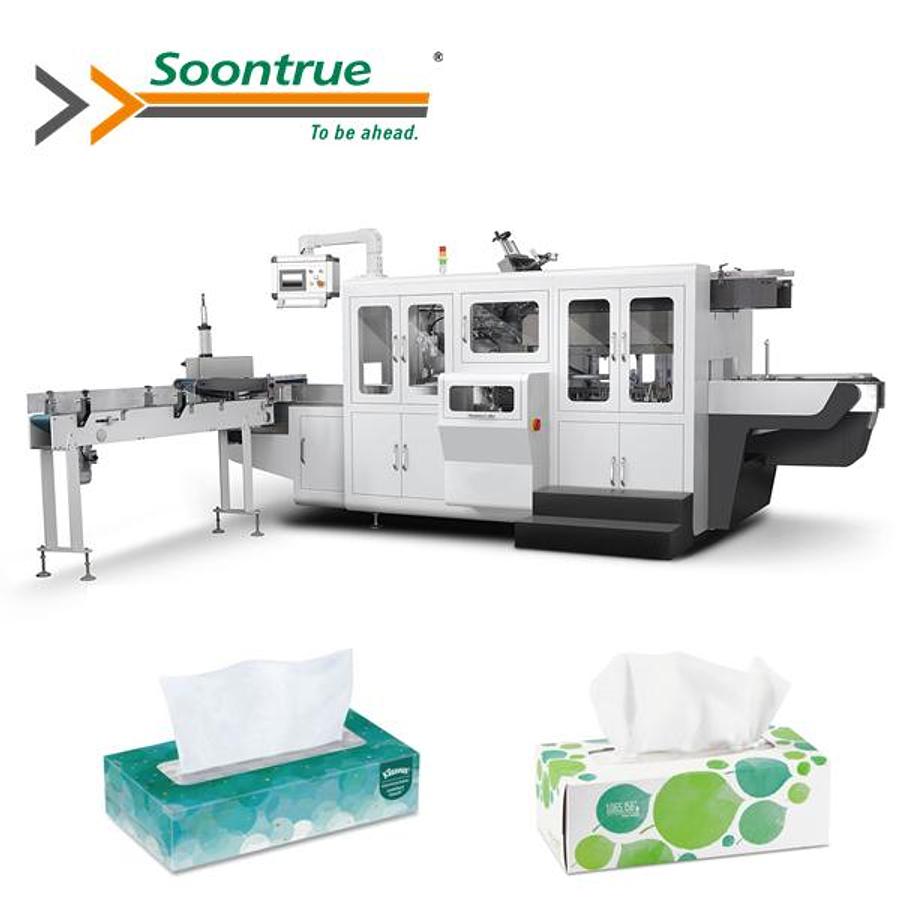

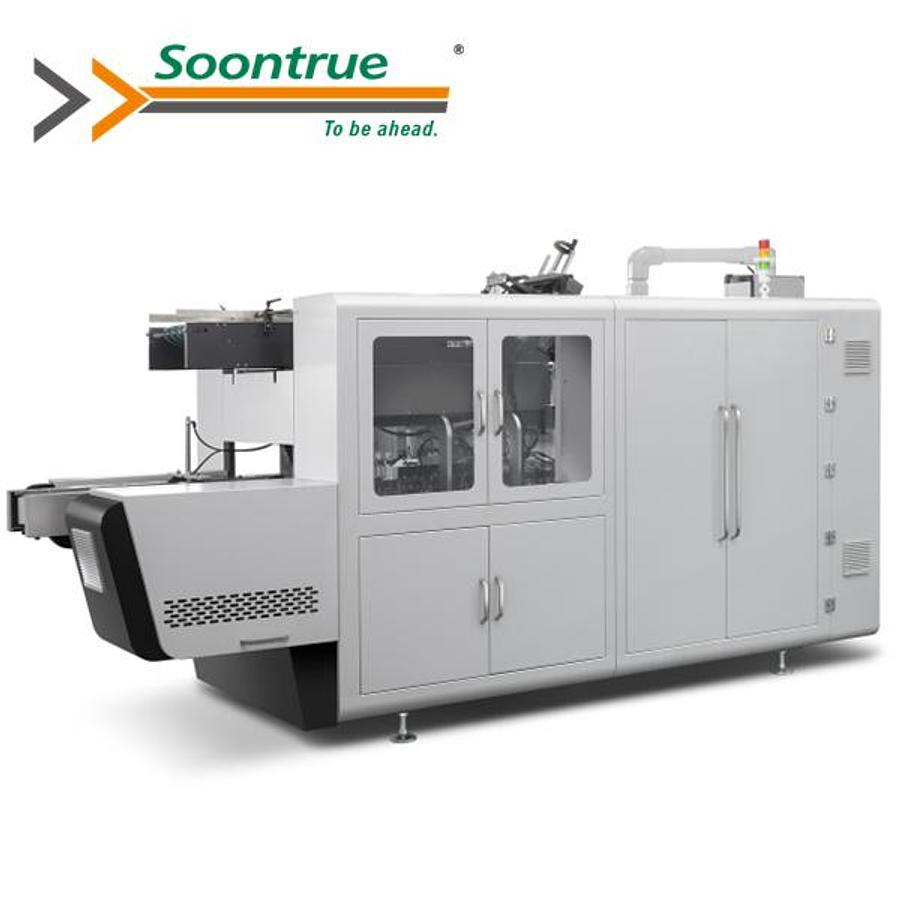

ZB-500 Fully Automatic Box Tissue Packing Machine

The ZB-500 is a high-speed, fully automatic box packing machine designed for efficient and continuous packaging of facial tissues and napkins into cardboard boxes. Engineered for modern tissue manufacturing plants, this machine integrates all key box packing operations into one streamlined system, ensuring high output, consistent quality, and reduced labor requirements.

The ZB-500 automatically performs tissue feeding, box opening, product insertion, batch marking, hot melt adhesive application, box sealing, and finished box discharge, making it an ideal solution for high-volume box tissue production lines.

Main performance and structural features

Fully automated box packing workflow

Automatically completes the entire packaging cycle, from tissue feeding to sealed box output, ensuring stable and repeatable results.

High-speed operation

Capable of packing 30–150 boxes per minute, depending on box size and configuration, supporting high-volume production requirements.

Automatic tissue and carton handling

Precise feeding and placement systems ensure accurate tissue positioning inside boxes and consistent packaging quality.

Integrated batch marking system

Built-in batch number marking supports traceability and quality control in tissue manufacturing operations.

Hot melt adhesive sealing

Automatic hot melt glue dispensing ensures strong, clean, and reliable box sealing.

Wide packing size compatibility

Supports a broad range of box dimensions, allowing flexible adaptation to different tissue box formats.

Compact industrial design

Space-efficient layout suitable for factory floors, while maintaining robust construction for continuous operation.

Stable and user-friendly operation

Designed for reliability, ease of use, and low maintenance in demanding production environments.

Technical overview

• Carton paper weight: 300–400 g/m²
• Packing size range
• Length: 100–240 mm
• Width: 100–120 mm
• Height: 20–90 mm
• Packing speed: 30–150 boxes/min
• Power requirements
• Heating power: 4 kW
• Motor power: 5.5 kW
• Total power: 10 kW
• Power supply: 380V / 50–60Hz / 3-phase / 4-wire
• Air supply
• Pressure: 0.5–0.8 MPa
• Air consumption: 120–160 L/min
• Noise level: ≤ 80 dB

Machine dimensions (L × W × H):

4570 × 1700 × 1800 mm

Machine weight:

Approx. 2,500 kg

Typical applications

• Facial tissue box packaging
• Napkin box packing lines
• Tissue paper manufacturing plants
• High-speed automatic cartoning operations
