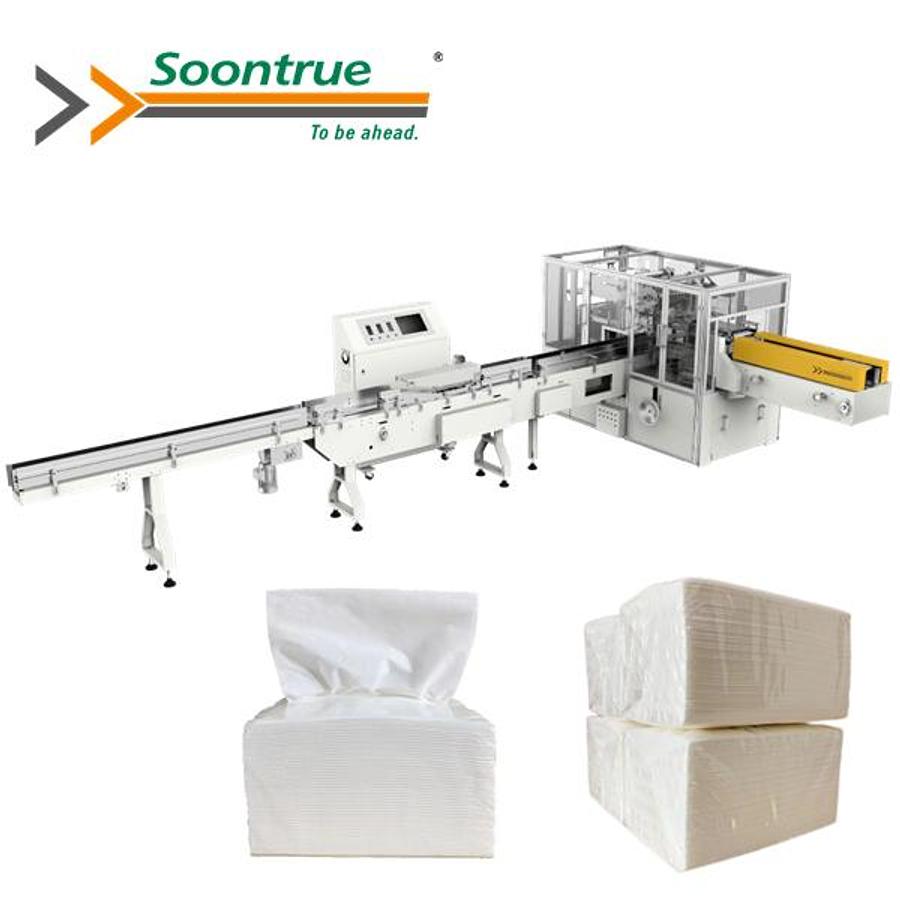

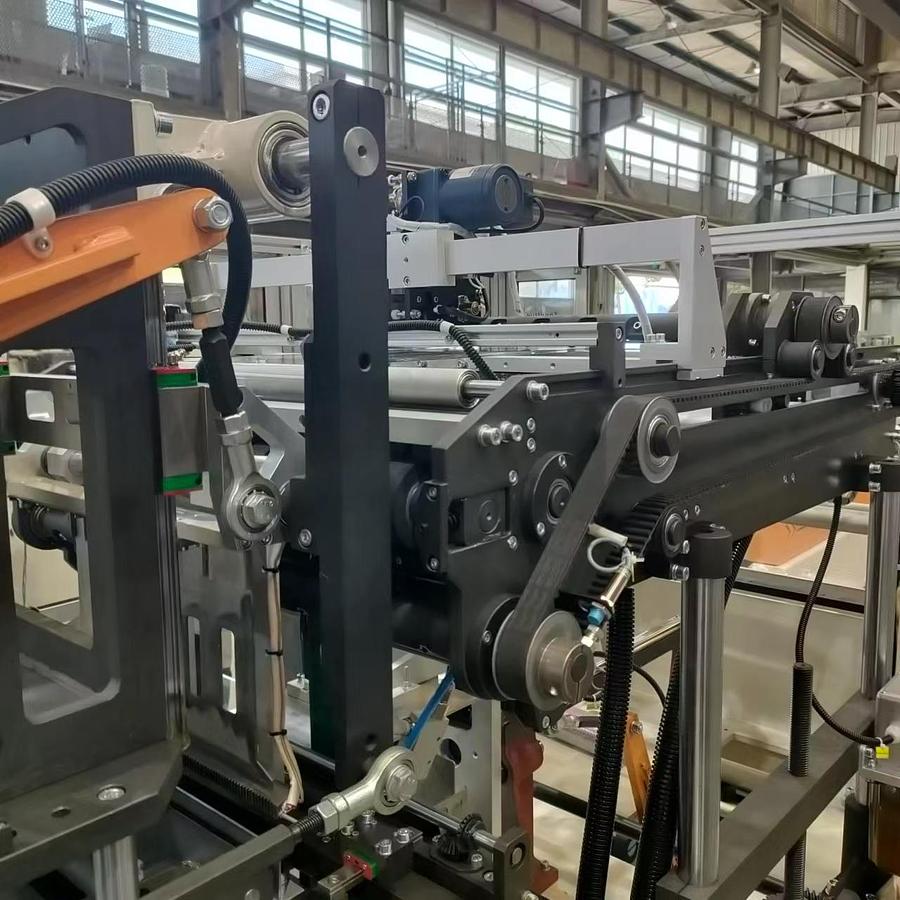

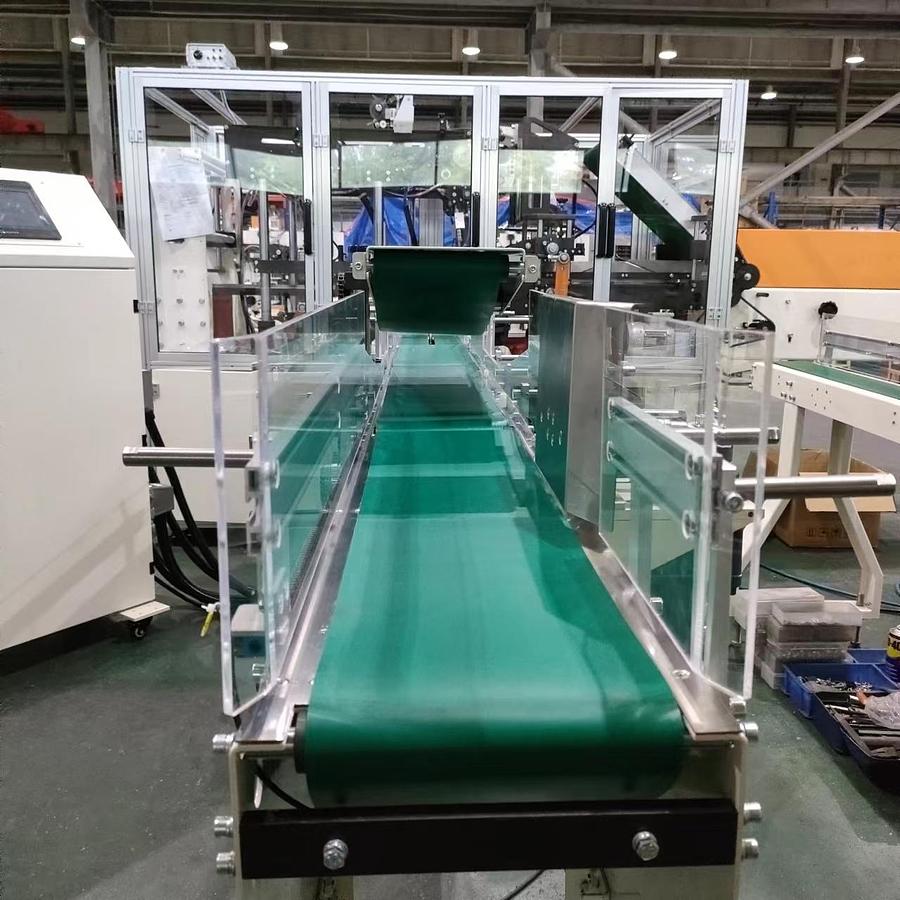

Napkin Tissue Packing Machine ZB302A

Machine Overview

The ZB302A is a high-speed, fully automatic facial tissue single wrapping machine, suitable for packing:

• V-fold hand towels
• Facial tissues
• Square tissues
• Pocket tissues
• Cotton tissues
• Napkins

It uses three-dimensional packaging with CPP (double heat sealing film) and supports large package sizes.

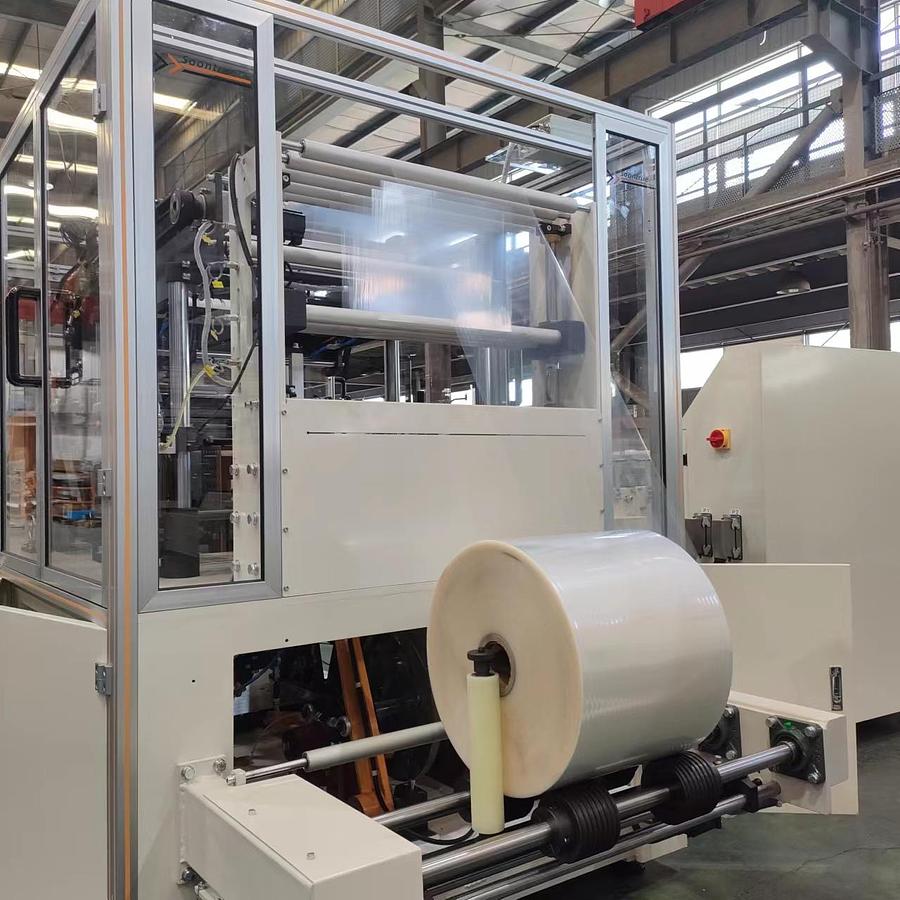

Packing Film Specifications

• Film thickness: 0.04 mm
• Maximum outer diameter: Ø450 mm
• Coil diameter: 75–78 mm

Packing Size

• Length: 100–400 mm
• Width: 80–200 mm
• Height: 40–150 mm
• Maximum packing size: 400 × 200 × 150 mm

Packing Speed:

• 25–60 packs per minute

Power & Air Requirements

• Heating power: 5.0 kW
• Motor power: 4.51 kW
• Rated power (total): 9.81 kW
• Power type: 380V 50Hz (Transformer available)
• Air supply: 0.5–0.7 MPa
• Air consumption: 200 L/min

Machine Dimensions & Weight

• Overall dimensions (L × W × H): 6310 × 4056 × 1696 mm
• Machine net weight: 3,500 kg

Noise Level:

• ≤78 dB

Key Features

• Handles larger tissue packages than ZB290, ZB300HG, and ZB300FN
• Adjustable packing speed for delicate or oversized products
• Uses prefabricated CPP film with large coil compatibility
• CE-compliant safety features
• Ideal for high-end or bulk tissue packaging
