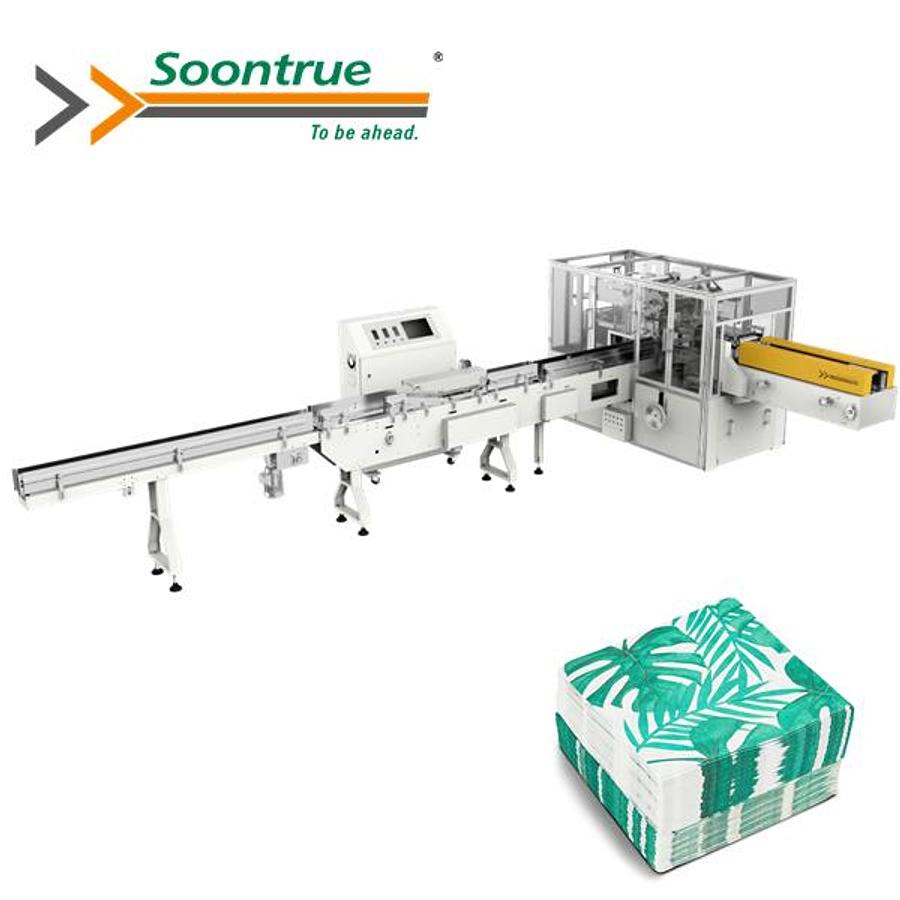

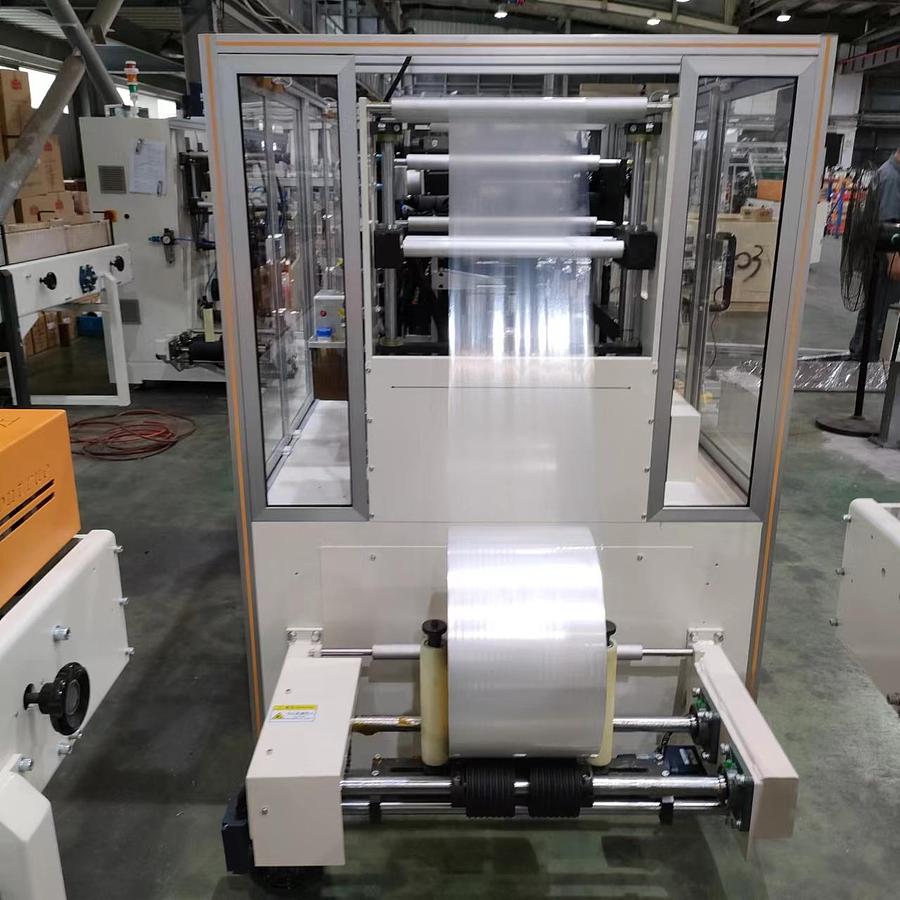

Automatic Napkin Paper Packing Machine ZB300FN

Machine Overview

The ZB300FN is a high-speed, fully automatic napkin and tissue single wrapping machine. It is suitable for packing:

• V-fold hand towels
• Facial tissues
• Square tissues
• Pocket tissues
• Cotton tissues
• Napkins

It uses three-dimensional packaging with CPP (double heat sealing film).

Packing Specifications

• Packing size:
• Length: 90–230 mm
• Width: 80–150 mm
• Height: 30–100 mm
• Maximum packing size: 230 × 150 × 100 mm
• Packing form: Three-dimensional package

Packing Speed:

• 110 packs per minute

Power & Air Requirements

• Heating power: 5.4 kW
• Motor power: 4.71 kW
• Total power: 11 kW
• Power type: 380V 50Hz (Transformer available)
• Air supply: 0.5–0.8 MPa
• Air consumption: 200 L/min

Machine Dimensions & Weight

• Overall dimensions (L × W × H): 6570 × 3720 × 1525 mm
• Machine weight: ~3,500 kg

Key Features

• High-speed single wrapping of napkins and various tissue types
• Supports larger packages compared to ZB290
• Efficient three-dimensional packaging
• Suitable for medium-to-large production lines
