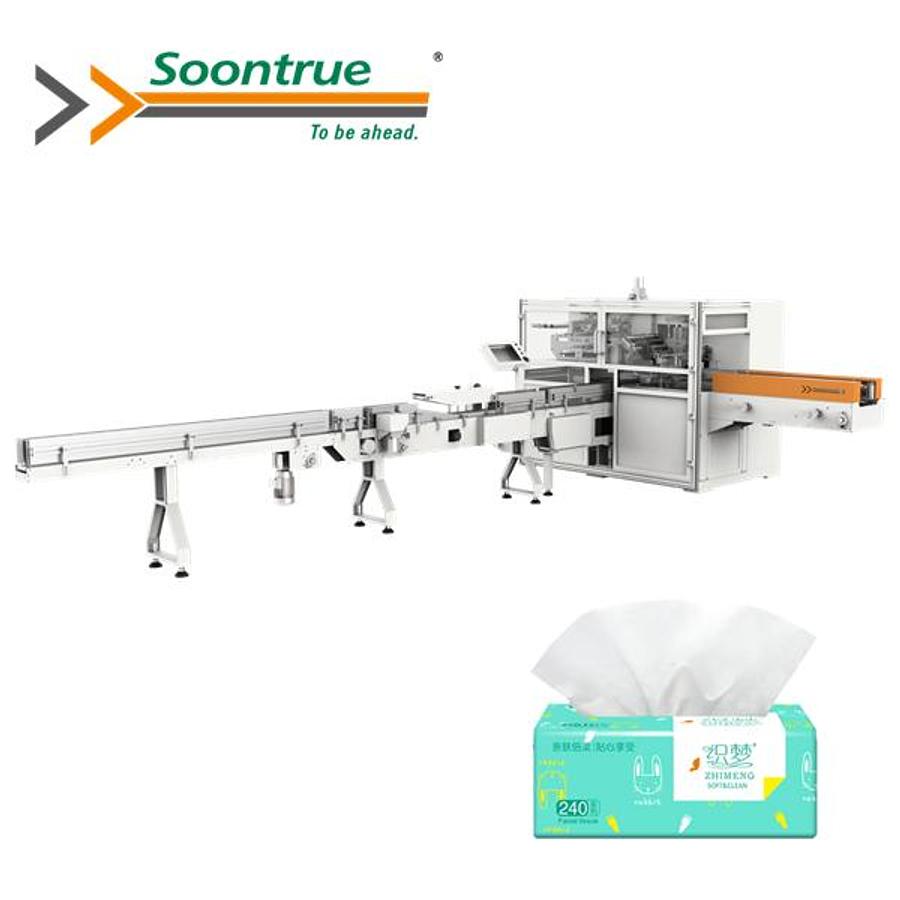

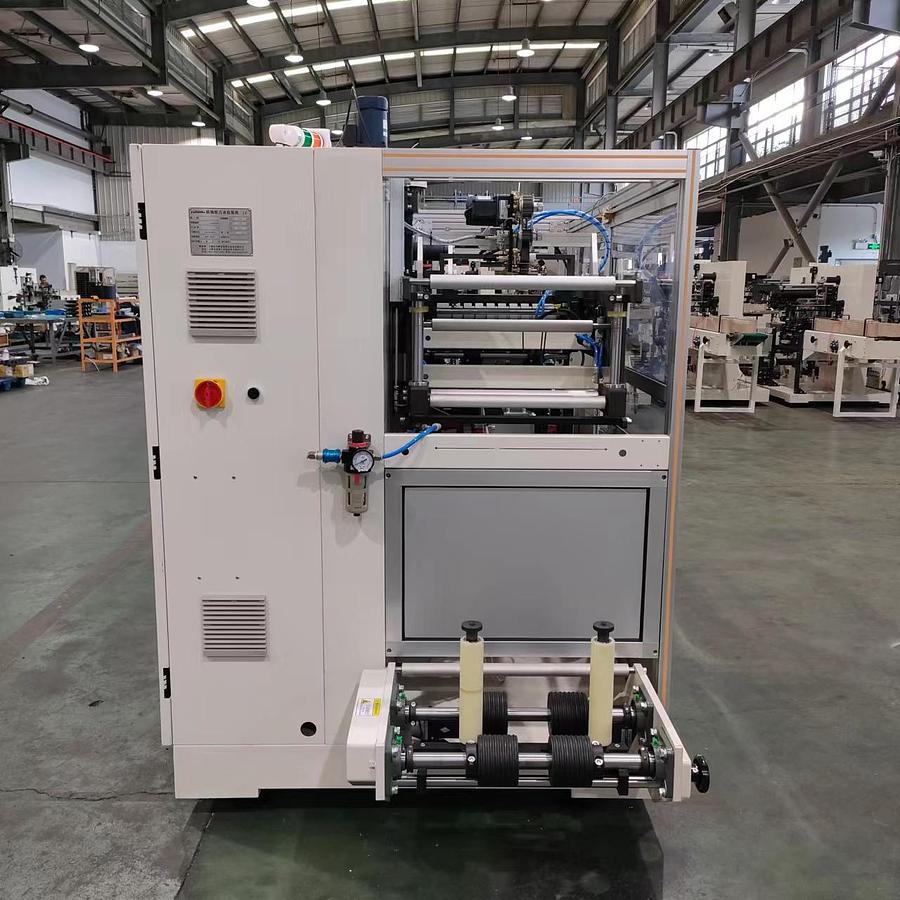

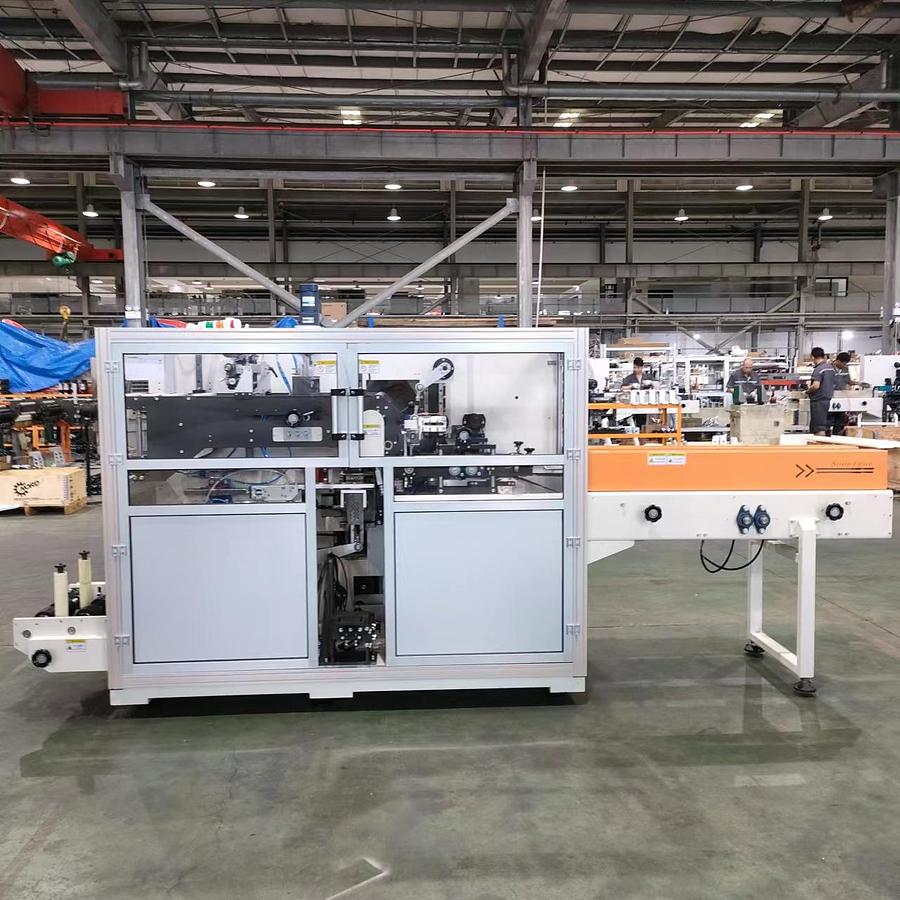

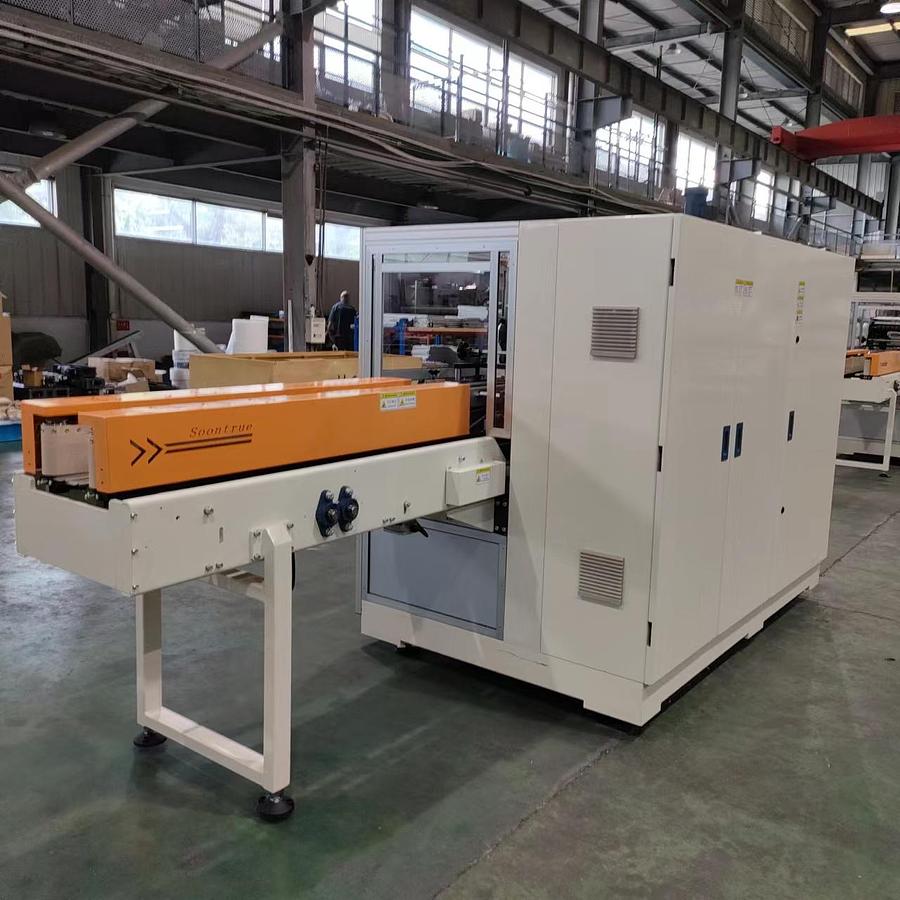

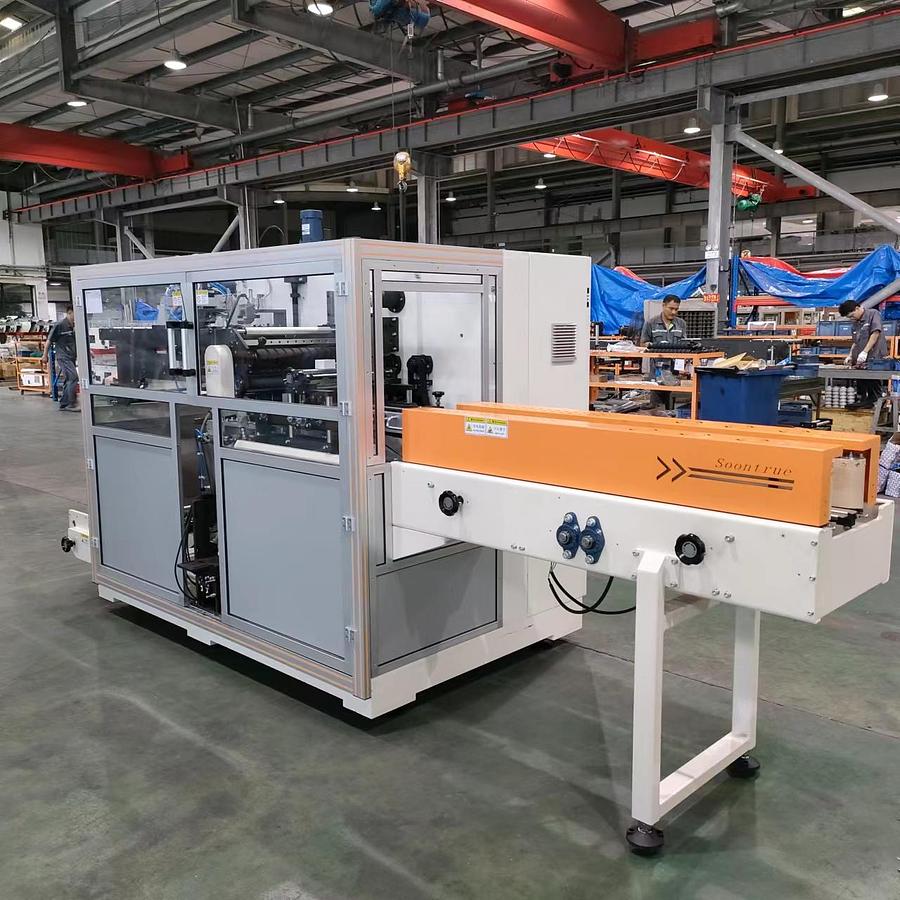

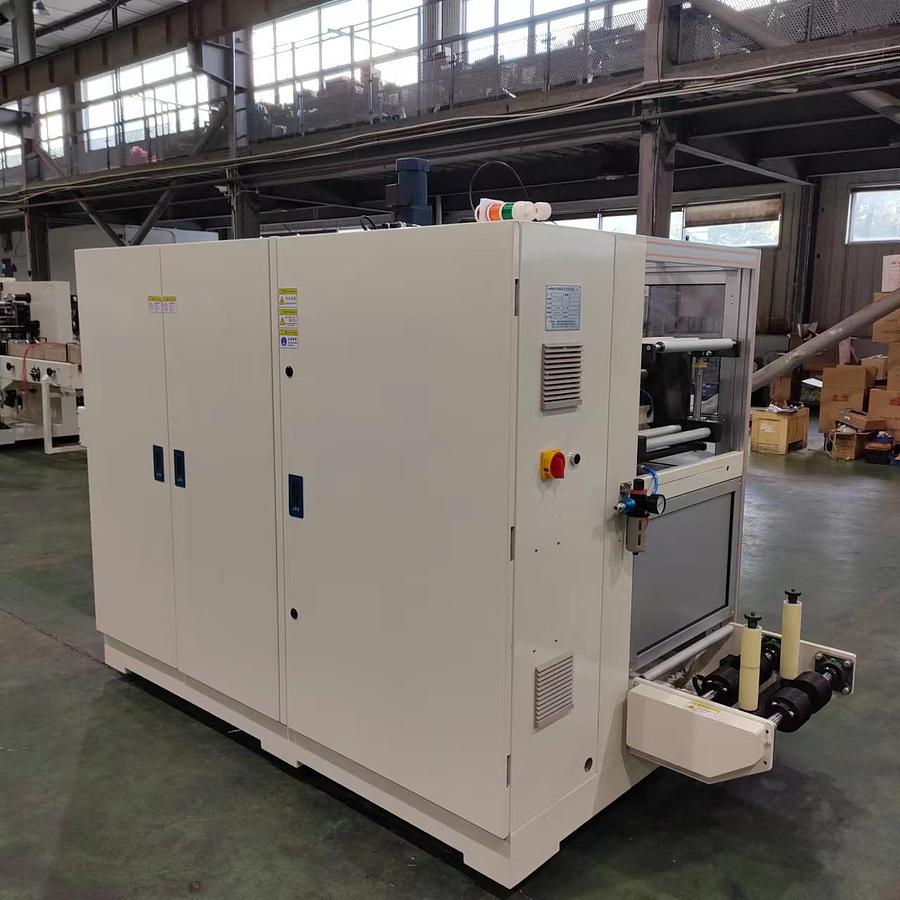

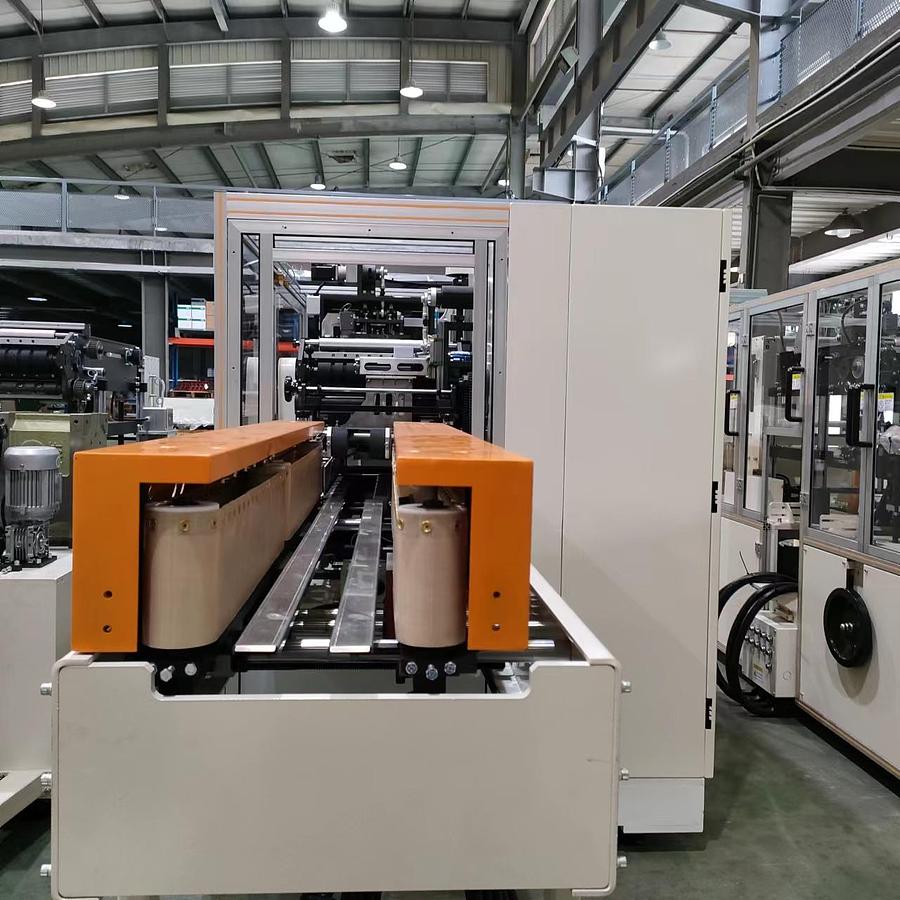

High Speed Tissue Paper Packing Machine ZB300HG

Machine Overview

The ZB300HG is a high-speed, fully automatic facial tissue single wrapping machine, suitable for packing:

• V-fold hand towels
• Facial tissues
• Square tissues
• Pocket tissues
• Cotton tissues
• Napkins

It uses three-dimensional packaging with CPP (double heat sealing film).

Packing Specifications

• Packing size:
• Length: 80–200 mm
• Width: 80–110 mm
• Height: 30–100 mm
• Maximum packing size: 200 × 110 × 100 mm
• Packing form: Three-dimensional package

Packing Speed:

• 160 packs per minute

Power & Air Requirements

• Heating power: 5.4 kW
• Motor power: 10 kW
• Total power: 16 kW
• Power type: 380V 50Hz (Transformer available)
• Air supply: 0.5–0.8 MPa

Machine Dimensions & Weight

• Overall dimensions (L × W × H): 6100 × 3790 × 1720 mm
• Machine weight: ~3,200 kg

Noise Level:

• ≤78 dB

Key Features

• High-speed single wrapping for medium-to-large tissue products
• Supports larger package heights than ZB290
• Efficient three-dimensional packaging for various tissue types
• Compact design with CE-compliant safety features
