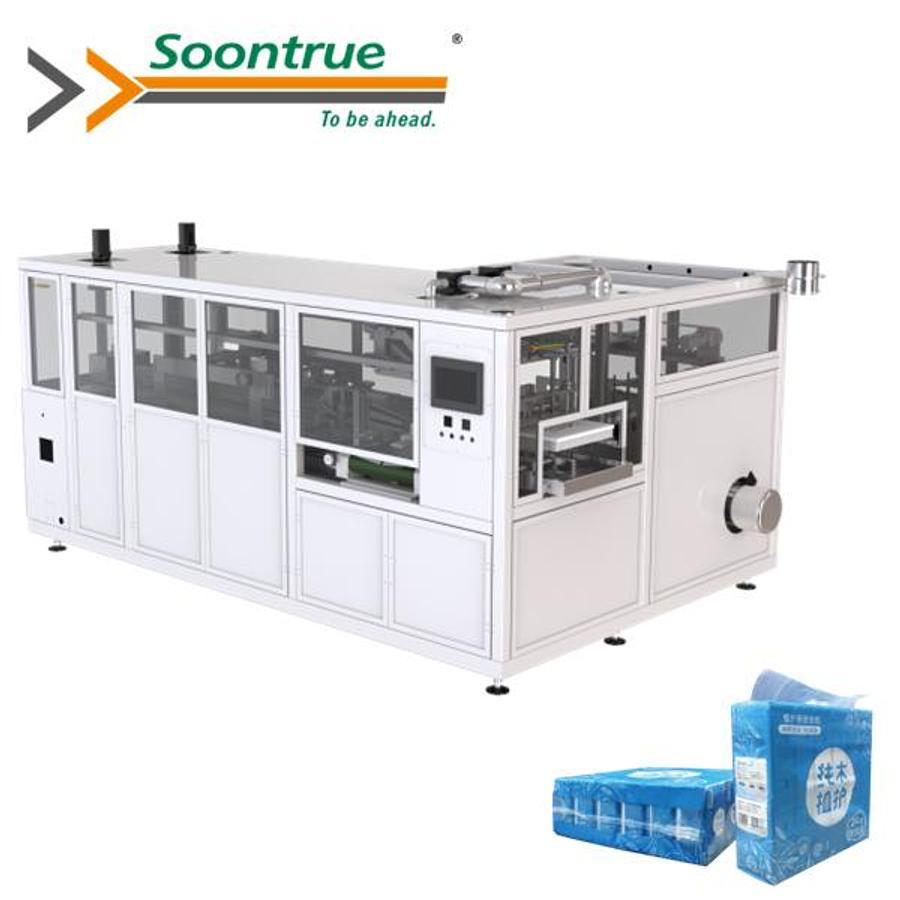

Multi Bags Facial Tissue Packing Machine TD300ANS

Machine Overview

The TD300ANS is a high-speed, fully automatic facial tissue single/bundle wrapping machine. It is suitable for packing:

• V-fold hand towels
• Facial tissues
• Square tissues
• Pocket tissues
• Cotton tissues
• Napkins

It supports single and bundle packaging and is ideal for medium-to-large tissue products.

Packing Specifications

Bundle Size:

• Max bundle length: 550 mm
• Bundle width: 120–420 mm
• Bundle height: 90–250 mm

Packaging Form:

• Single row: 3, 4, 5, or 6 packs
• Double row: 6, 8, 10, or 12 packs

Bag Material:

• M-shaped pre-made bag with exhaust hole

Packing Speed:

• Up to 30 bags/min (for double row of 6 packages)

Power & Air Requirements

• Power supply: 380V ± 5%, 50Hz, 3-phase, 4-wire (control voltage: DC 24V)
• Installed power: 18 kW
• Operating power: 15 kW
• Air pressure: 0.6–0.7 MPa (air source provided by customer)

Safety & Waste Management

• Safety marks provided according to CE standard

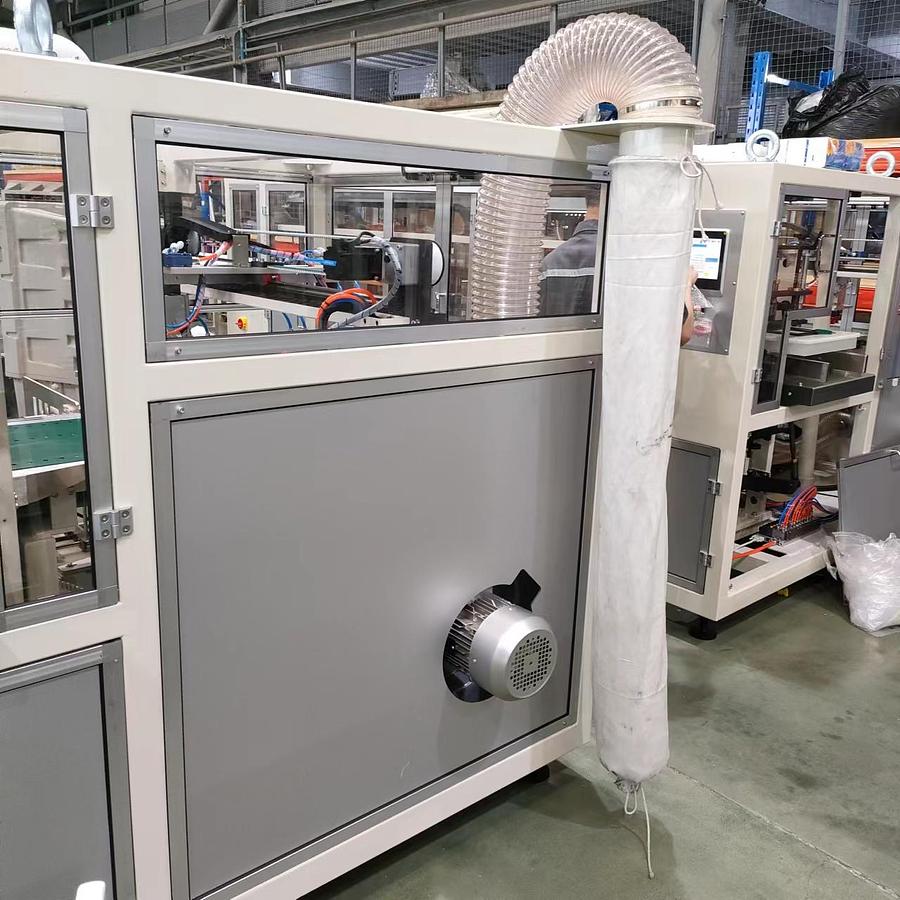

• Bag residue: 25–30 mm of waste film is automatically cut and collected in the waste film box

Key Features

• Supports single and bundle packaging with flexible row configurations
• Uses prefabricated M-shaped bags with exhaust holes for easy, clean packaging
• Slightly higher speed and power compared to TD300AN (30 bags/min vs 25 bags/min, 15 kW vs 10 kW operating power)
• Automatic waste film collection reduces material loss
• Designed for CE-compliant safe operation
