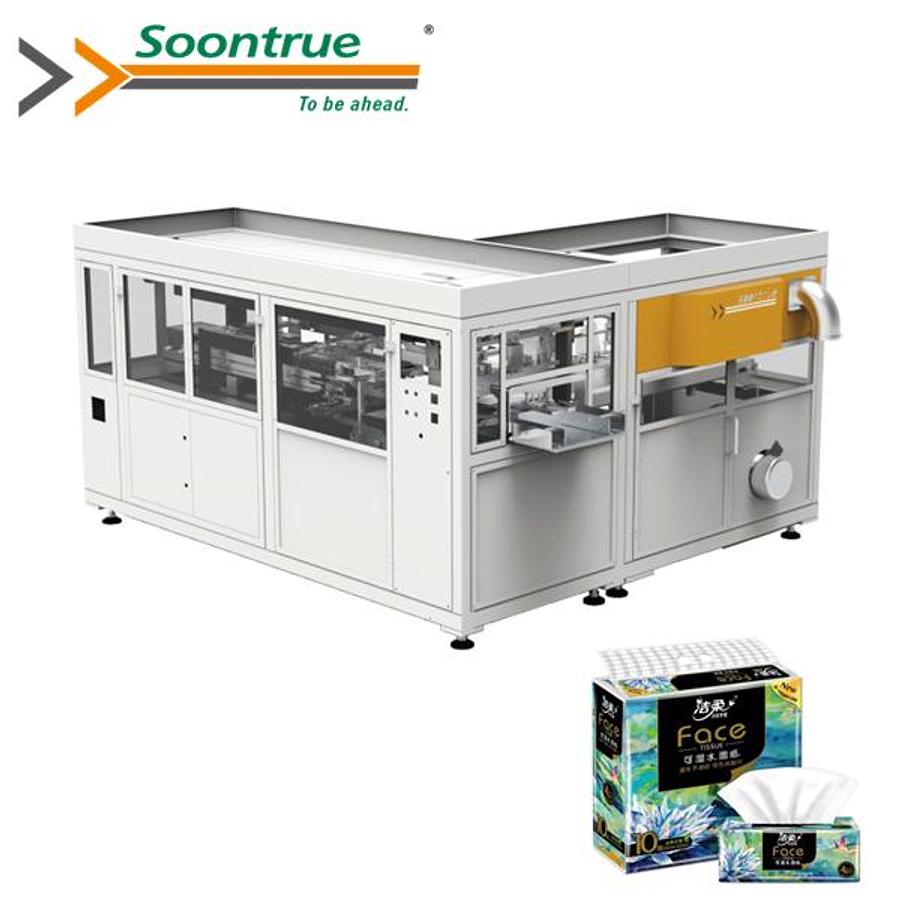

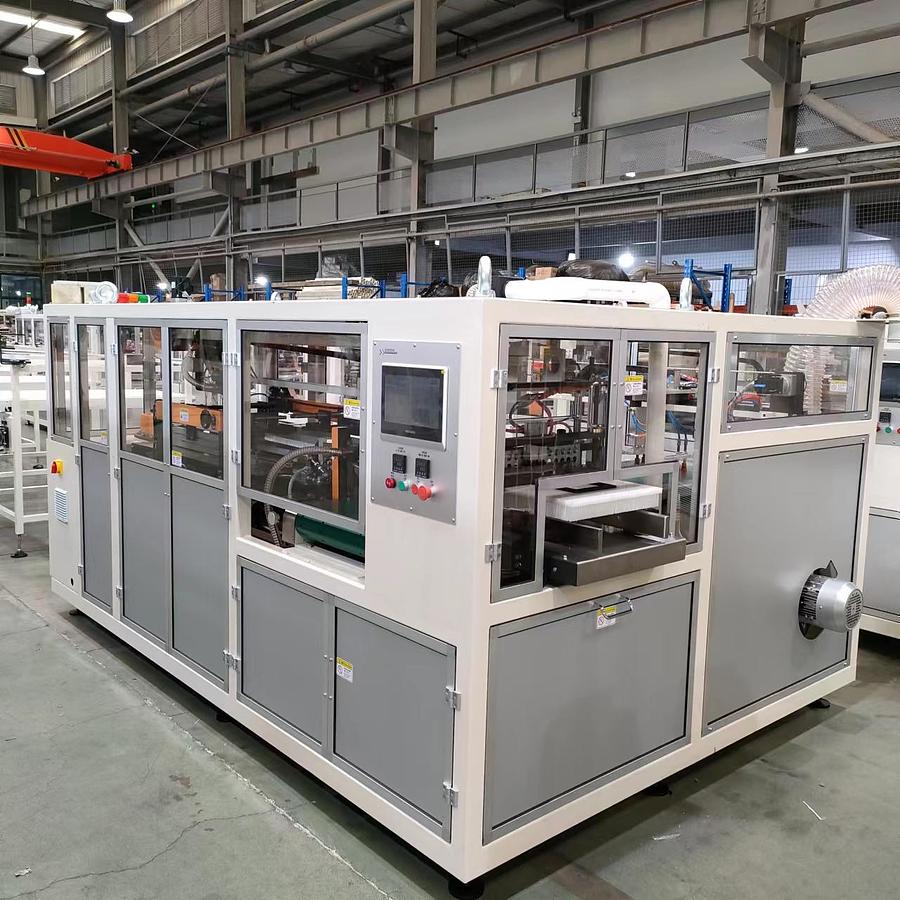

Facial Tissue Paper Bundling Packing Machine TD300AN

Machine Overview

The TD300AN is a high-speed, fully automatic facial tissue single/bundle wrapping machine. It is suitable for packing:

• V-fold hand towels
• Facial tissues
• Square tissues
• Pocket tissues
• Cotton tissues
• Napkins

It supports both single and bundle packaging and is ideal for medium-to-large tissue products.

Packing Specifications

Bundle Size:

• Max bundle length: 550 mm
• Bundle width: 120–420 mm
• Bundle height: 90–250 mm

Packaging Form:

• Single row: 3, 4, 5, or 6 packs
• Double row: 6, 8, 10, or 12 packs

Bag Material:

• M-shaped prefabricated bag with exhaust hole

Packing Speed:

• Up to 25 bags/min (for double row of 6 packages)

Power & Air Requirements

• Power supply: 380V ± 5%, 50Hz, 3-phase, 4-wire (control voltage: DC 24V)
• Installed power: 15 kW
• Operating power: 10 kW
• Air pressure: 0.6–0.7 MPa (air source provided by customer)

Safety & Waste Management

• Safety marks provided according to CE standard
• Bag residue: 25–30 mm of waste film is automatically cut and collected in the waste film box

Key Features

• Supports single and bundle packaging with flexible row configurations
• Uses prefabricated M-shaped bags for easy, clean packaging
• Automatic waste film collection reduces material loss
• Designed for CE-compliant safe operation
