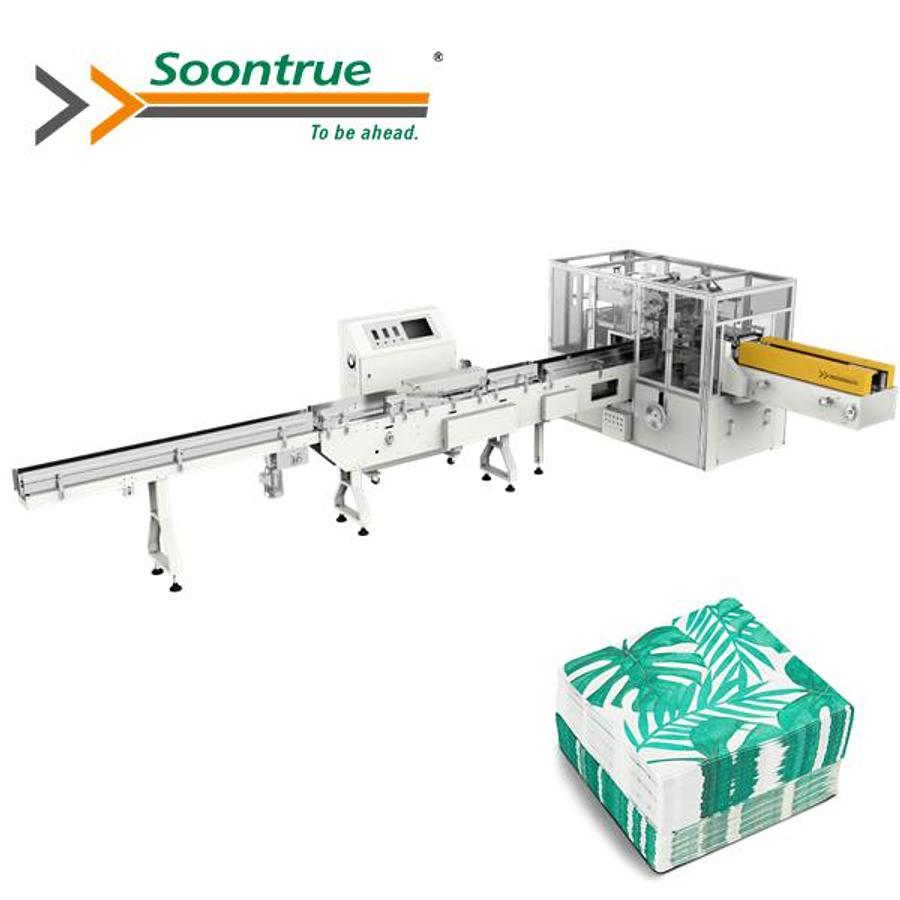

Automatic Napkin Paper Packing Machine ZB300FN

Machine Overview

The ZB290 is a high-speed, fully automatic facial tissue single wrapping machine. It is suitable for packing:

• V-fold hand towels
• Facial tissues
• Square tissues
• Pocket tissues
• Cotton tissues
• Napkins

It uses three-dimensional packaging with CPP (double heat sealing film).

Technical Specifications

Packing Form:

• Three-dimensional package

Packing Material:

• CPP (Double heat sealing film)

Packing Size:

• Length: 100–200 mm
• Width: 70–110 mm
• Height: 20–60 mm

Maximum Packing Size:

• L × W × H: 200 × 110 × 60 mm

Packing Speed:

• 120 packs per minute

Power Requirements:

• Heating power: 5.4 kW
• Motor power: 3.87 kW
• Total power: 10 kW
• Power type: 380V 50Hz (Transformer available)

Air Supply:

• Pressure: 0.5–0.8 MPa
• Air consumption: 200 L/min

Machine Dimensions & Weight:

• Overall dimensions (L × W × H): 6239 × 3937 × 1315 mm
• Weight: ~3,000 kg
