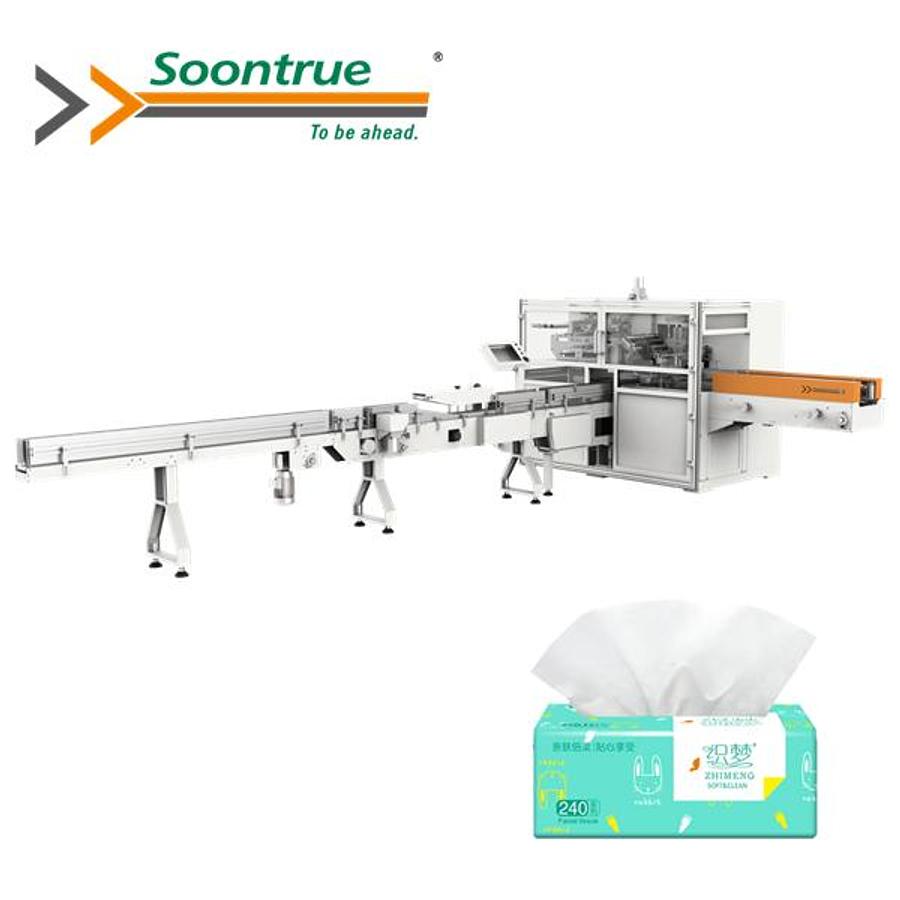

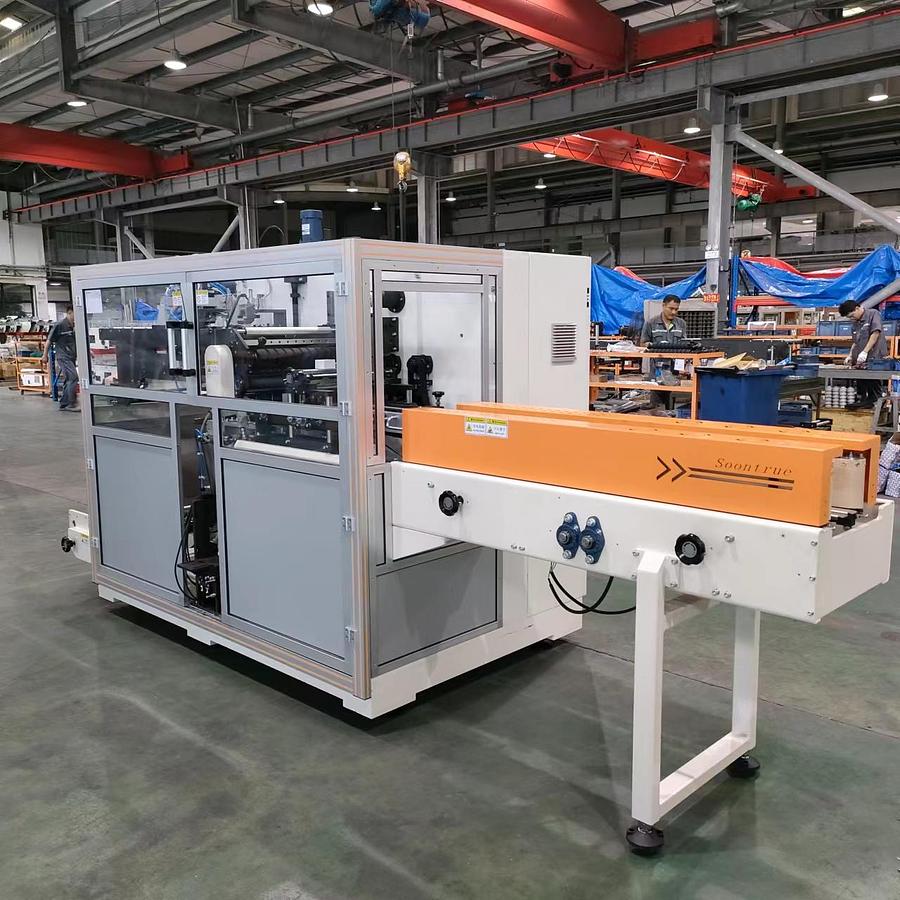

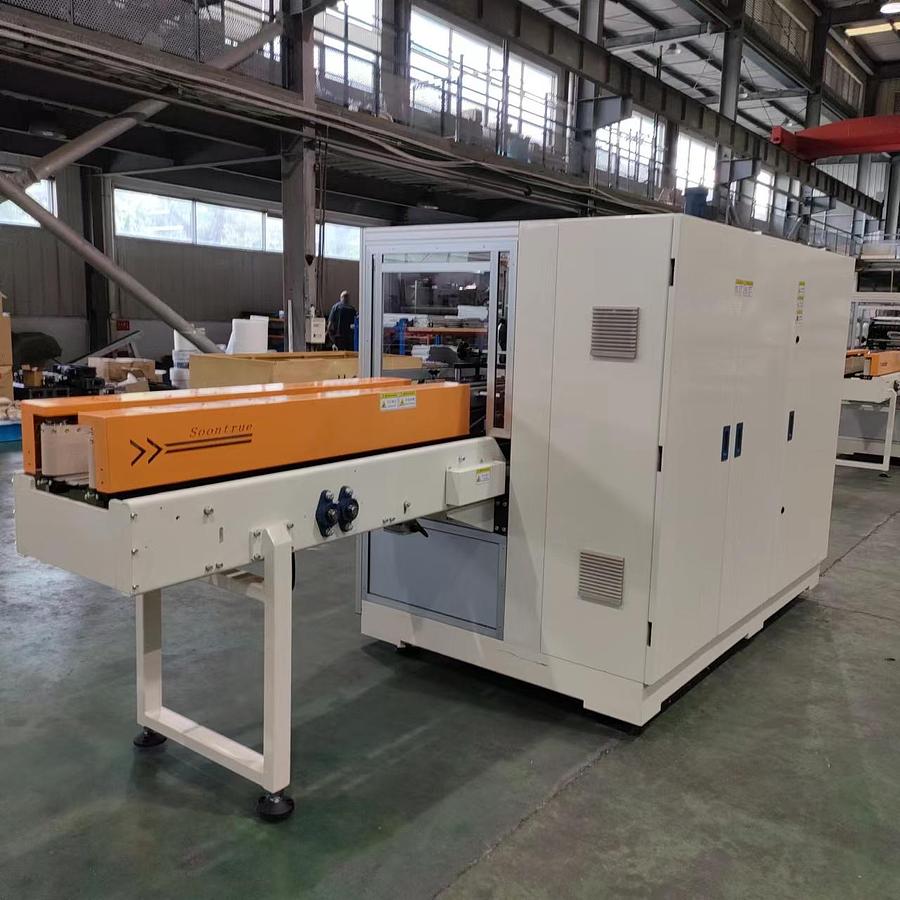

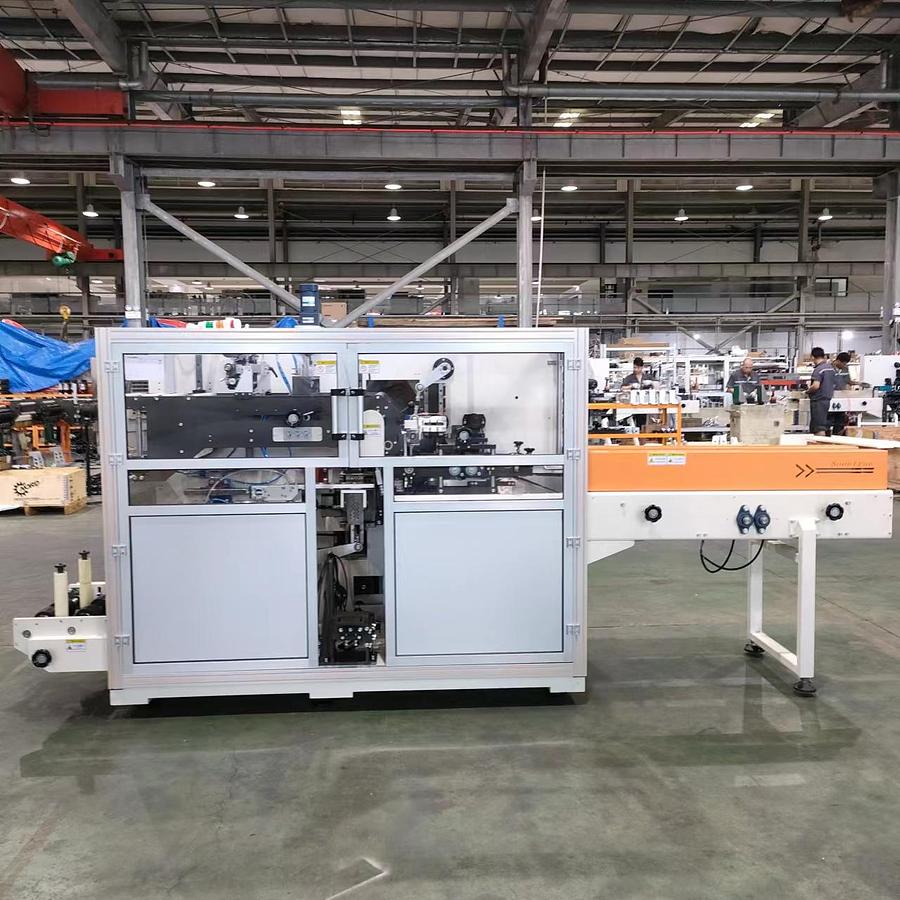

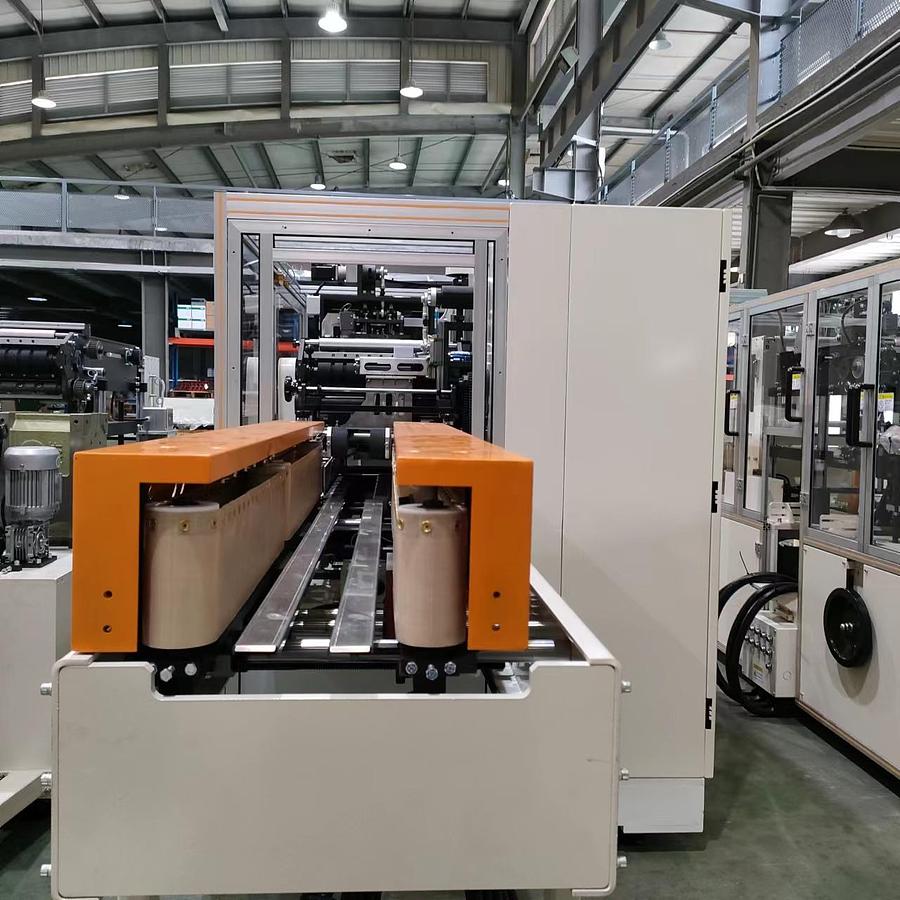

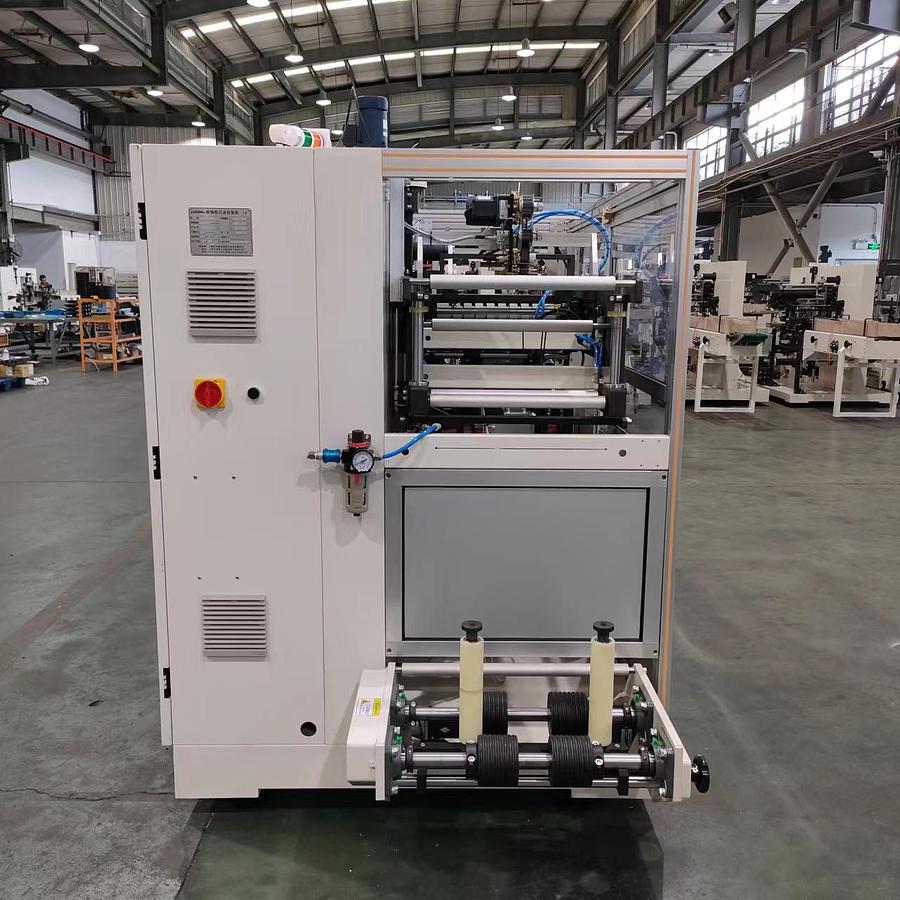

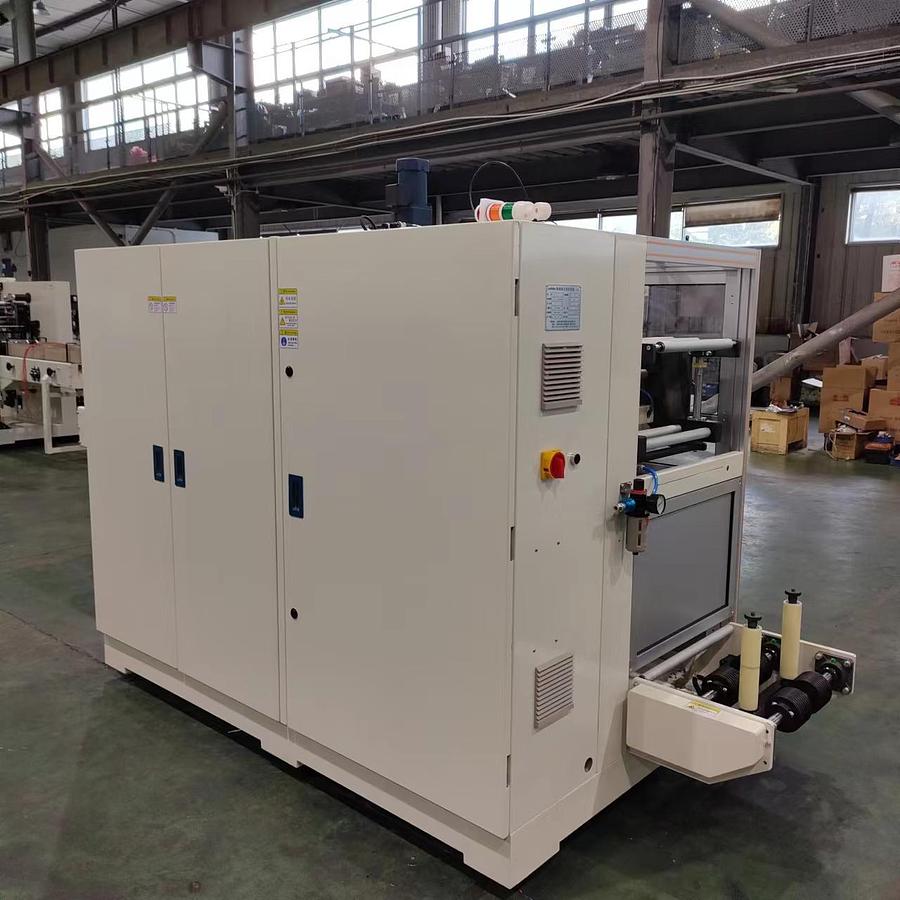

High Speed Tissue Paper Packing Machine ZB300HG

Machine Overview

The Soontrue ZB300HG is a high-speed, fully automatic facial tissue single wrapping machine. It is suitable for packing a variety of tissue products, including:

• V-fold hand towels
• Facial tissues
• Square tissues
• Pocket tissues
• Cotton tissues
• Napkins

It uses three-dimensional packaging and CPP (double heat sealing film).

Technical Specifications

Packing Form:

• Three-dimensional package

Packing Material:

• CPP (Double heat sealing film)

Packing Size:

• Length: 80–200 mm
• Width: 80–110 mm
• Height: 30–100 mm

Maximum Packing Size:

• L × W × H: 200 × 110 × 100 mm

Packing Speed:

• Up to 160 packs per minute

Power Requirements:

• Heating power: 5.4 kW
• Motor power: 10 kW
• Total power: 16 kW
• Power type: 380V 50Hz (Transformer available)

Air Supply:

• Pressure: 0.5–0.8 MPa

Machine Dimensions & Weight:

• Overall dimensions (L × W × H): 6100 × 3790 × 1720 mm
• Weight: ~3,200 kg

Noise Level:

• ≤78 dB
