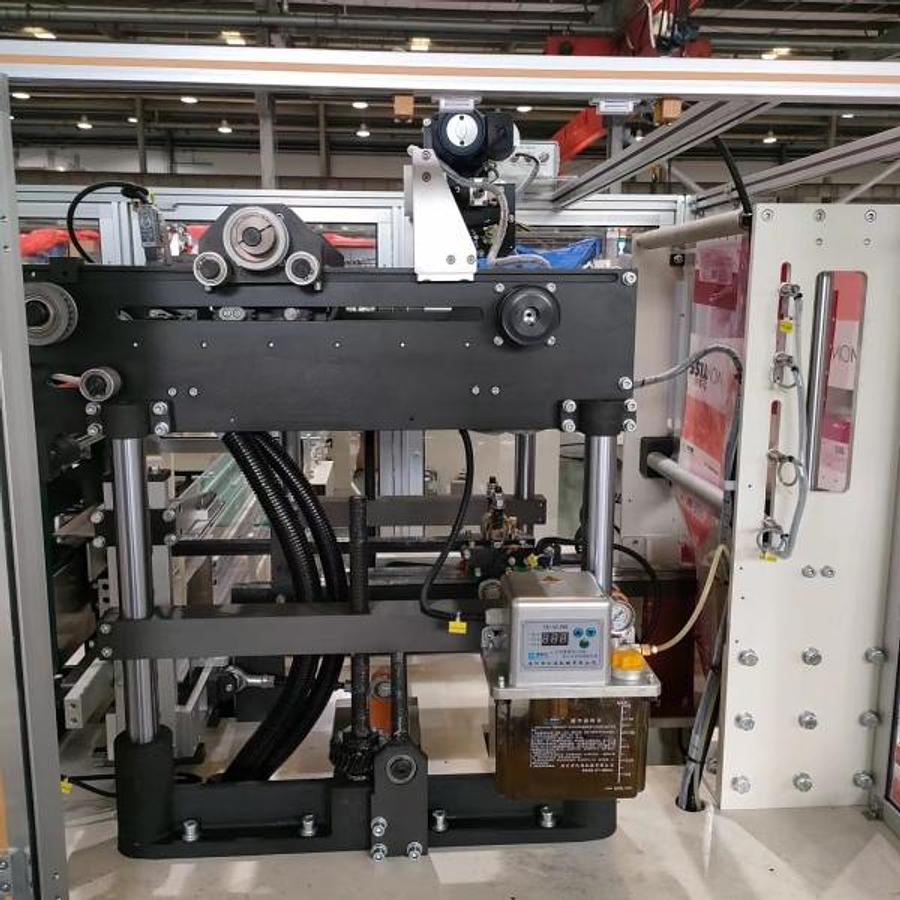

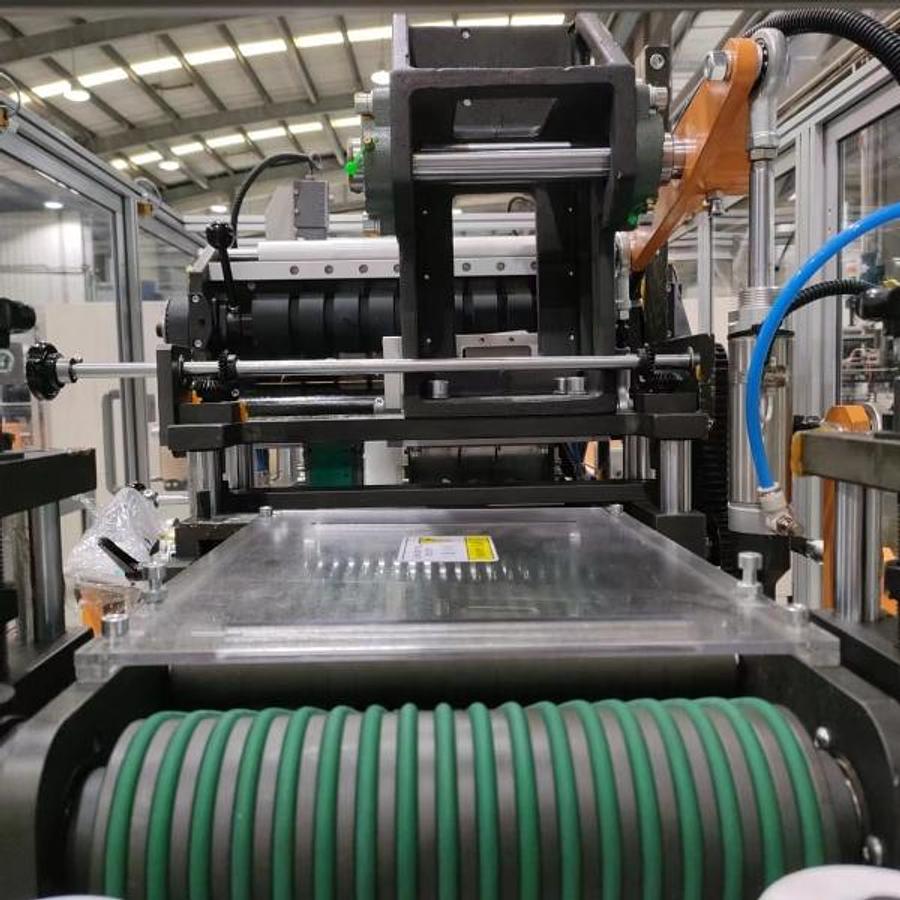

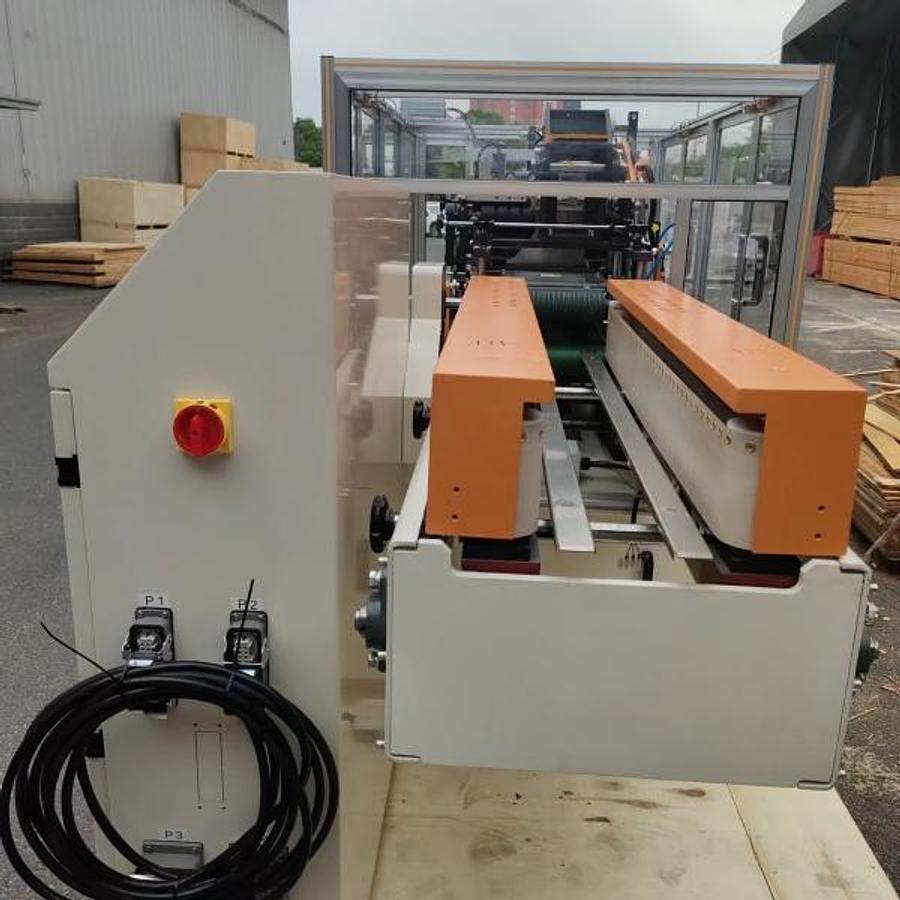

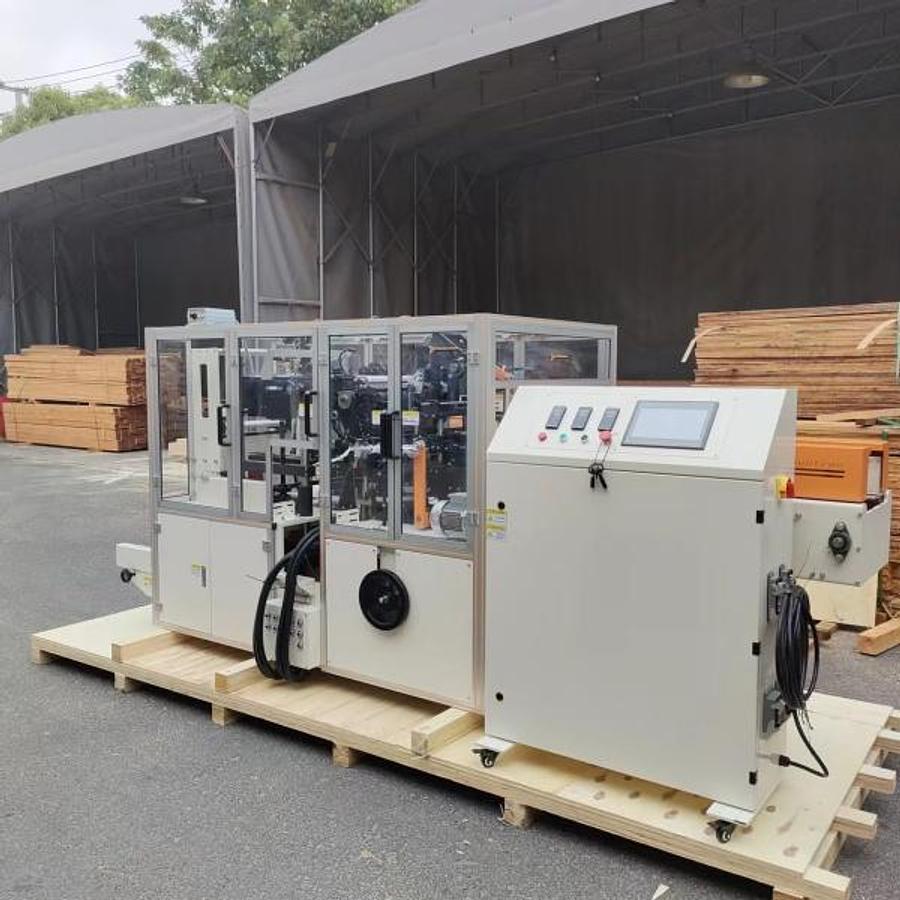

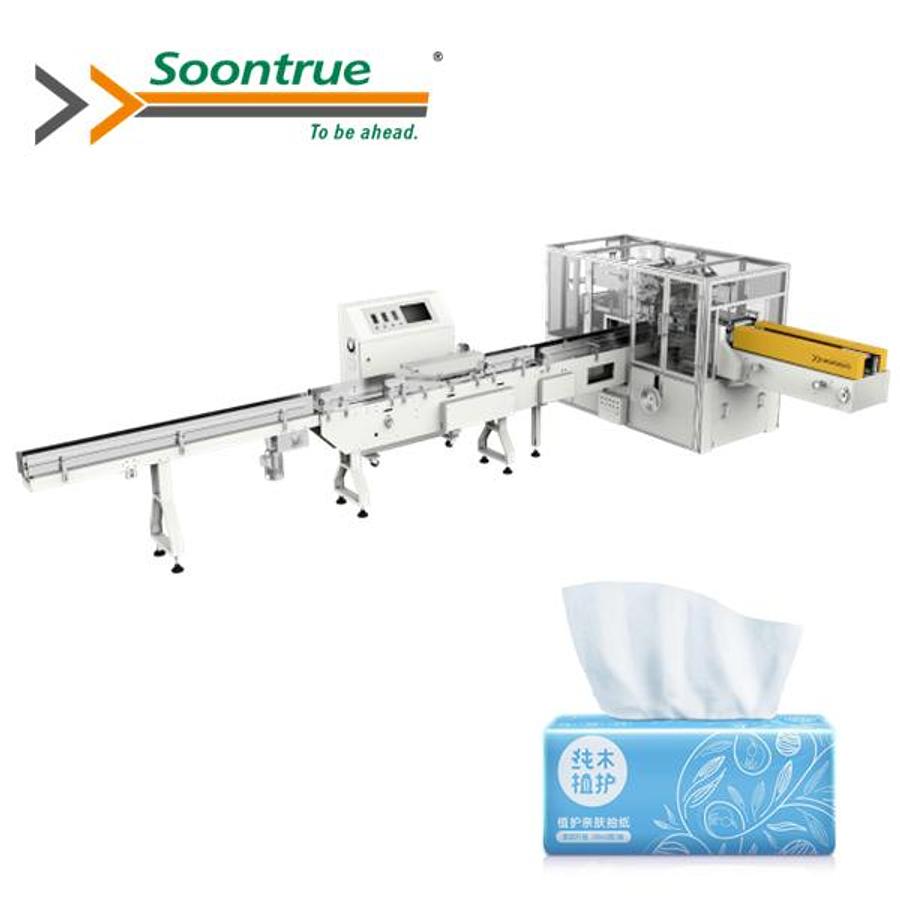

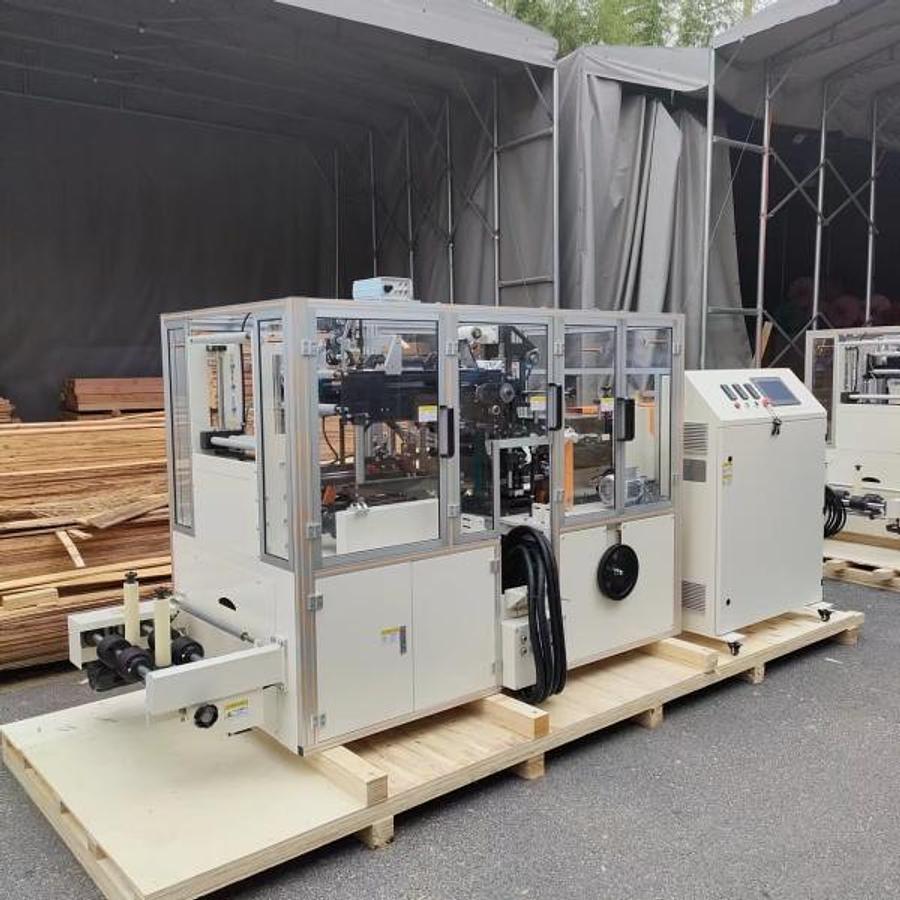

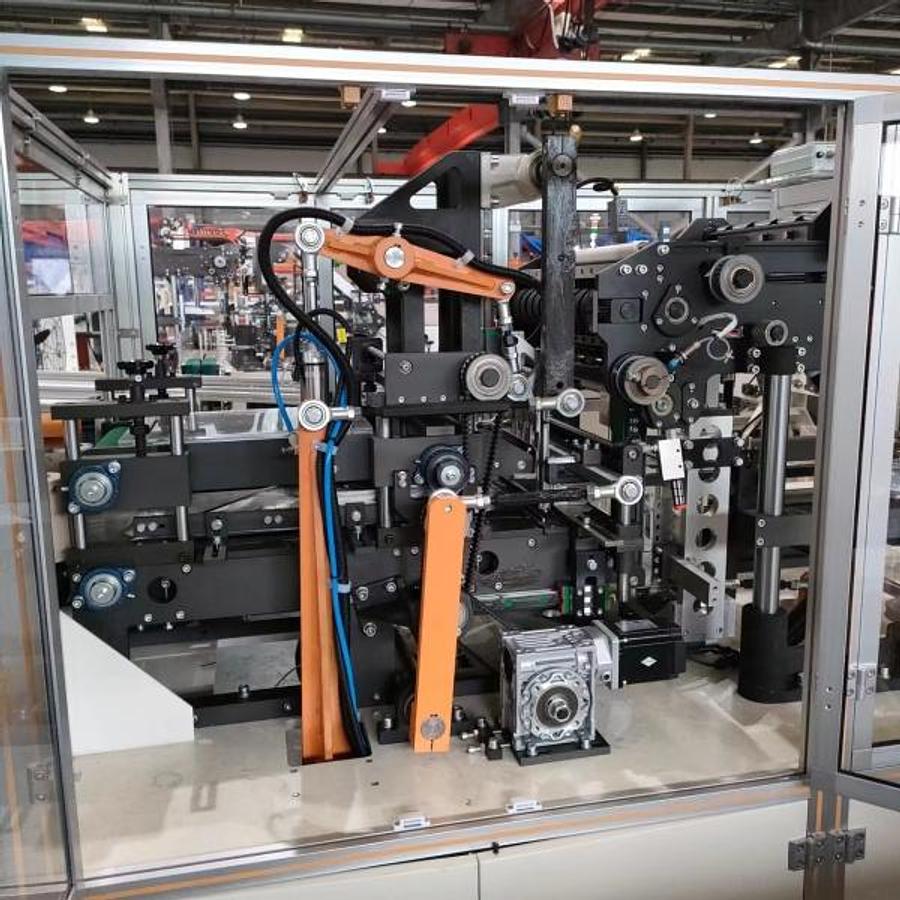

Soontrue Automatic Soft Facial Tissue Packing Machine

Model: ZB300FN

Product Overview

The Soontrue ZB300FN is a high-speed, fully automatic facial tissue wrapping machine designed for packaging a wide range of tissue products. It is suitable for V-fold hand towels, facial tissues, square tissues, pocket tissues, cotton tissues, napkins, and similar soft paper products. The machine provides three-dimensional packaging using CPP (double heat sealing film), ensuring a neat, reliable, and attractive pack finish.

Technical Specifications

• Packing Form: Three-dimensional package

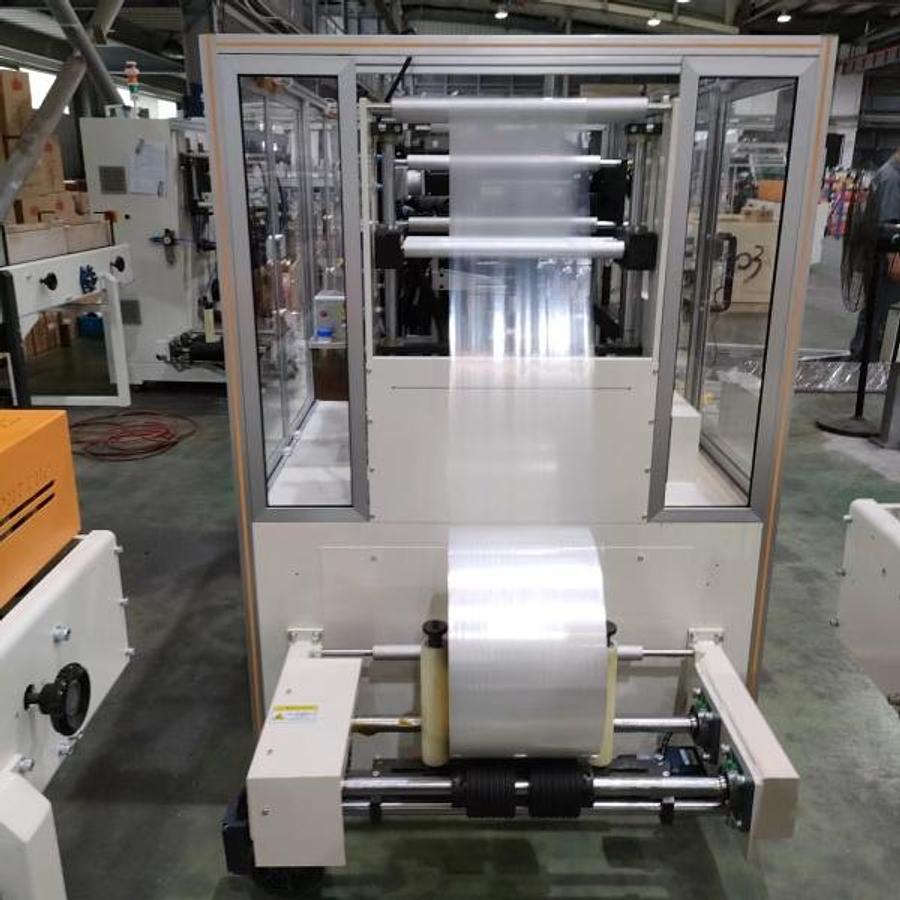

• Applicable Packing Material: CPP (Double heat sealing film)
• Packing Size Range:
• Length: 90–230 mm
• Width: 80–150 mm
• Height: 30–100 mm
• Max. Packing Size: 230 × 150 × 100 mm
• Packing Speed: Up to 110 packs/min

Power & Air Supply

• Heating Power: 5.4 kW
• Motor Power: 4.71 kW
• Total Power: 11 kW
• Power Supply: 380V / 50Hz (transformer available)
• Air Supply: 0.5–0.8 Mpa
• Air Consumption: 200 L/min

Machine Dimensions & Weight

• Overall Dimensions (L×W×H): 6570 × 3720 × 1525 mm
• Machine Weight: Approx. 3,500 kg
