Crisp Sugar Production Line HTL-T408

HTL-T408 Beijing Crisp Candy Production Line

Product Description

The HTL-T408 is a fully automatic and integrated production line specifically designed for the industrial manufacturing of die-formed Beijing Crisp hard candies. Engineered for efficiency, consistency, and hygiene, this production line streamlines all stages of candy production—from raw sugar handling to finished product packaging.

Built with advanced automation, the HTL-T408 not only reduces manual labor but also ensures uniform product quality and improved productivity. It is particularly well-suited for traditional Chinese candy manufacturers and modern confectionery producers seeking high-output solutions for textured, layered, and filled crisp sugar products.

Scope of Application

This production line is ideal for producing various types of crisp and layered hard candies, including:

• Beijing Crisp Candy
• Xu Fu Ke Crisp Sugar
• Sandwich Hard Candy

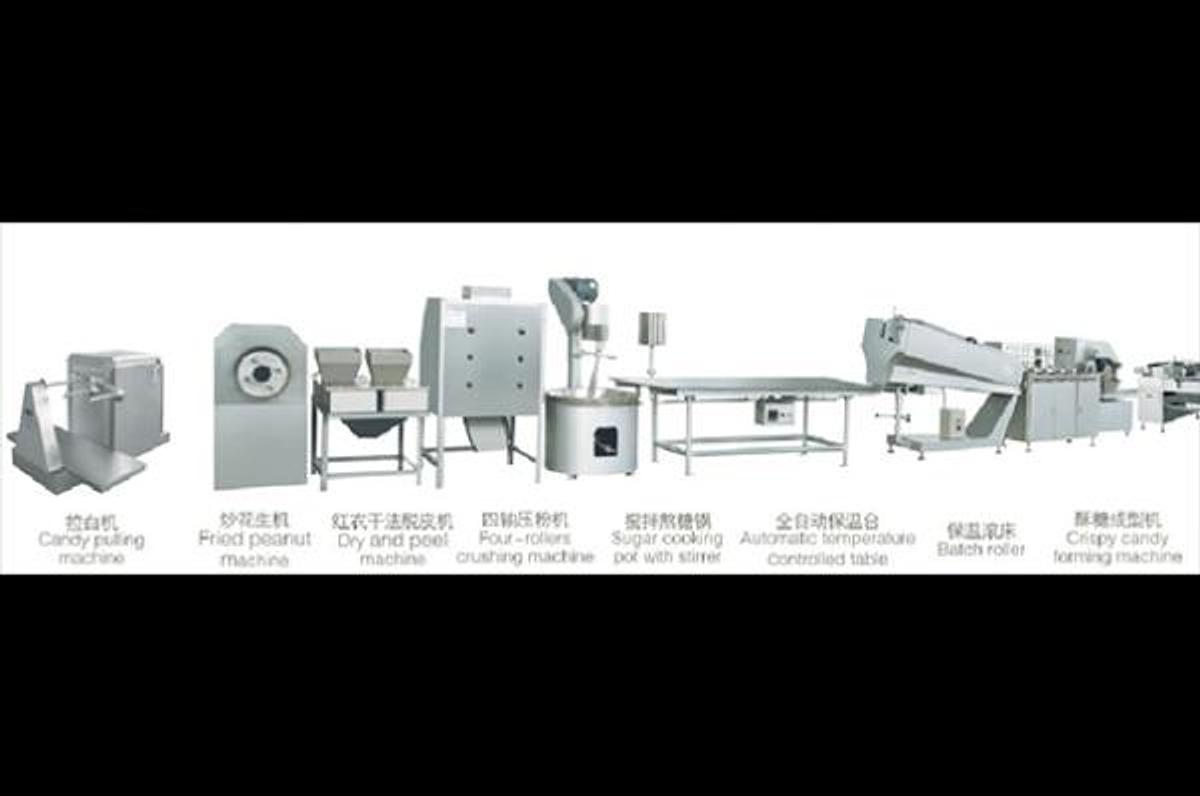

Production Process Flow

1. Sugar feeding
2. Syrup transfer
3. Vacuum continuous cooking (high-temperature syrup preparation)
4. Cooling into sugar paste
5. Kneading and pulling to whiten the paste
6. Sugar coating and rolling
7. Forming sugar strips
8. Stamping and shaping the candies
9. Cooling and conveying of finished crisp sugar
10. Packaging

Optional peanut preparation process (for peanut-filled varieties):

• Stir-frying peanuts
• Peeling and powdering
• Mixing with syrup
• Thermal insulation wrapping

Technical Specifications

The HTL-T408 production line is designed with industrial-scale output in mind. It offers a production capacity ranging from 150 to 250 kilograms per hour, making it well-suited for medium to high-volume candy manufacturing operations. The entire system operates at a total power consumption of 20 kW, ensuring a balance between performance and energy efficiency.

In terms of footprint, the machine has an overall size of 13,700 mm in length, 1200 mm in width, and 2220 mm in height, making it a robust and space-conscious solution for fully automated crisp candy production.
