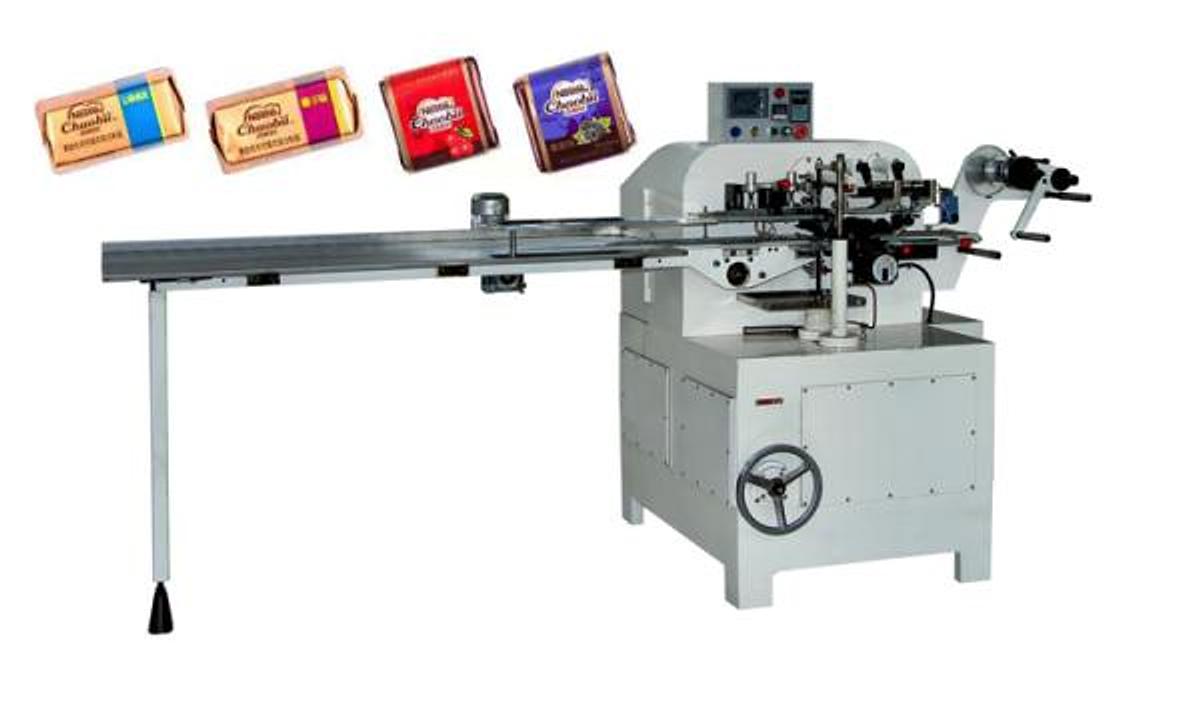

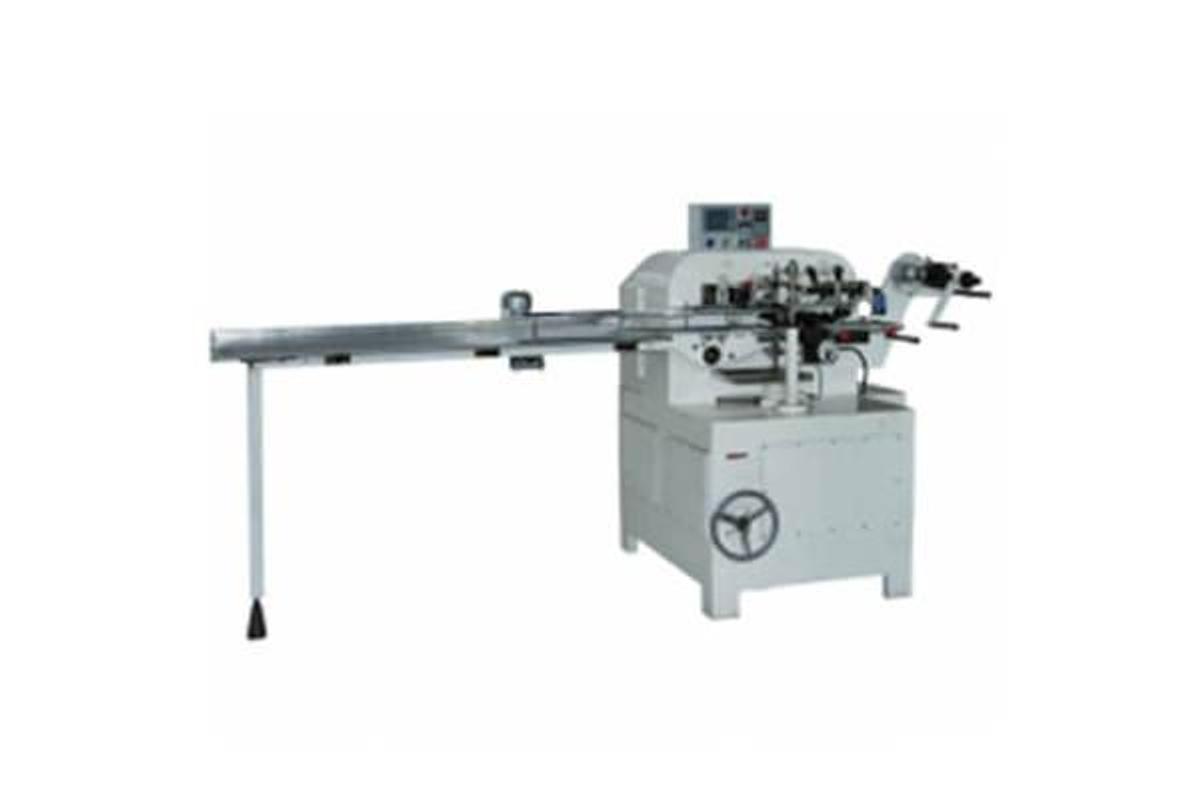

Chocolate Folding Packing Machine HTL-2008

Technical Specifications – Multi-Angle Chocolate Packaging Machine

Purpose and Function

This machine is specifically designed to deliver a high-quality packaging effect for chocolates with multi-angled surfaces, such as terrace-shaped chocolates. It ensures uniform and secure wrapping using heat-sealable film, enhancing both product presentation and protection.

Key features include:

• Automatic color code tracking for precise alignment of patterned films
• PLC touch screen interface for real-time monitoring and control of:
• Film length
• Packaging speed
• Production counting

The machine’s intelligent system guarantees consistent wrapping, even for products with varying angles, making it ideal for premium chocolate packaging lines.

Technical Parameters

• Product Size Range:
• Length: 10–50 mm
• Width: 10–30 mm
• Height: 5–25 mm
• Production Output:
• 80–150 blocks per minute
• Motor Power:
• 0.75 kW
• Voltage:
• 380V / 50Hz
• Machine Dimensions (L × W × H):
• 2300 × 1230 × 1450 mm
• Machine Weight:
• 800 kg
