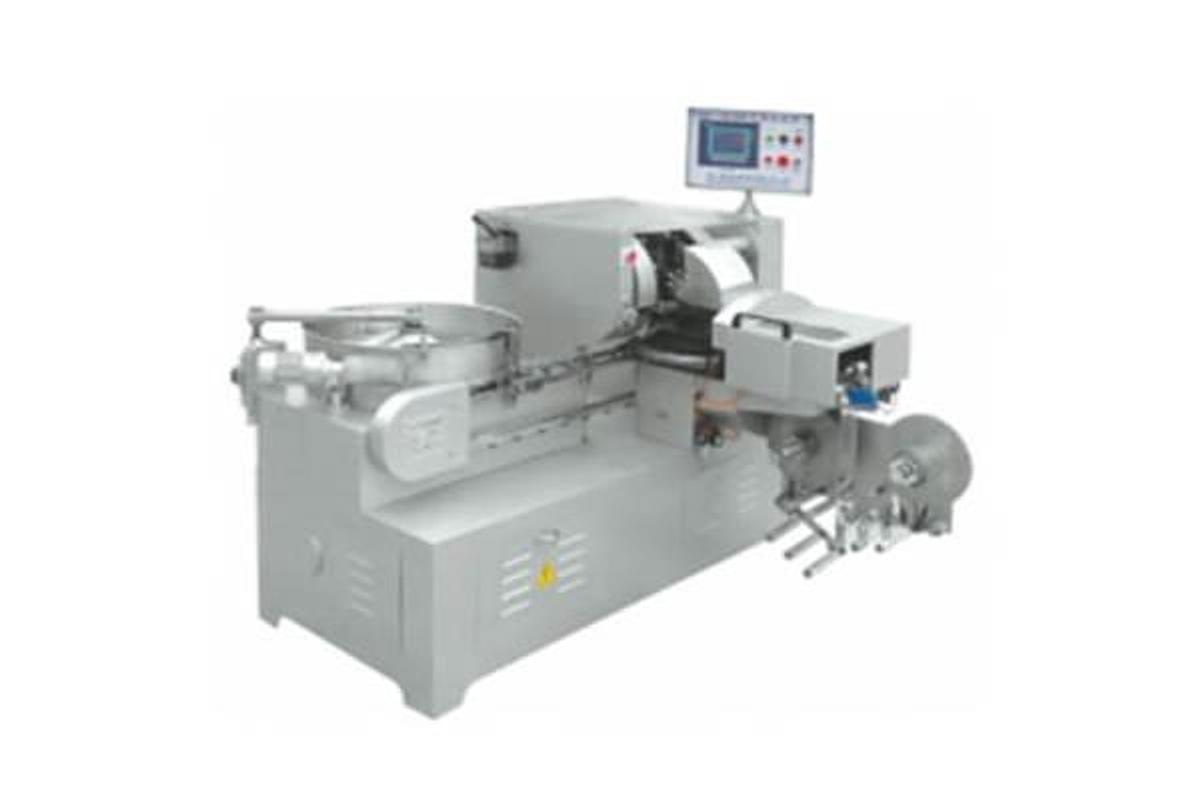

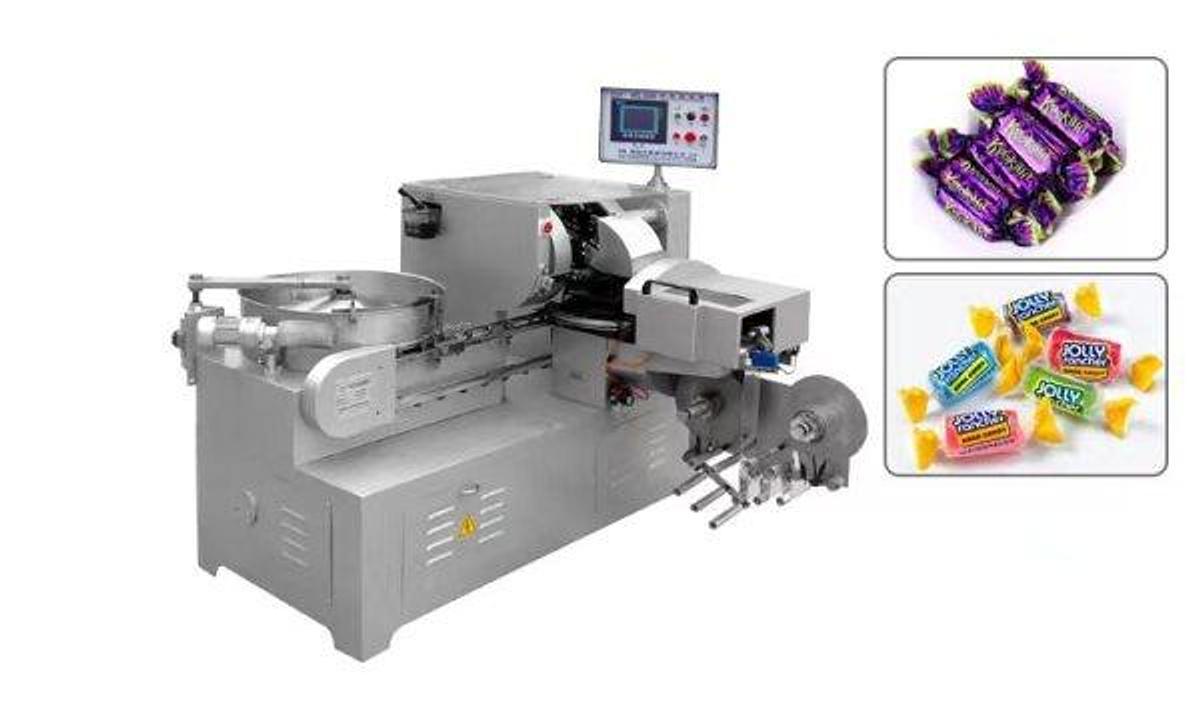

Large Size Double Twist Wrapping machine Machine HTL-S360

Technical Specifications – Model HTL-S360

The HTL-S360 is a high-performance double torsion (double twist) packaging machine designed for fast and efficient wrapping of solid, regularly shaped products. With its compact structure, low-noise operation, and stable performance, it represents a new generation of automatic packaging equipment tailored for both productivity and precision.

The machine features a wide packaging range, producing neatly sealed and tightly wrapped packages. It includes a computer-controlled automatic feeding system with a rational sugar tray design, and supports both single-layer and double-layer packaging films. This intelligent control ensures a zero-empty-package rate, optimizing both material usage and efficiency.

Equipped with an energy-efficient frequency conversion motor for stepless speed regulation, the HTL-S360 not only reduces energy consumption but also significantly improves output and lowers labor costs. It meets advanced industry standards and is currently one of the most widely adopted models of its kind in the Chinese market.

Application Scope

Suitable for the double twist packaging of:

• Hard and soft candies
• Hawthorn slices
• Chocolate
• Other solid, regularly shaped food items

Machine Specifications

• Model: HTL-S360
• Production Capacity: 150–480 bags per minute
• Package Size Range:
• Length: 15–60 mm
• Width: 12–30 mm
• Thickness: 5–25 mm
• Compatible Packaging Materials:
• Cellophane, PVC, polypropylene wax paper, machine kink film, composite films, etc.
• Total Power: 4 kW
• Power Supply: 380V / 50Hz (3-phase)
• Machine Dimensions: 1800 × 1500 × 1800 mm
• Total Weight: 1500 kg
