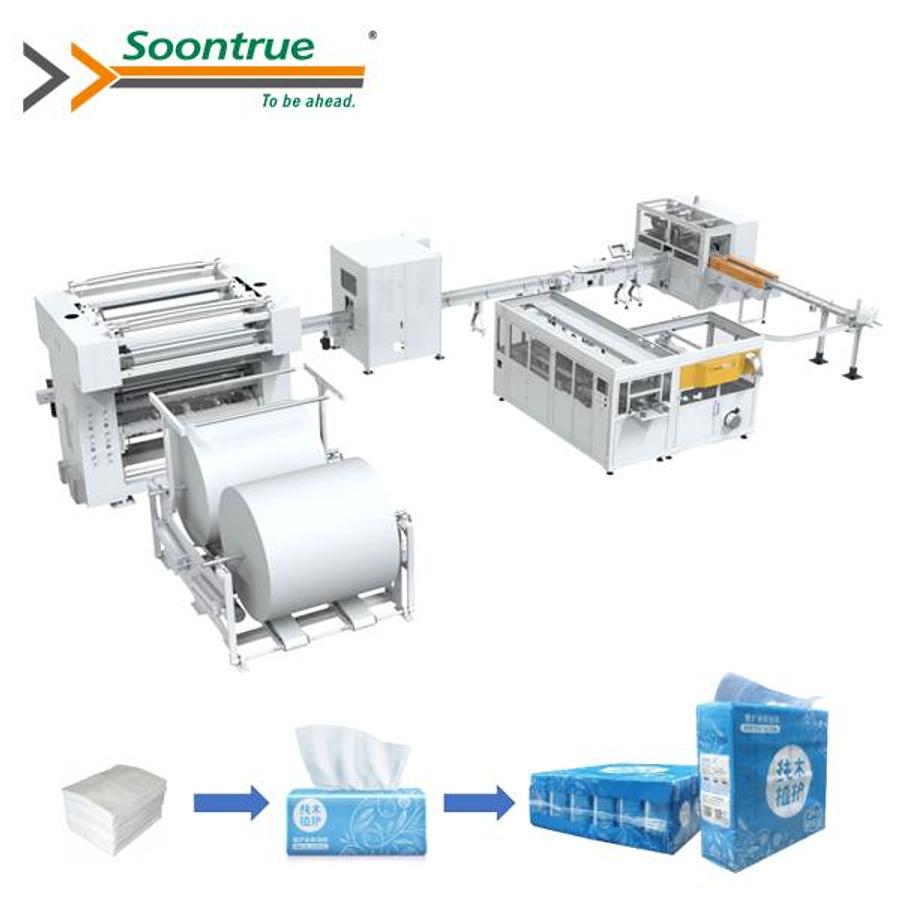

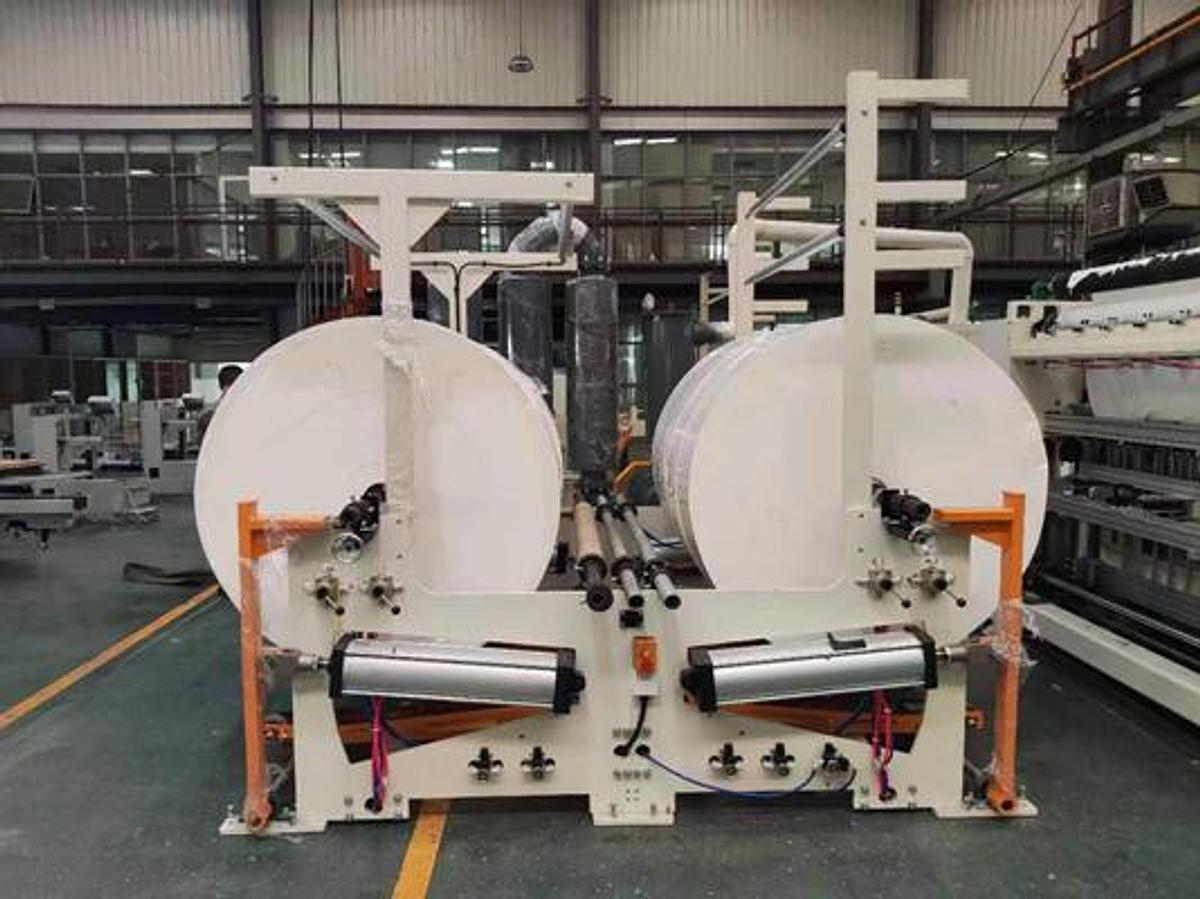

Tissue Paper Folding Machine

Production speed

100-120 m/min

14 logs/min

100-120m/min

12 logs/min

Ordinary width

1430mm(Max)

1910mm(Max)

Jumbo roll layers

2-4 plies

2-4 plies

Jumbo roll

Double plies,

each ply 13.5-18 gsm;

3&4plies: each ply 11-15gsm

Double plies,

each ply 13.5-18gsm;

3&4plies: each ply 11-15gsm

Design log qty

13 logs/min

14 logs/min

Open size (mm)

175mm(+1, -2)

(if different ,please specify)

200mm

(+1, -2) (if different ,please specify)

Folded size(mm)

87.5mm(+1, -1)

(if different ,please specify)

100mm(+2, -0)

(if different ,please specify)

Folding part motor power (KW)

5.5KW

5.5KW

Vacuum pump power(KW)

30KW

37KW

Power type

380v 50Hz

(if different ,please specify)

380v 50Hz

(if different ,please specify)

Control voltage (V)

24

24

Compressed air(MPa)

≥0.6

≥0.6
