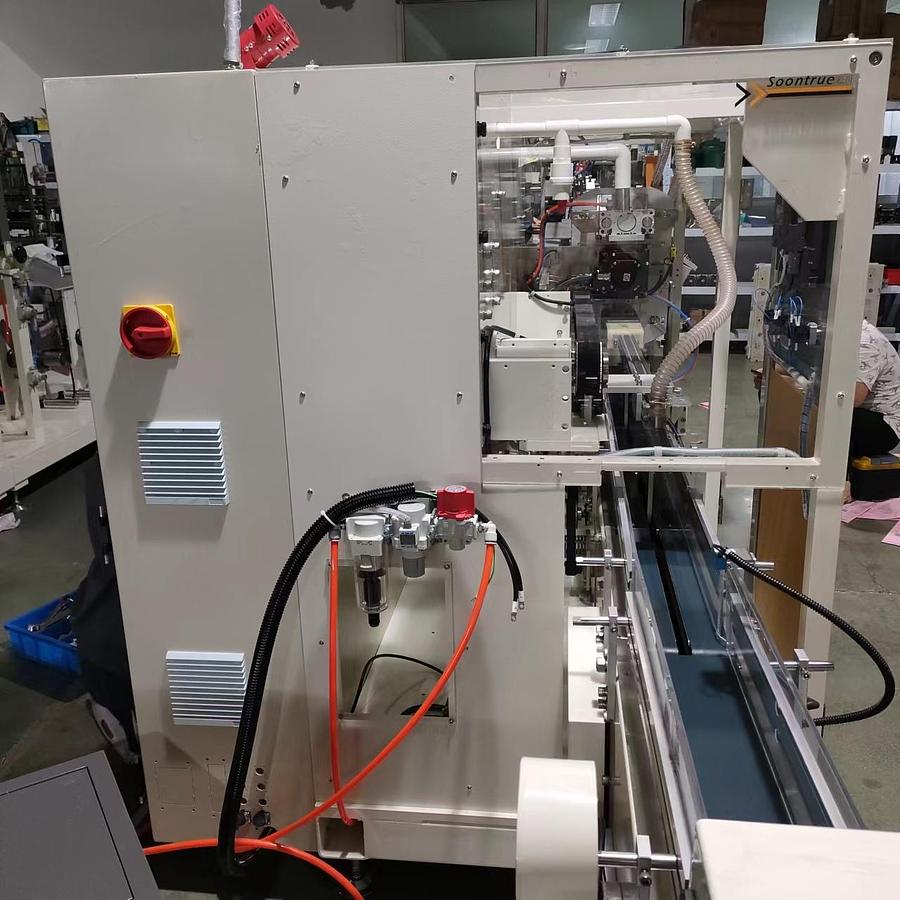

Top Quality Cotton Tissue Folding Machinery

Model: ZB800

Product Overview

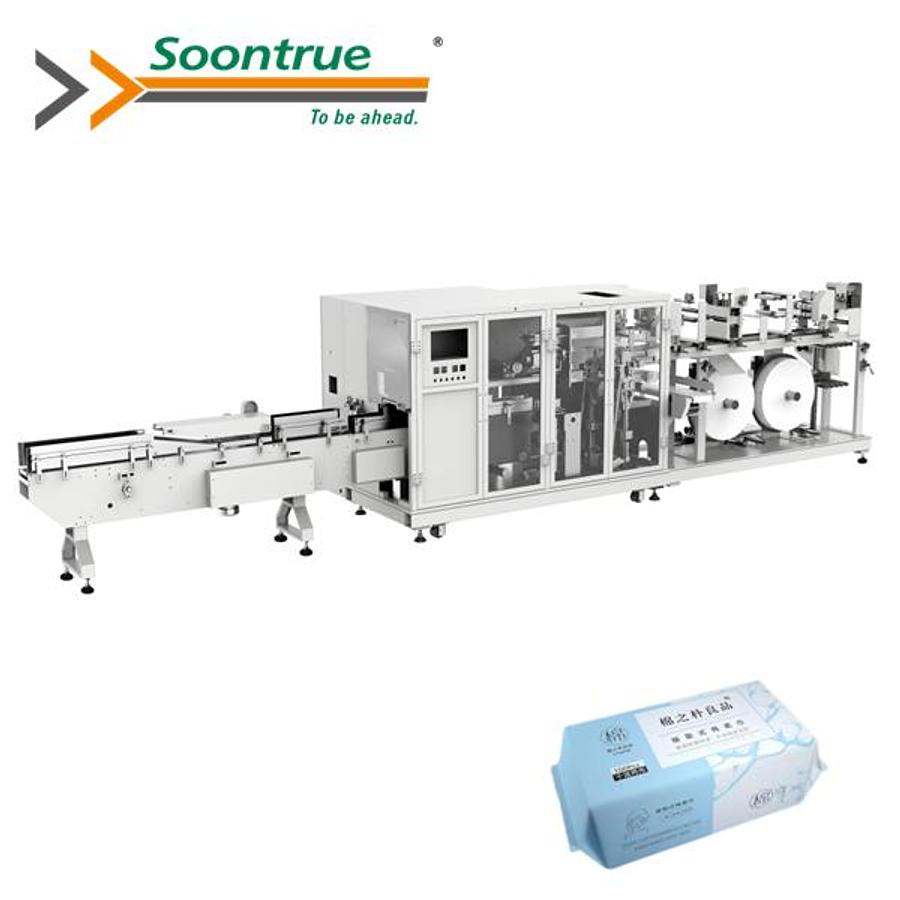

The ZB800 is a fully automated machine designed for the production and packaging of facial tissues, cotton tissues, and hand towels. It can be seamlessly integrated with a tissue packing machine to form a complete production line, ensuring efficiency, hygiene, and consistent product quality.

Technical Specifications

• Packaging Film:
• Thickness: 0.04 – 0.10 mm
• Material: PE double-sided heat sealing film
• Speed:
• Design speed: 60 packs/min
• Stable packing speed: 45–60 packs/min (depending on product characteristics)
• Power:
• Motor power: 11 kW
• Main heating power: 3.0 kW
• Power type: 380V (3 Phase, 4-line system)
• Product Specifications:
• Length: 100 – 200 mm
• Width: 65 – 100 mm
• Height: 20 – 100 mm
• Machine Weight: 3000 kg
• Pass Rate: ≥97%
• Noise Level: ≤75 dB
• Compressed Air Requirement:
• Pressure: 6 kg/cm²
• Consumption: 0.45 m³/min
• Dimensions (L×W×H): 7400 × 1000 × 2200 mm

Key Features

• High-speed production with stable operation up to 60 packs/min.
• Compatible with multiple tissue types – facial tissue, cotton tissue, hand towels.
• Full automation – folding, cutting, and packing in one streamlined process.
• Energy efficient with optimized heating and motor systems.
• Consistent quality – ≥97% qualified rate with precise film sealing.
• Low-noise design ensures a quiet and worker-friendly production environment.
