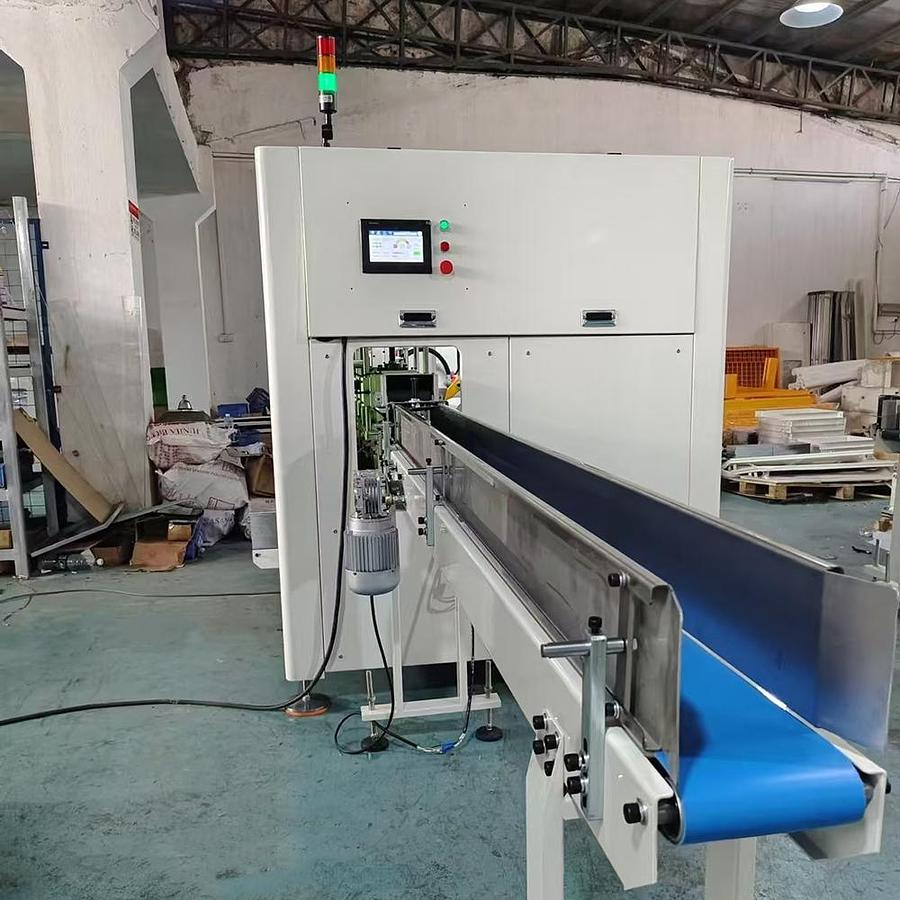

Main Machine – High-Speed Rotary Cutter

Technical Specifications

1. Cutting Range:

• Length: 90–220 mm
• Width: 80–120 mm
• Height: 25–120 mm

1. Cutting Speed: 80–320 cuts/min
2. Motor Design: Oversized motors for enhanced stability and reliability
3. Control System: PLC + Servo Drive + HMI
4. Feeding Method: Servo-driven with timing belt and conveyor system
5. Cutting Type: 360° continuous rotary cutting
6. Head & Tail Cutting: Built-in trimming function, 15–25 mm
7. Cutting Accuracy: Error < ±1 mm
8. Grinding System: Automatic grinding with fixed-angle grind wheel and dust extraction system
9. Cutter Diameter: Ø610 mm
10. Air Supply: 0.5 Mpa (provided by buyer)
11. Power Supply: 380V, 50Hz
12. Total Power: 7 kW
13. Machine Size: 1529 × 1690 × 1615 mm (L×W×H)
14. Weight: 1.5 tons
15. Color: Creamy white (standard)

Core Components

• Servo System, PLC, HMI: INOVANCE (China)
• Bearings: HRB / NSK series (Japan)
• Timing Belt: Japan LSD
• Sensors: Germany SICK / Leuze or Japan Panasonic
• Inverter & Motor Driver: INOVANCE

Safety & Design Features

• Integrated electrical cabinet for safe, damage-free wiring
• Organic glass guard with wire mesh for operator safety
• Automatic stop function when downstream packaging machine malfunctions
• Dust collection system ensures cleaner operation
