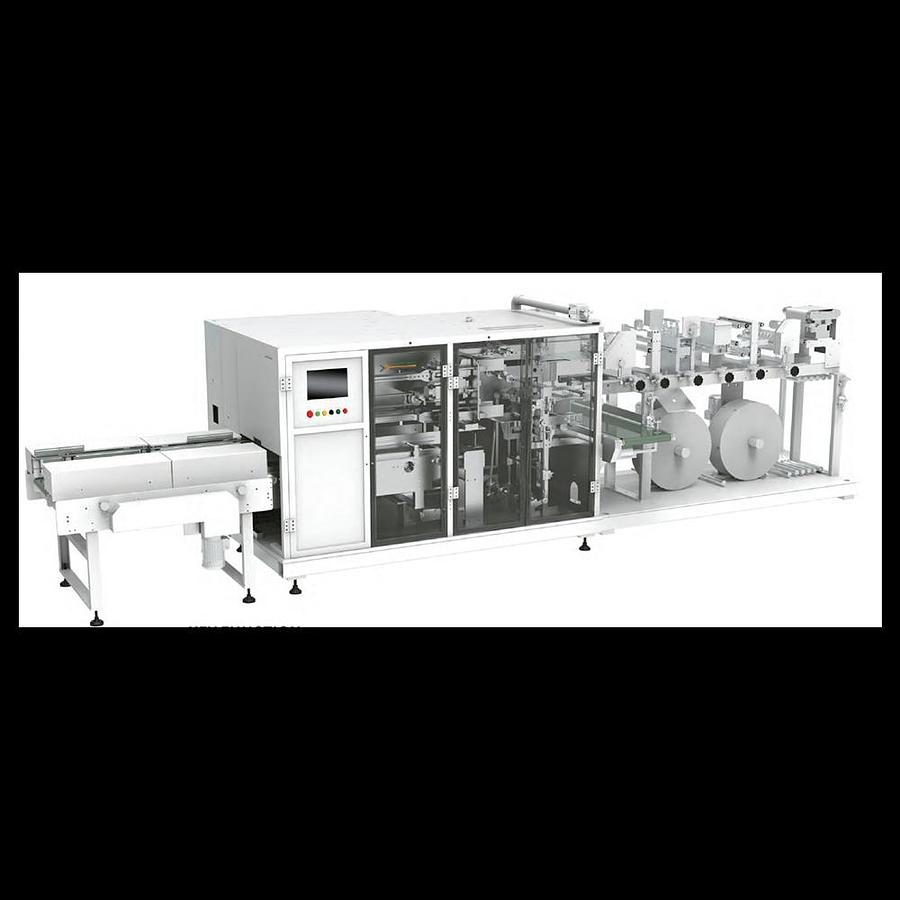

Soontrue Automatic Packaging Machine

Model: ZB800MC

Main Technical Parameters

Film & Packaging

• Max. Film Diameter: φ600 mm
• Film Core Diameter: φ76–80 mm
• Film Thickness: 0.06–0.09 mm
• Recommended Film Material: PE double-sided heat sealing film (other heat-sealable composite films also compatible)

Specifications (Pack Size Range)

• Length: 100–250 mm
• Width: 100–230 mm
• Height: 70–90 mm
• Pass Rate: ≥97%

Speed & Performance

• Design Speed: 50 packs/min
• Packing Speed: 30–45 packs/min (depending on product characteristics)
• Noise Level: ≤75 dB

Power & Air Supply

• Motor Power: 11 kW
• Main Heating Power: 3.0 kW
• Total Power Supply: 380V (3 Phase 4-line system)
• Compressed Air Requirement: 6 kg/cm², 0.45 m³/min

Machine Dimensions & Weight

• Overall Dimensions (L×W×H): 7000 × 1000 × 2200 mm
• Machine Weight: ~3000 kg

Main Electrical Configuration

1. PLC – Mitsubishi (Japan), Model: L08H CPU – 1 Set
2. High-speed Position Module – Mitsubishi (Japan), Model: LD77MS16 – 1 Set
3. Servo Drivers – Mitsubishi (Japan)

• MR-JE-200B – 2 Sets
• MR-JE-70B – 3 Sets
• MR-JE-40B – 5 Sets

1. Servo Motors – Mitsubishi (Japan)

• HG-SN152J-S100 – 2 Sets
• HG-KN73J-S100 – 3 Sets
• HG-KN43J-S100 – 5 Sets

1. Power Supply – Mitsubishi (Japan), Model: DRP-120-24 – 2 Sets
2. Human-Machine Interface (HMI) – Mitsubishi (Japan), Model: L08H CPU – 1 Set
3. Solid State Relay – Crydom, Model: KT-50E, 12–30V DC – 1 Set
4. Color Mark Sensor – BDL, Model: GS2110-WTBD-N – 1 Set
5. Power Switch – Weinview (Taiwan), Model: XBPE4025C – 2 Sets
